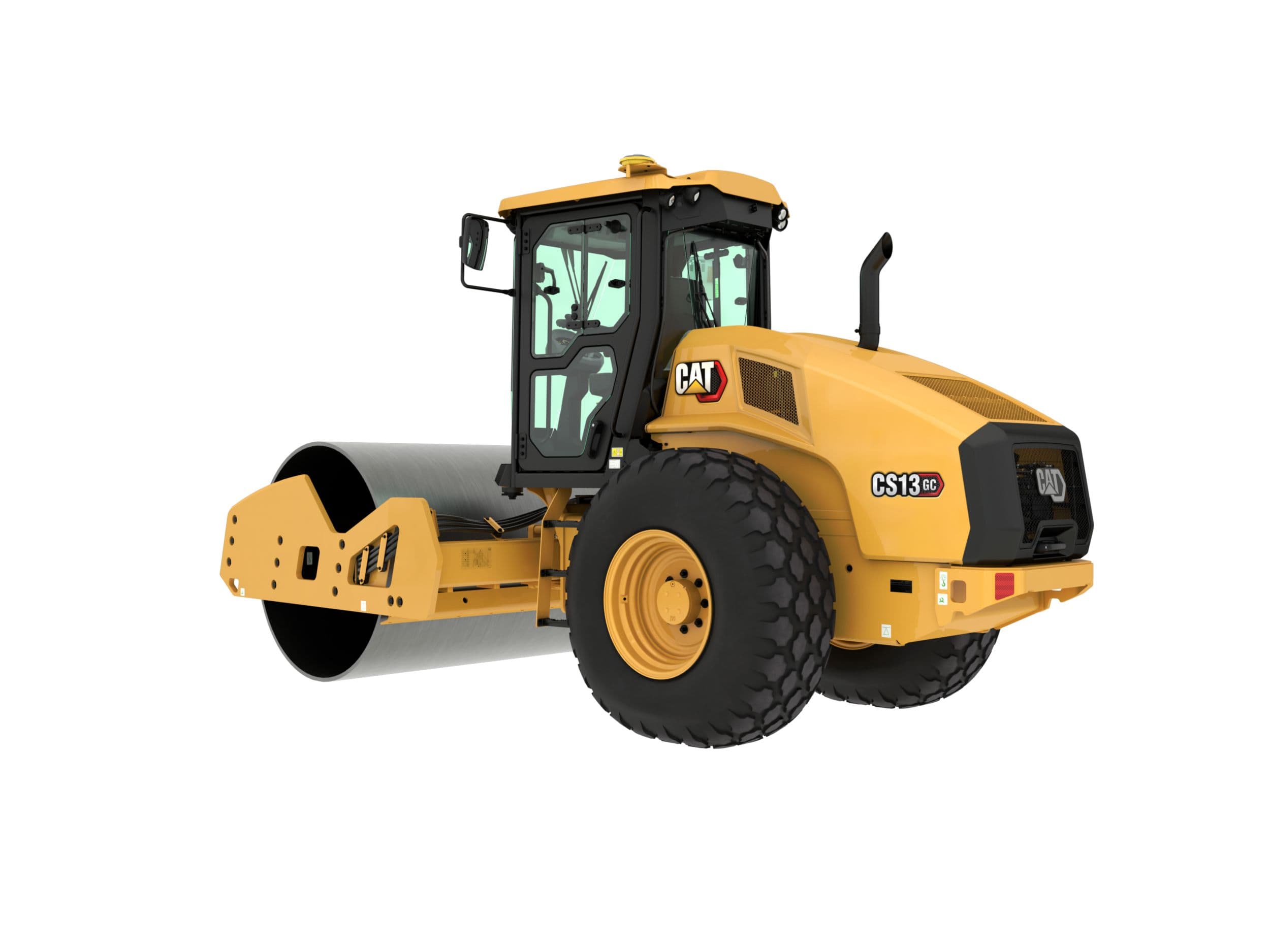

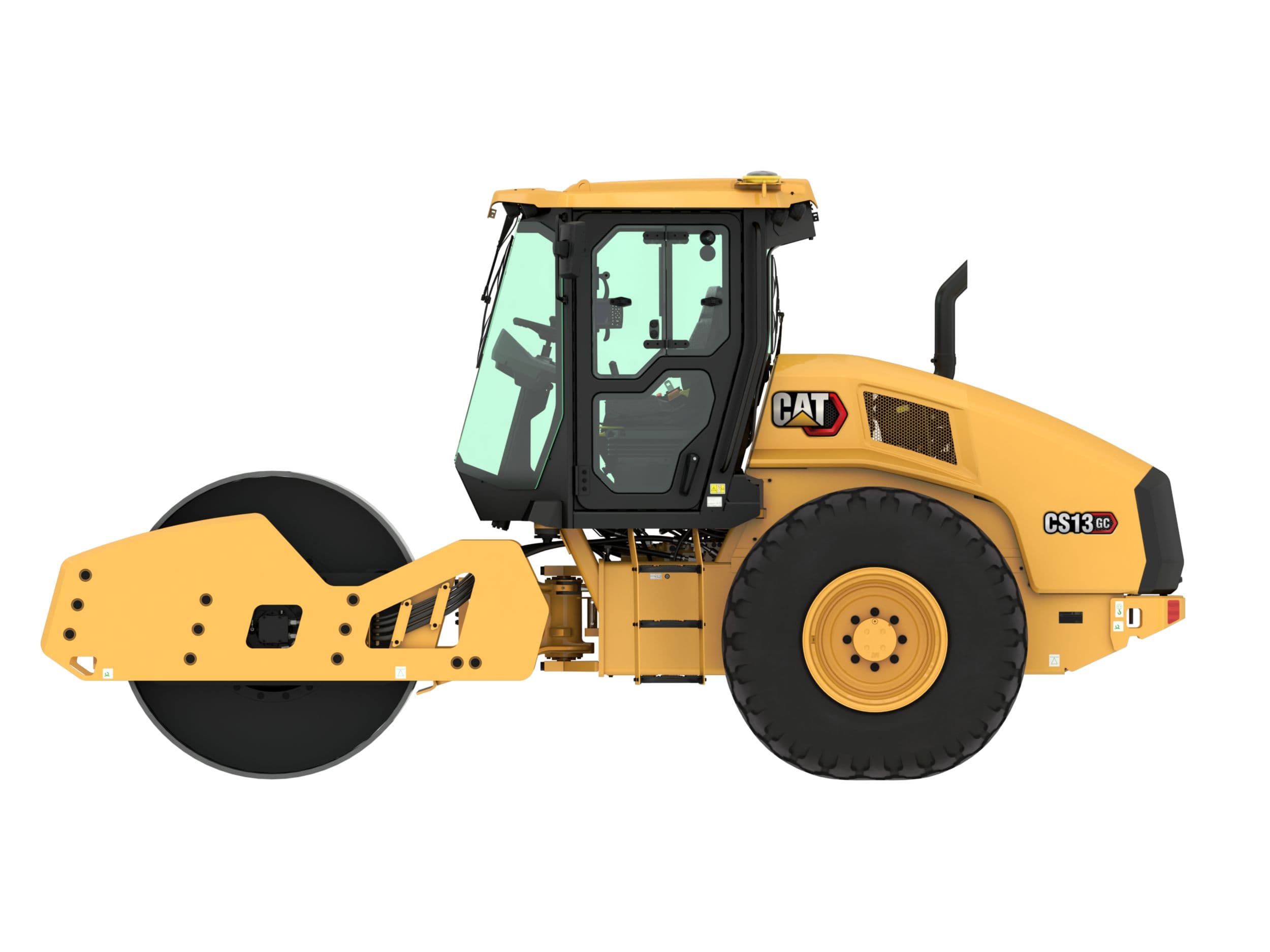

CS13 GC Vibratory Soil Compactor

Caterpillar

CS13 GC Vibratory Soil Compactor

رقم القطعة: CAT-119770

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

CS13 GC Vibratory Soil Compactor

المواصفات

Engine ModelCat® C3.6
Net Power - SAE J1349:201182.9 kW
Bore98 mm
Stroke120 mm
Note (1)Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning.
Cooling System18.5 l
DEF Tank19 l
ModelCS13 GC
Product Pagehttps://www.cat.com/en_US/products/new/equipment/compactors/vibratory-soil-compactors/119770.html
Caterpillar CategoryVibratory Soil Compactors
Caterpillar Category PathProducts > Equipment > Compactors > Vibratory Soil Compactors > CS13 GC
Caterpillar Product Familyequipment
Caterpillar Product Page ID119770
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20240325-adcef-1e9ba
Fuel Tank Capacity213 l
Gross Power91.7 kW
EmissionsU.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
Engine Oil - With Filter11.6 l
Recyclability95%
Hydraulic Tank23 l
Ground Clearance518 mm
Net Power - ISO 924983.7 kW
Engine Power - ISO 1439690 kW
Engine — Note (1)Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Wheel Base3 m
Maximum Height3.03 m
Overall Length5.7 m
Overall Width2.3 m
Drum Diameter1535 mm
Operating Weight - With Cab12655 kg
Weight - Drum with Cab7734 kg
Operating Weight - With ROPS/FOPS Canopy12501 kg
Compaction Width2134 mm
Weight - Drum with ROPS/FOPS Canopy7691 kg
Curb Clearance492 mm
Turning Radius - Inside Drum Edge3.9 m
Travel Speed - Maximum11 km/h
Nominal Amplitude - High2 mm
Eccentric Weight Housings (combined)26 l
Nominal Amplitude - Low1 mm
Axle and Final Drives10 l
Centrifugal Force - Maximum250 kN
Centrifugal Force - Minimum149 kN
Static Linear Load - With Cab36.2 kg/cm
Static Linear Load - With ROPS/FOPS Canopy36 kg/cm
