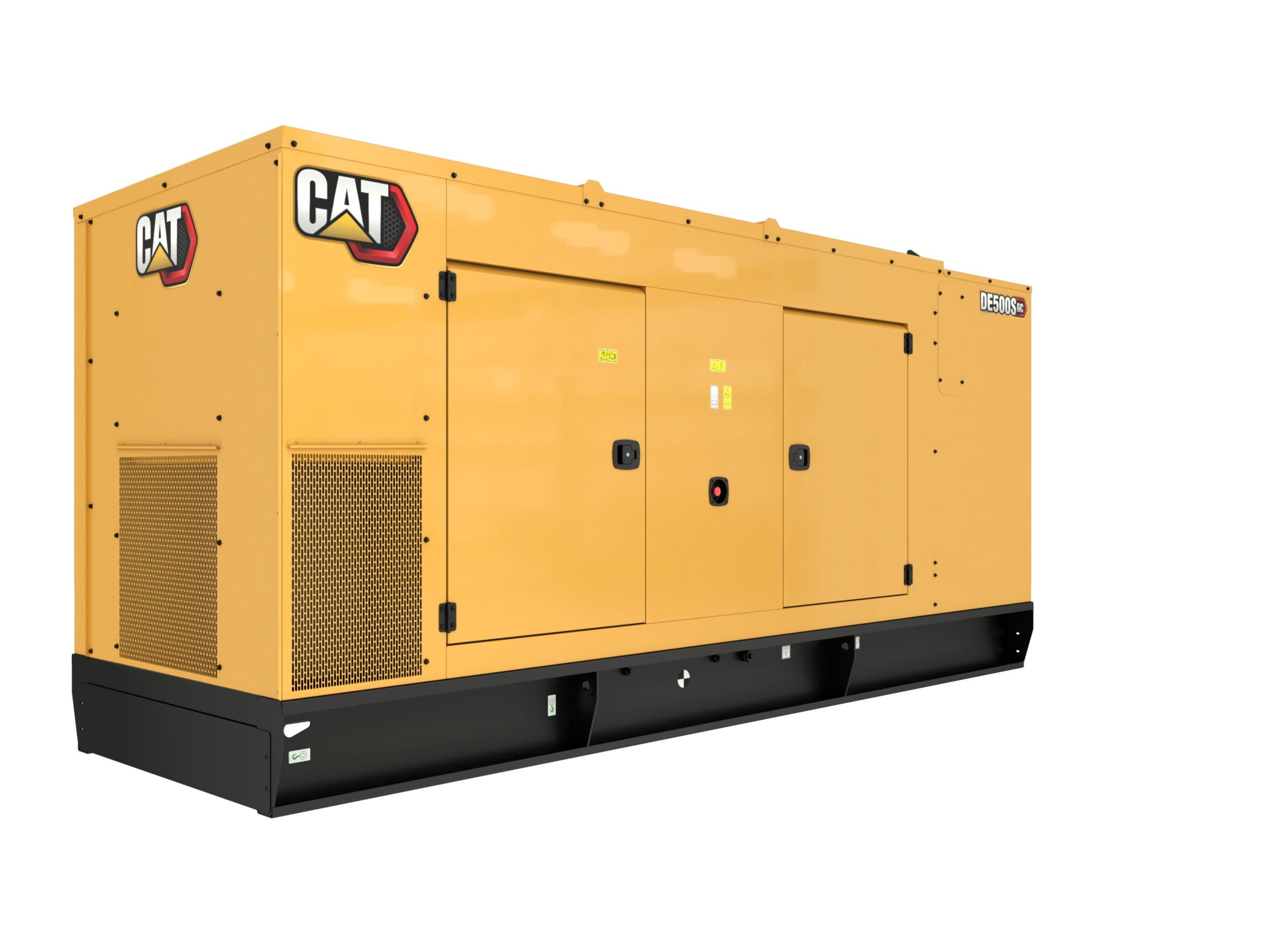

DE500S GC (60 Hz) Generator Set

Caterpillar

DE500S GC (60 Hz) Generator Set

رقم القطعة: CAT-110142

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

DE500S GC (60 Hz) Generator Set

المواصفات

Engine ModelC13 In-line 6, 4-cycle diesel
Bore130 mm
Stroke157 mm
Displacement12.5 l
ModelDE500S GC (60 Hz)
Product Pagehttps://www.cat.com/en_US/products/new/power-systems/electric-power/diesel-generator-sets/110142.html
Caterpillar CategoryDiesel Generator Sets
Caterpillar Category PathProducts > Power Systems > Electric Power > Diesel Generator Sets > DE500S GC (60 Hz)
Caterpillar Product Familypower-systems
Caterpillar Product Page ID110142
AspirationTurbocharged Air-to-Air Aftercooled
Voltage220 to 480 Volts
Frequency60 Hz
Speed1800 RPM
Fuel SystemEUI
Standby Rating500 ekW
Emissions/Fuel StrategyLow BSFC
Duty CycleStandby
Compression Ratio15.8:1
Governor TypeAdem™A4
Length - Maximum3100 mm
Width - Maximum1338 mm
Height - Maximum2168 mm
Dry Weight - Genset (maximum)3036 kg
