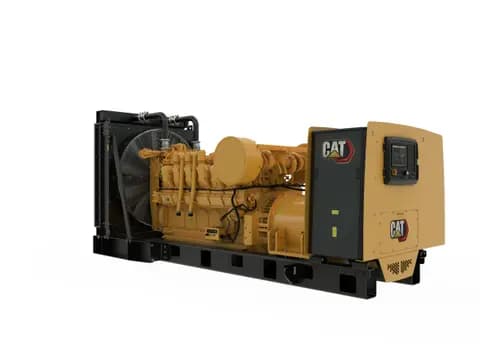

3512B Diesel Generator Set

Caterpillar

3512B Diesel Generator Set

رقم القطعة: CAT-15969797

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

3512B Diesel Generator Set

المواصفات

Engine Model3512B TA, V-12, 4-Stroke Water-Cooled Diesel
Bore170 mm
Stroke190 mm
Displacement3161.03 l
Model3512B (60 Hz) 1500 kW with Upgradeable Package
Product Pagehttps://www.cat.com/en_US/products/new/power-systems/electric-power/diesel-generator-sets/15969797.html
Caterpillar CategoryDiesel Generator Sets
Caterpillar Category PathProducts > Power Systems > Electric Power > Diesel Generator Sets > 3512B (60 Hz) 1500 kW with Upgradeable Package
Caterpillar Product Familypower-systems
Caterpillar Product Page ID15969797
AspirationTA
Voltage380 to 480 Volts
Frequency60 Hz
Speed1800 rpm
Fuel SystemElectronic Unit Injection
Standby Rating1500/1400 kW
Prime Power Rating1360/1275 kW
Emissions/Fuel StrategyLow Fuel, Low Emissions
Duty CycleStandby, Mission Critical, Prime, Continuous
Compression Ratio14.0:1 Std 15.5:1 HD
Governor TypeADEM™ A3
Length - Maximum5279 mm
Width - Maximum2286 mm
Height - Maximum2409 mm
Dry Weight - Genset (maximum)11321 kg
Dry Weight - Genset (minimum)11021 kg
Maximum Rating1500 kW
Minimum Rating1230 kW
