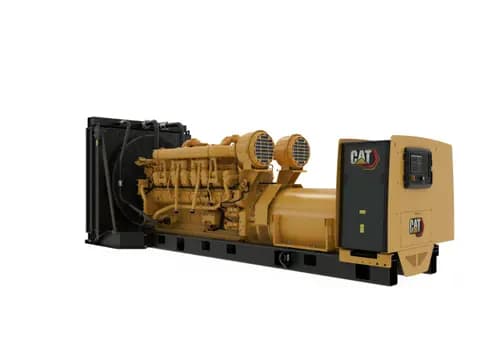

3516B (50 Hz) Generator Set

Caterpillar

3516B (50 Hz) Generator Set

رقم القطعة: CAT-1000028973

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

3516B (50 Hz) Generator Set

المواصفات

Engine Model3516B TA, V-16, 4-Stroke Water-Cooled Diesel
Bore170 mm
Stroke215 mm
Displacement78.08 l
Model3516B (50 Hz)
Product Pagehttps://www.cat.com/en_US/products/new/power-systems/electric-power/diesel-generator-sets/1000028973.html
Caterpillar CategoryDiesel Generator Sets
Caterpillar Category PathProducts > Power Systems > Electric Power > Diesel Generator Sets > 3516B (50 Hz)
Caterpillar Product Familypower-systems
Caterpillar Product Page ID1000028973
AspirationTA
Voltage380 to 11000 Volts
Frequency50 Hz
Speed1500 rpm
Fuel SystemElectronic unit injection
Standby Rating2500 kVA
Prime Power Rating2275 kVA
Emissions/Fuel StrategyLow Fuel, Low Emissions
Duty CycleStandby, Mission Critical, Prime, Continuous
Compression Ratio15.5:1
Governor TypeAdem™3
Length - Maximum6435 mm
Width - Maximum2286 mm
Height - Maximum2494 mm
Dry Weight - Genset (maximum)14973 kg
Width - Minimum2286 mm
Height - Minimum2494 mm
Dry Weight - Genset (minimum)14973 kg
Length - Minimum6435 mm
Maximum Rating2500 kVA
Minimum Rating2000 kVA
