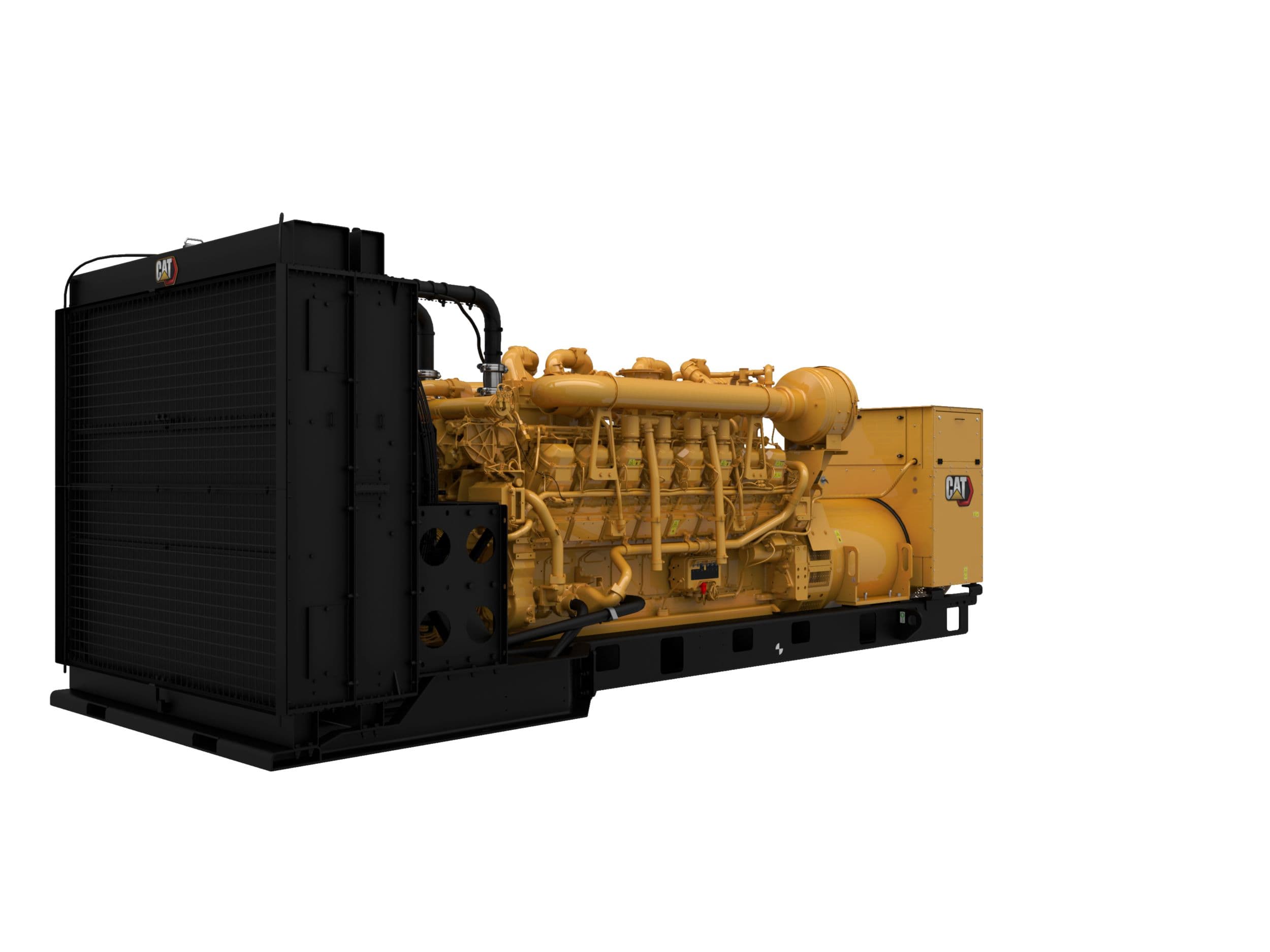

3516B Generator Set

Caterpillar

3516B Generator Set

رقم القطعة: CAT-15969815

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

3516B Generator Set

المواصفات

Engine Model3516B TA, V-16, 4-Stroke Water-Cooled Diesel
Bore170 mm
Stroke190 mm
Displacement69 l
Model3516B DGB™ (50 Hz)
Product Pagehttps://www.cat.com/en_US/products/new/power-systems/electric-power/diesel-generator-sets/15969815.html
Caterpillar CategoryDiesel Generator Sets
Caterpillar Category PathProducts > Power Systems > Electric Power > Diesel Generator Sets > 3516B DGB™ (50 Hz)
Caterpillar Product Familypower-systems
Caterpillar Product Page ID15969815
AspirationTA
Voltage380 to 11000 Volts
Frequency50 Hz
Speed1500 rpm
Fuel SystemElectronic unit injection
Prime Power Rating2275/2000 kVA
Emissions/Fuel StrategyLow Fuel Consumption
Duty CyclePrime, Continuous
Compression Ratio14.0:1 Std 15.5:1 HD
Governor TypeAdem™4
Length - Maximum7014 mm
Width - Maximum2288 mm
Height - Maximum2391 mm
Dry Weight - Genset (maximum)16490 kg
Width - Minimum2288 mm
Height - Minimum2391 mm
Dry Weight - Genset (minimum)15135 kg
Length - Minimum6814 mm
Maximum Rating2275 kVA
Minimum Rating1750 kVA
Continuous Rating2000/1750 kVA
Stroke - HD215 mm
Displacement - HD78.08 l
