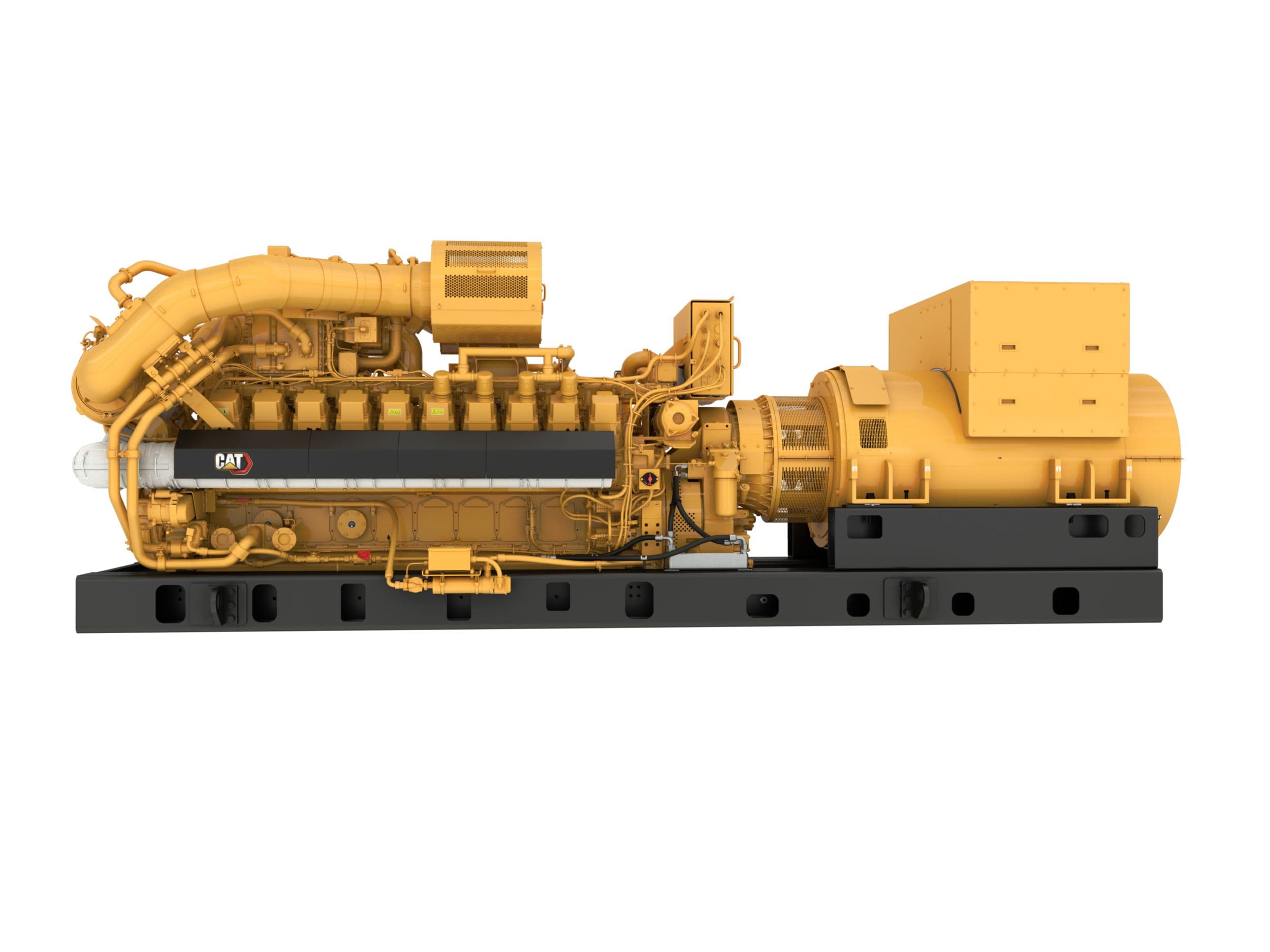

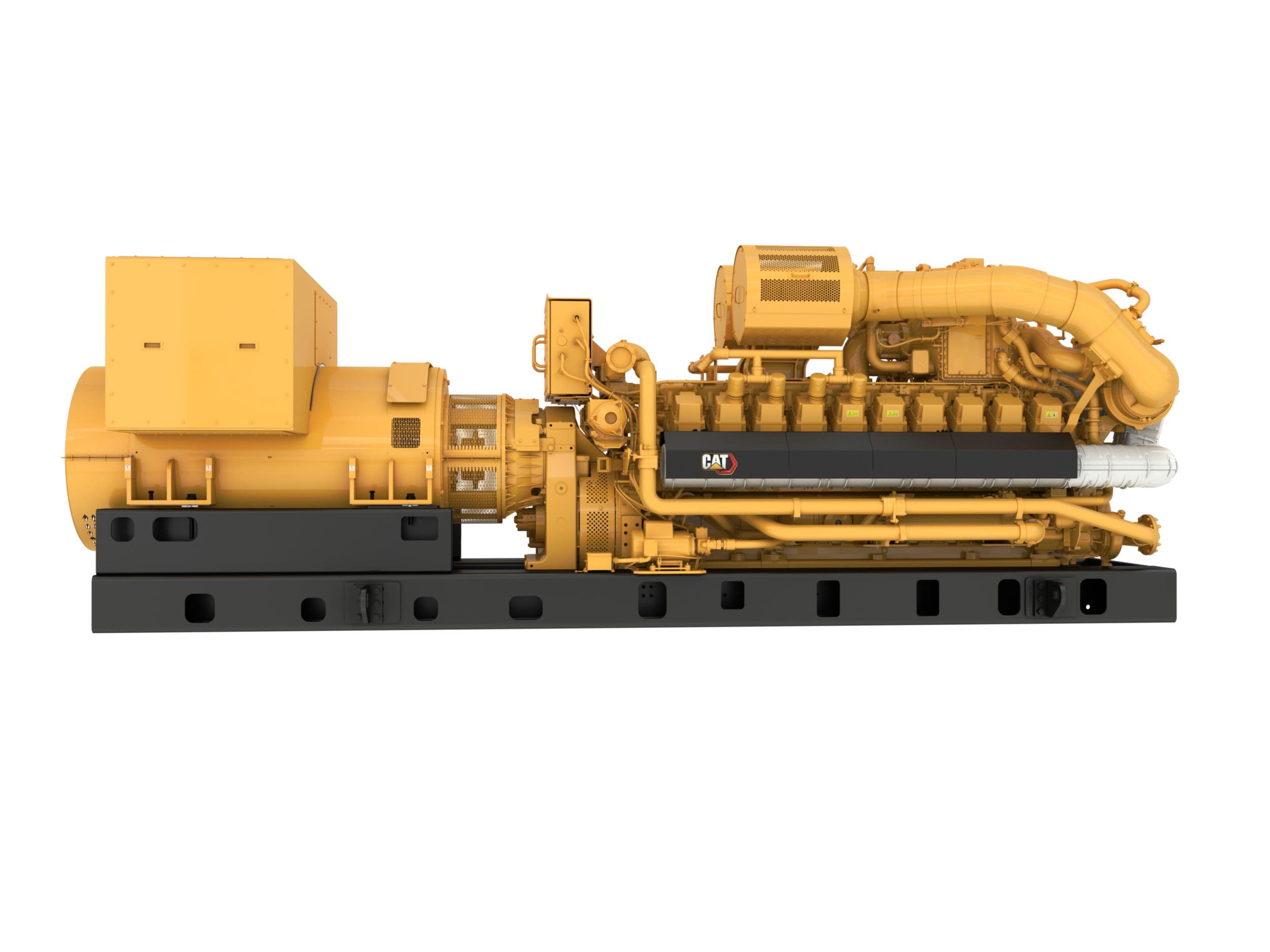

G3520 3120 kW Gas Generator Set

Caterpillar

G3520 3120 kW Gas Generator Set

رقم القطعة: CAT-130060

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

G3520 3120 kW Gas Generator Set

المواصفات

Engine ModelG3520
Bore170 mm
Stroke215 mm
Displacement97.6 l
ModelG3520 with FAST RESPONSE
Product Pagehttps://www.cat.com/en_US/products/new/power-systems/electric-power/gas-generator-sets/130060.html
Caterpillar CategoryGas Generator Sets
Caterpillar Category PathProducts > Power Systems > Electric Power > Gas Generator Sets > G3520 with FAST RESPONSE
Caterpillar Product Familypower-systems
Caterpillar Product Page ID130060
Height2509 mm
Width2188 mm
AspirationTA
Frequency50 / 60 Hz
Speed1800 RPM
Length6597 mm
Weight21974 kg
Emissions/Fuel StrategyU.S. EPA Stationary Non-Emergency Certified
Compression Ratio10.2
Fuel TypeNatural Gas, Hydrogen Blend (up to 5%)
Gas Standby Rating3120 ekW @ 1.0pf
Maximum Electrical Efficiency39.6%
RPM1800 rpm
Generator Set Specifications — Frequency50/60 Hz
Engine Specifications — Compression Ratio10.2:1
