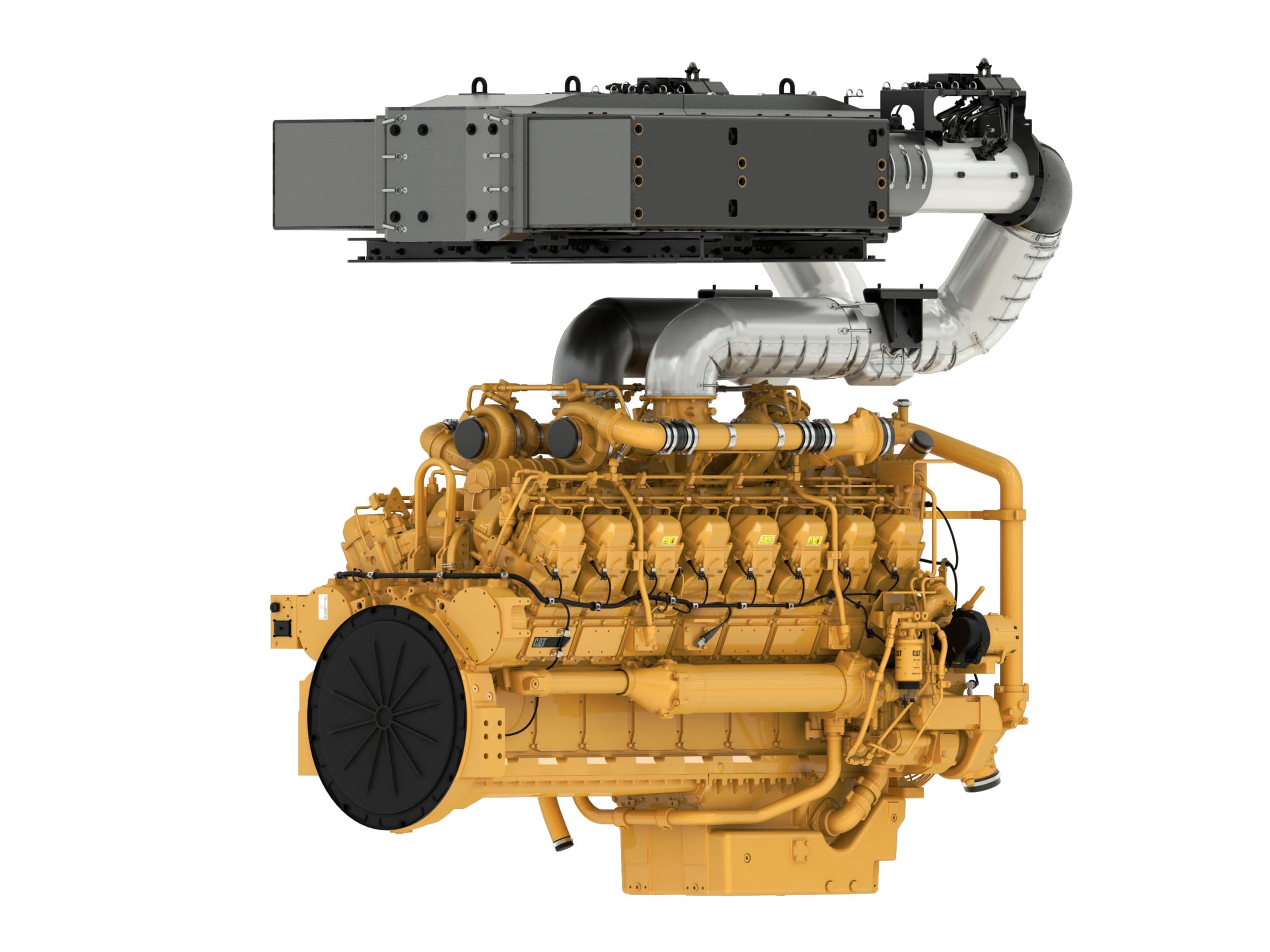

Cat® 3516E Diesel Engine

Caterpillar

Cat® 3516E Diesel Engine

رقم القطعة: CAT-101860

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Cat® 3516E Diesel Engine

المواصفات

Bore170 mm
Stroke215 mm
Displacement78 l
Model3516E
Product Pagehttps://www.cat.com/en_US/products/new/power-systems/industrial/industrial-diesel-engines/101860.html
Caterpillar CategoryIndustrial Diesel Engines
Caterpillar Category PathProducts > Power Systems > Industrial > Industrial Diesel Engines > 3516E
Caterpillar Product Familypower-systems
Caterpillar Product Page ID101860
Height2108 mm
EmissionsU.S. EPA Tier 4 Final, EU Stage V
Rated Speed1650 rpm
Width1616 mm
AspirationTurbocharged Aftercooled (TTA)
Maximum Torque11220 Nm @ 1200 rpm
Length3105 mm
Weight1079 kg
Compression Ratio16.5:1
Rotation from Flywheel EndCounterclockwise
Maximum Power1566 kW
Minimum Power1566 kW
Engine ConfigurationV-16
Combustion SystemMEUI
AftertreatmentSCR
Weight - Net Dry - Basic Operating Engine Without Optional Attachments8176 kg
Aftertreatment Dimensions — Length2350 mm
Aftertreatment Dimensions — Width2008 mm
Aftertreatment Dimensions — Height809 mm
