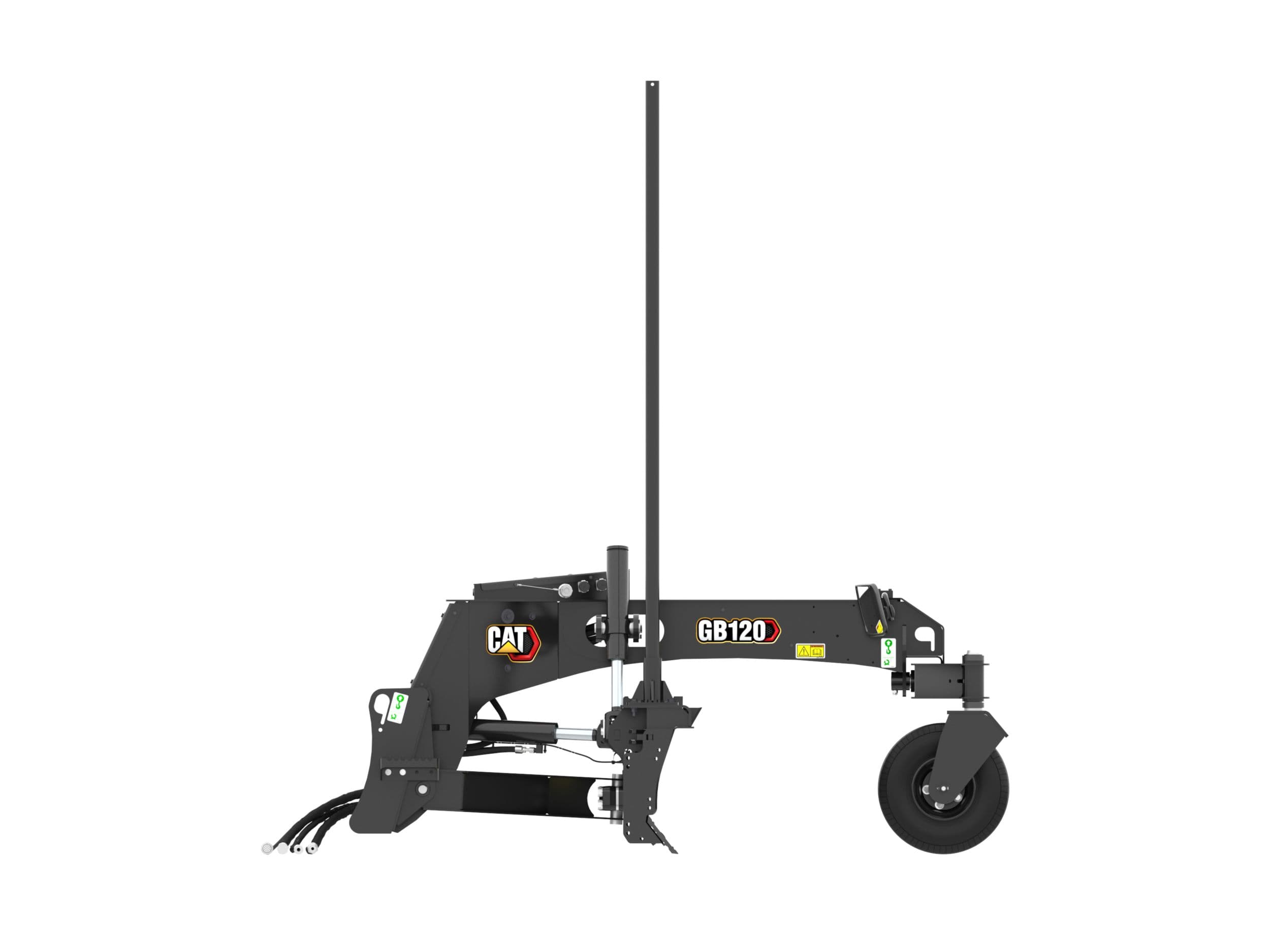

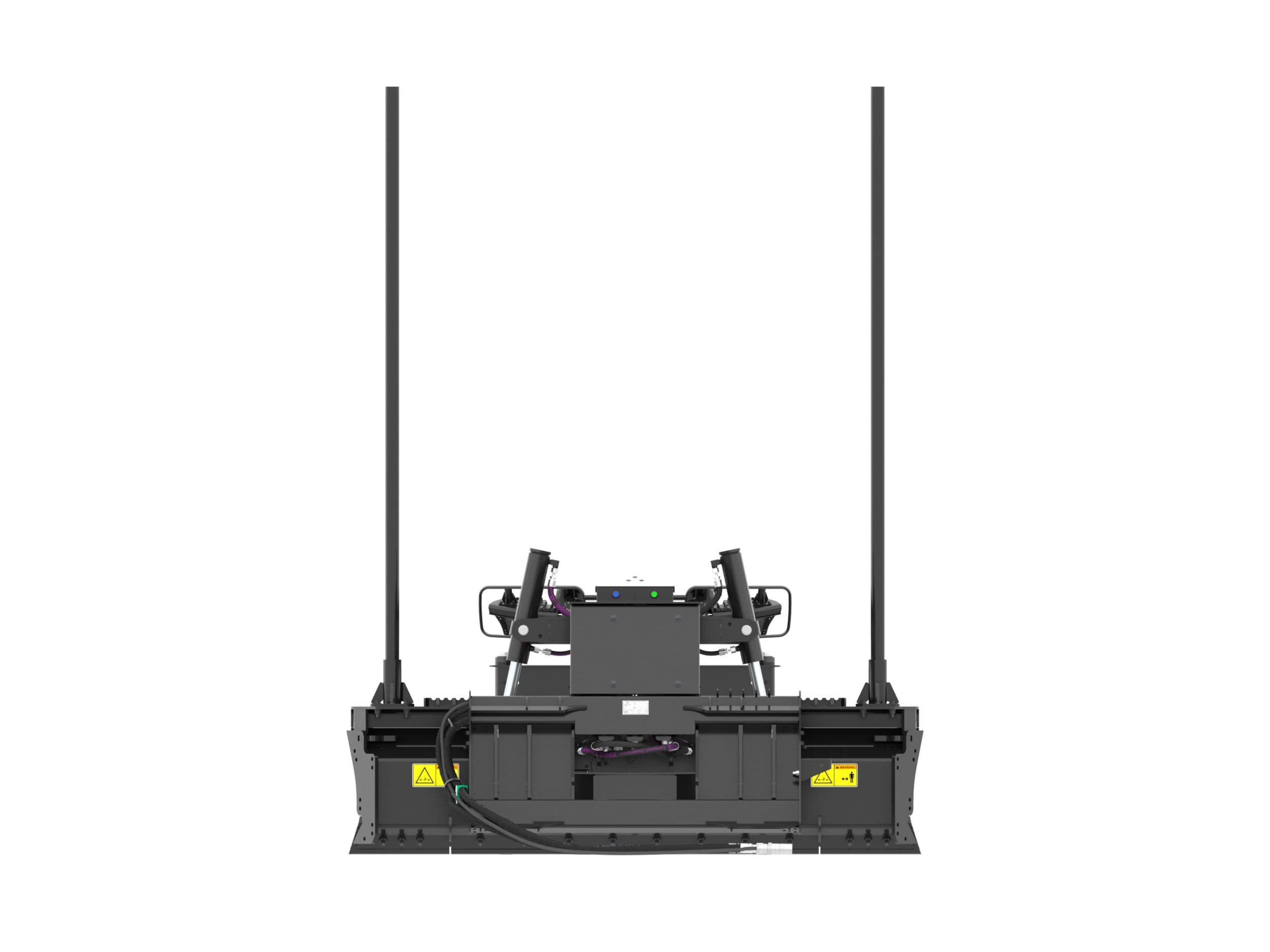

GB120 Grader Blade

Caterpillar

GB120 Grader Blade

رقم القطعة: CAT-104980

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

GB120 Grader Blade

المواصفات

ModelGB120, Smart
Product Pagehttps://www.cat.com/en_US/products/new/attachments/blades/grader-blades/104980.html
Caterpillar CategoryGrader Blades
Caterpillar Category PathProducts > Attachments > Blades > Grader Blades > GB120, Smart
Caterpillar Product Familyattachments
Caterpillar Product Page ID104980
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20210120-9dfa6-155dc
Overall Height1046 mm
Ground Clearance152 mm
Blade Width1981 mm
Blade Height431 mm
Overall Length2246 mm
Overall Width1992 mm
Weight894 kg
Interface TypeSkid Steer Coupler
Optimal Hydraulic Flow50-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure180-230 bar (2600-3340 psi)
Required HydraulicsStandard Flow
Width - Fully Angled1747 mm
Maximum Blade Angle - Right/Left of Center30 degrees
Tilt Angle Range15° Left/Right
Overall Height with Masts2652 mm
Maximum Cutting Depth102 mm
