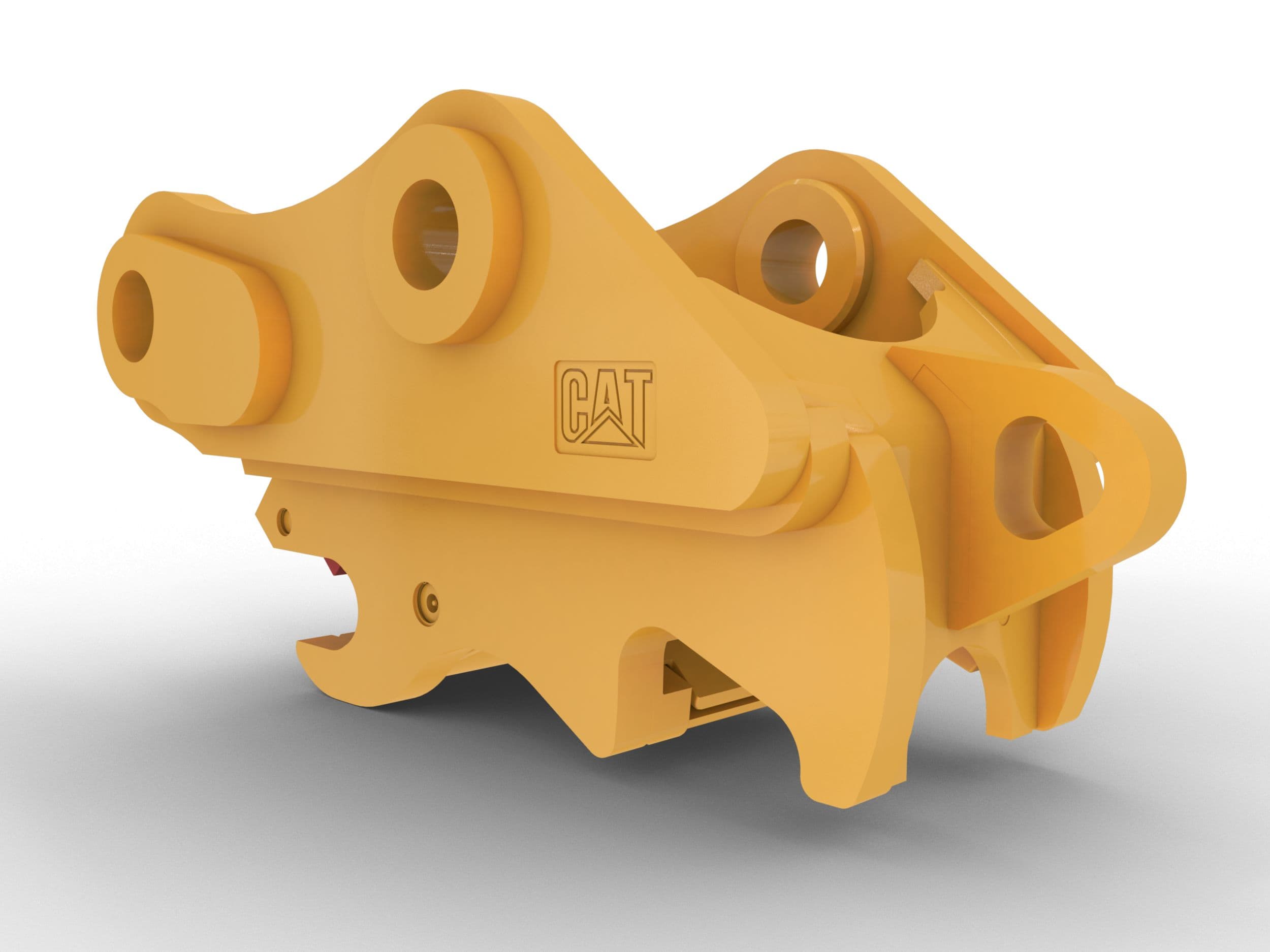

Pin Grabber Coupler - Narrow Profile (DB-Linkage): 388-9724

Caterpillar

Pin Grabber Coupler - Narrow Profile (DB-Linkage): 388-9724

رقم القطعة: CAT-18597132

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Pin Grabber Coupler - Narrow Profile (DB-Linkage): 388-9724

المواصفات

ModelPin Grabber Coupler - Narrow Profile (DB-Linkage): 388-9724
Product Pagehttps://www.cat.com/en_US/products/new/attachments/couplers-excavator/pin-grabber-couplers/18597132.html
Caterpillar CategoryPin Grabber Couplers
Caterpillar Category PathProducts > Attachments > Couplers - Excavator > Pin Grabber Couplers > Pin Grabber Coupler - Narrow Profile (DB-Linkage) 388-9724
Caterpillar Product Familyattachments
Caterpillar Product Page ID18597132
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20200406-545a7-29b1b
Weight624 kg
Minimum Carrier Weight30 ton (US)
Maximum Carrier Weight40 ton (US)
Attachment Pin Diameter - Stick (Front)100 mm
Attachment Pin Diameter - Link (Rear)90 mm
Pin Spread - Minimum479 mm
Pin Spread - Maximum593 mm
Lifting Eye Working Load Limit14000 kg
Width - Machine Interface590 mm
Width - Attachment Interface340 mm
