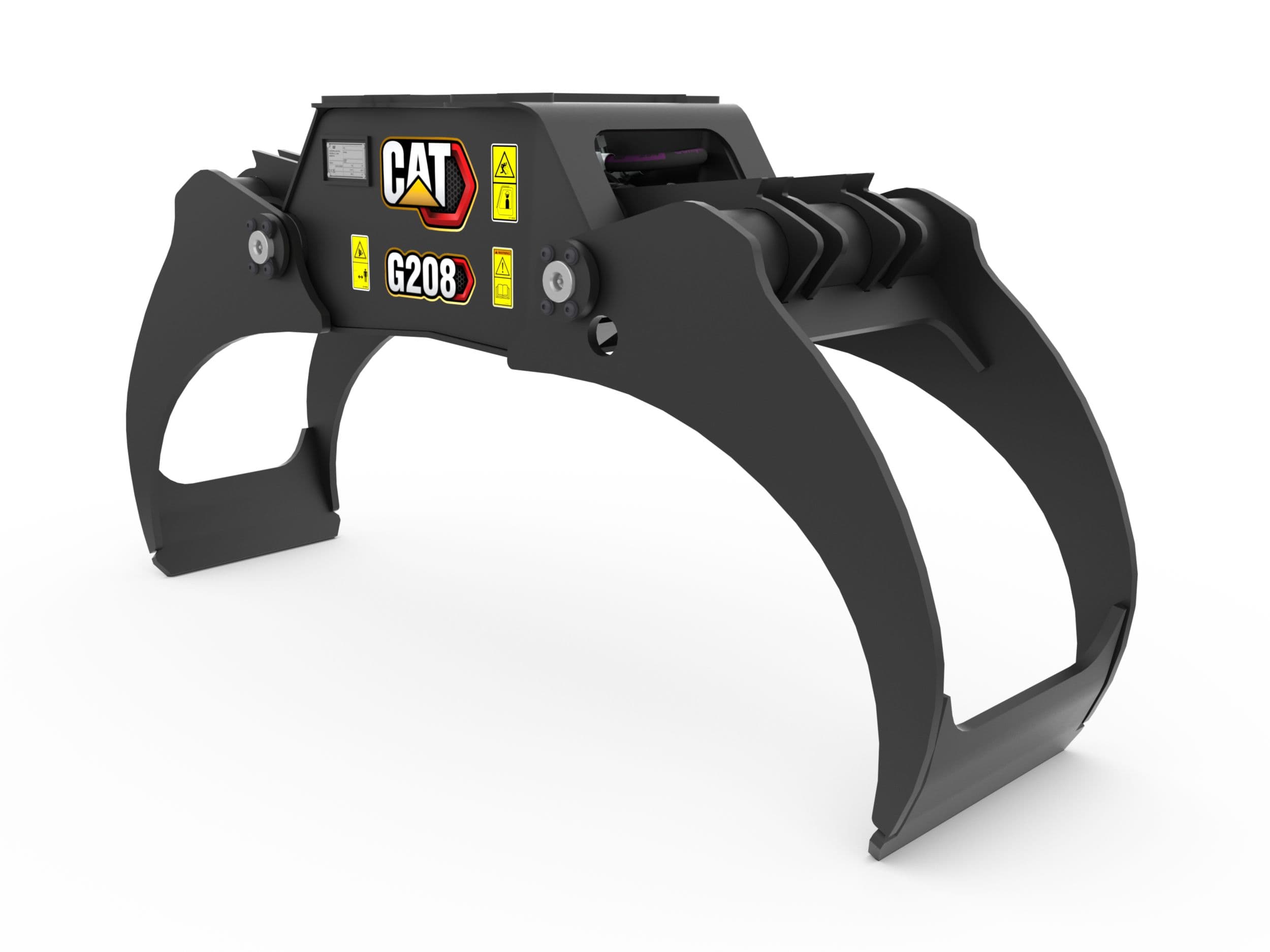

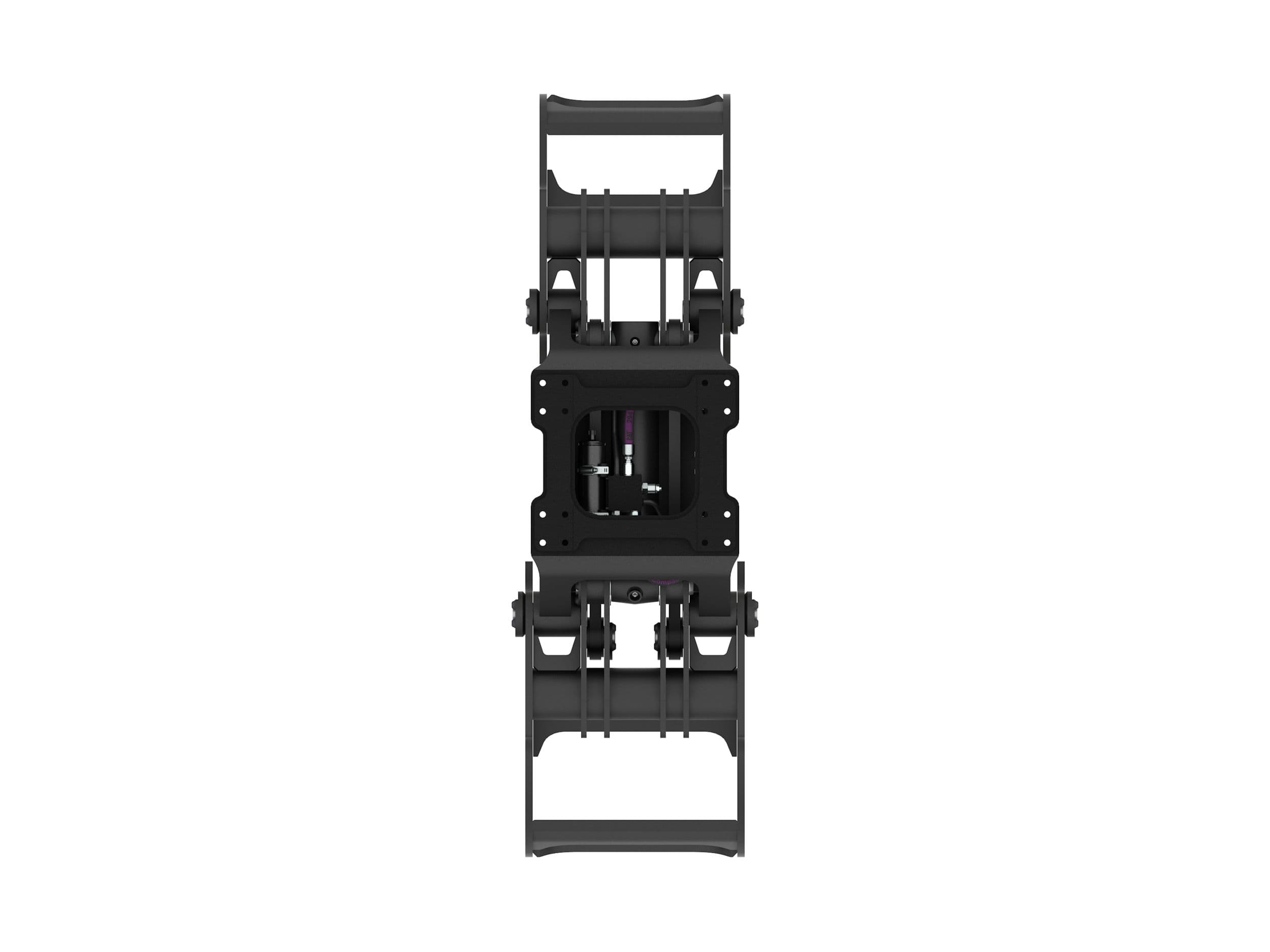

G208 Multi-Purpose Grapple

Caterpillar

G208 Multi-Purpose Grapple

رقم القطعة: CAT-120060

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

G208 Multi-Purpose Grapple

المواصفات

ModelG208
Product Pagehttps://www.cat.com/en_US/products/new/attachments/grapples/multi-purpose-grapples/120060.html
Caterpillar CategoryMulti-Purpose Grapples
Caterpillar Category PathProducts > Attachments > Grapples > Multi-Purpose Grapples > G208
Caterpillar Product Familyattachments
Caterpillar Product Page ID120060
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20240205-03f32-5bef9
Weight281 kg
Interface TypeTool Interface
Required HydraulicsTiltrotator Auxiliary
Overall Depth540 mm
Machine Class7-10 Ton Mini Excavators
Wear Plate Thickness16 mm
Grapple Area0.26 m²
Overall Width (Jaws Open)1673 mm
Overall Width (Jaws Closed)903 mm
Overall Height (Jaws Open)842 mm
Overall Height (Jaws Closed)591 mm
Maximum Jaw Opening1500 mm
Edge MaterialAR500/HB500
Maximum Closing Force18.4 kN
Minimum Grip Diameter100 mm
Arm Depth (Outer)480 mm
Arm Depth (Inner)418 mm
Maximum Load Rating4800 kg
