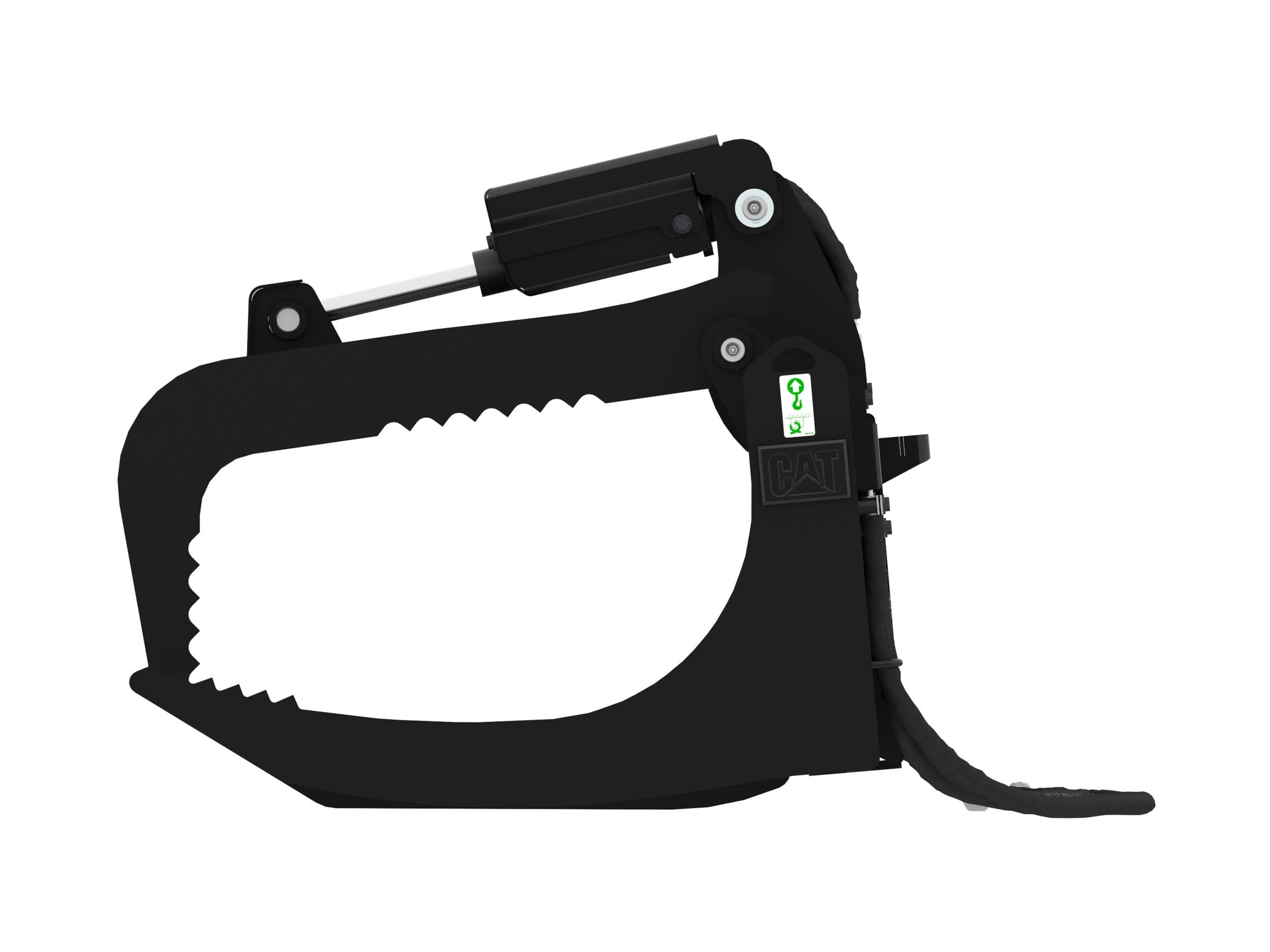

1829 mm (72 in) Curved Tine Industrial Grapple Rake
رقم القطعة: CAT-125840
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
1829 mm (72 in) Curved Tine Industrial Grapple Rake
المواصفات
| Model | 1829 mm (72 in) Curved Tine |
|---|---|
| Product Page | https://www.cat.com/en_US/products/new/attachments/rakes/industrial-grapple-rakes/125840.html |
| Caterpillar Category | Industrial Grapple Rakes |
| Caterpillar Category Path | Products > Attachments > Rakes > Industrial Grapple Rakes > 1829 mm (72 in) Curved Tine |
| Caterpillar Product Family | attachments |
| Caterpillar Product Page ID | 125840 |
| Height | 872 mm |
| Width | 1829 mm |
| Length | 1048 mm |
| Weight | 501.8 kg |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) |
| Required Hydraulics | Standard Flow |
| Number of Tines | 9 |
| Maximum Grapple Opening | 1089 mm |
| Minimum Grapple Opening | 393 mm |
