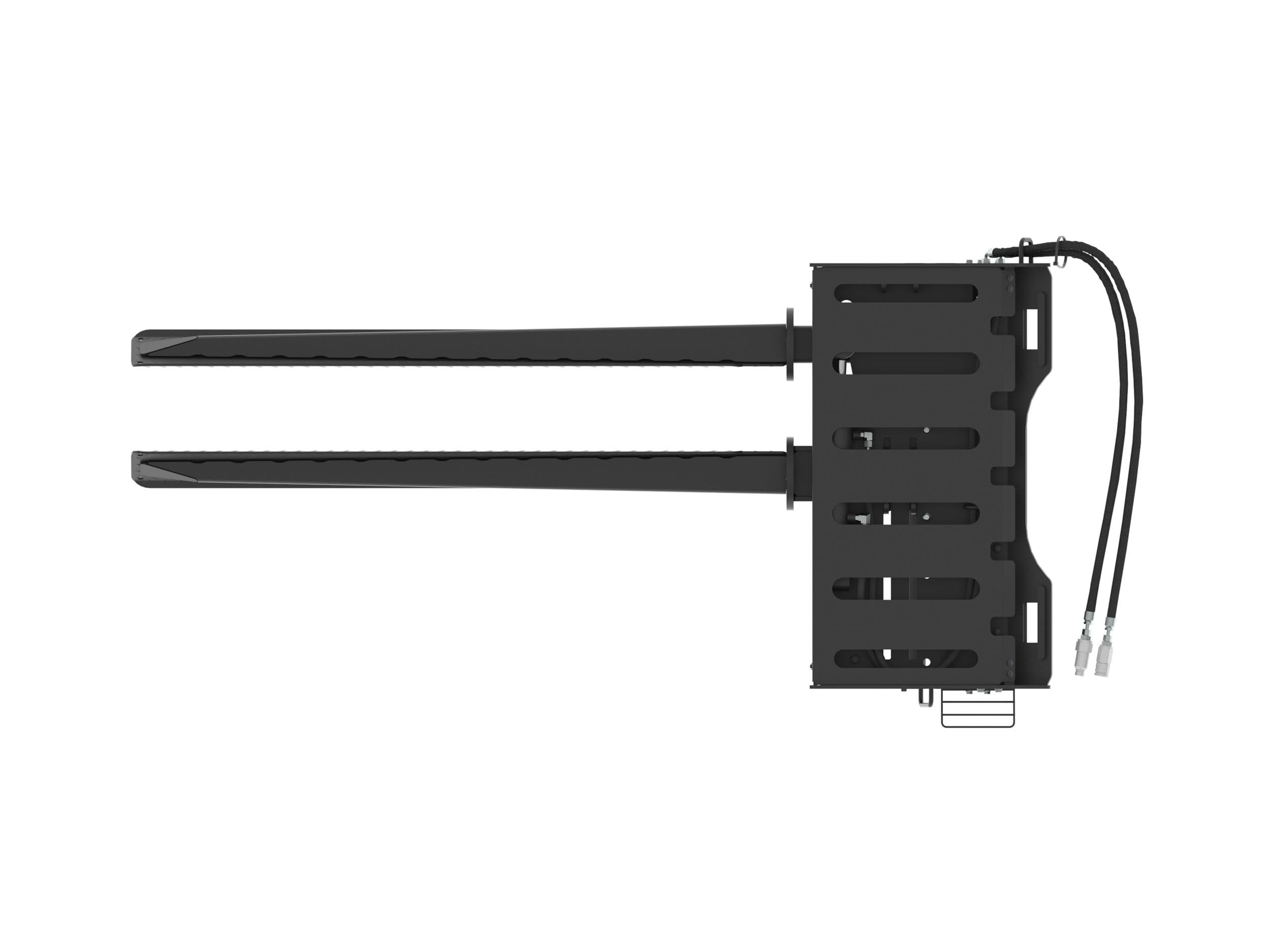

Manual Nursery Fork with Fixed Adjustments

Caterpillar

Manual Nursery Fork with Fixed Adjustments

رقم القطعة: CAT-117920

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Manual Nursery Fork with Fixed Adjustments

المواصفات

ModelManual Nursery Fork
Product Pagehttps://www.cat.com/en_US/products/new/attachments/nursery-products/nursery-forks/117920.html
Caterpillar CategoryNursery Forks
Caterpillar Category PathProducts > Attachments > Nursery Products > Nursery Forks > Manual Nursery Fork
Caterpillar Product Familyattachments
Caterpillar Product Page ID117920
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20221011-a59e1-4bac8
Overall Height1427 mm
Overall Length2491 mm
Overall Width1327 mm
Weight342 kg
Interface TypeSkid Steer Coupler
Optimal Hydraulic Flow49-87 lpm (12-23 gpm)
Optimal Hydraulic Pressure170-241 bar (2500-3500 psi)
Required HydraulicsStandard Flow
Usable Tine Length1788 mm
Number of Adjustments6
Length Between Adjustments79 mm (3.1 in)
Total Tine Movement393 mm
Angled Tine Opening Minimum at Tip48.1 mm
Angled Tine Opening Maximum at Tip1196 mm
Parallel Tine Opening Minimum225 mm
Maximum Root Ball Diameter1372 mm
Parallel Tine Opening Maximum617 mm
Maximum Lifting Capacity1361 kg
