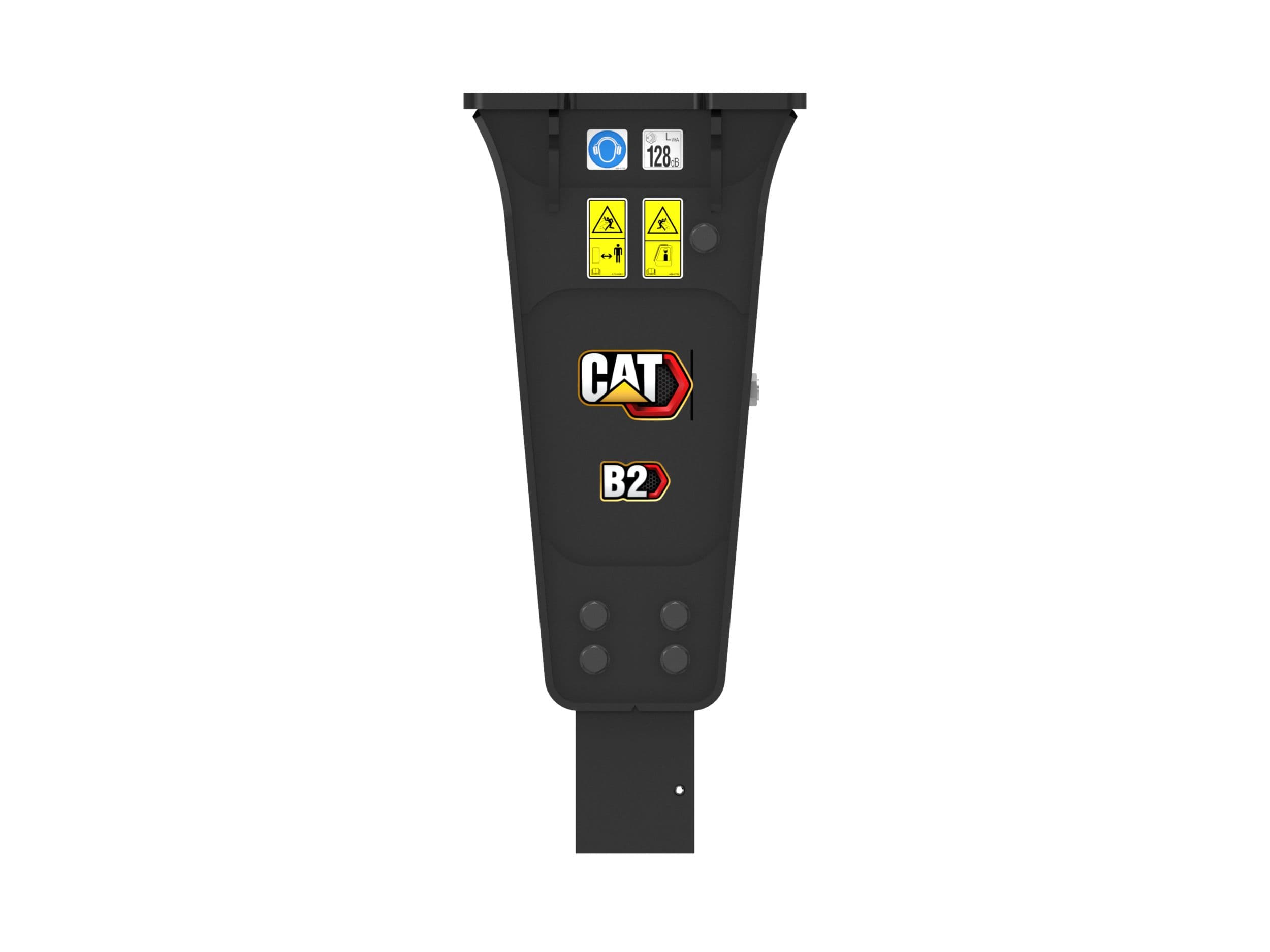

B2 Non-Sillenced Hydraulic Hammer

Caterpillar

B2 Non-Sillenced Hydraulic Hammer

رقم القطعة: CAT-15970430

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

B2 Non-Sillenced Hydraulic Hammer

المواصفات

ModelB2
Product Pagehttps://www.cat.com/en_US/products/new/attachments/hammers/hammers/15970430.html
Caterpillar CategoryHammers
Caterpillar Category PathProducts > Attachments > Hammers > Hammers > B2
Caterpillar Product Familyattachments
Caterpillar Product Page ID15970430
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20221003-23ae9-5b50e
Overall Height1080 mm
Overall Length340 mm
Overall Width300 mm
Optimal Hydraulic Flow20-30 lpm (5.3-7.9 gpm)
Machine Class1-3 Ton Mini Excavators
Impact Frequency700-1200 bpm
Minimum Operating Pressure8798 kPa
Minimum Carrier Weight1497 kg
Operating Weight - With Tool114.7 kg
Tool Shaft Diameter45 mm
Energy Class290 J
Height - Without Tool754 mm
Sound Level128 dB
Mounting Bracket SizeSmall-Medium
