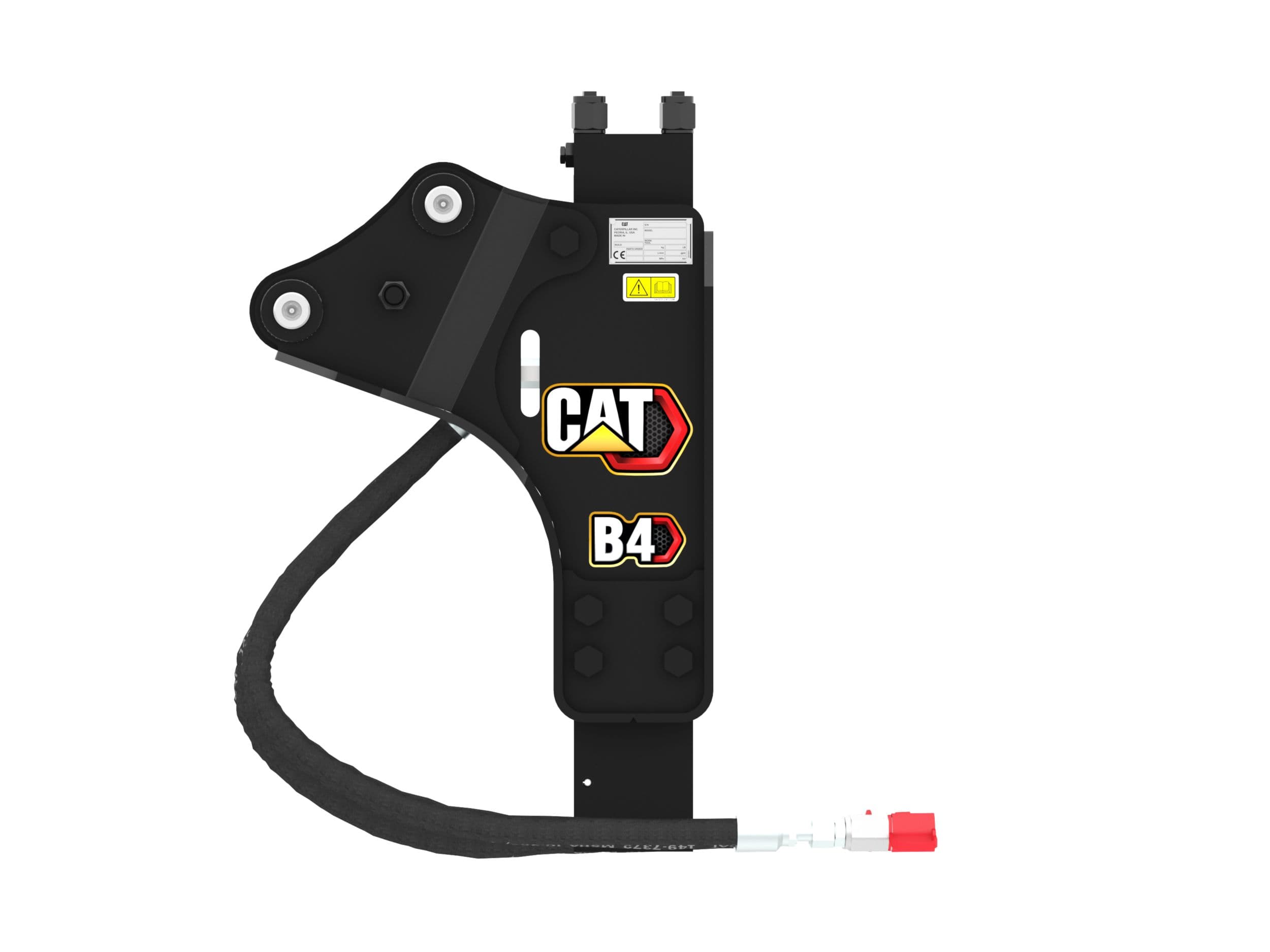

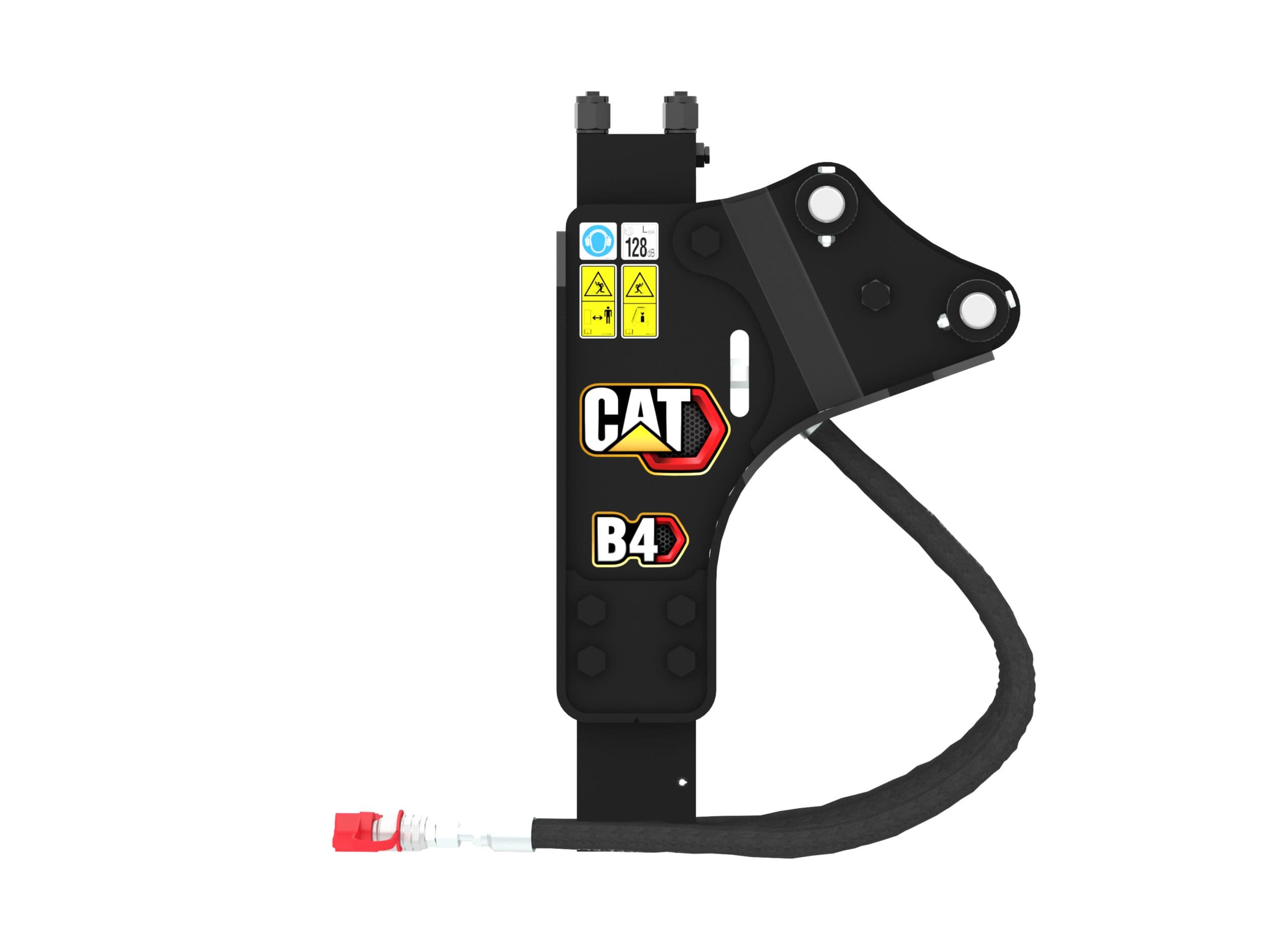

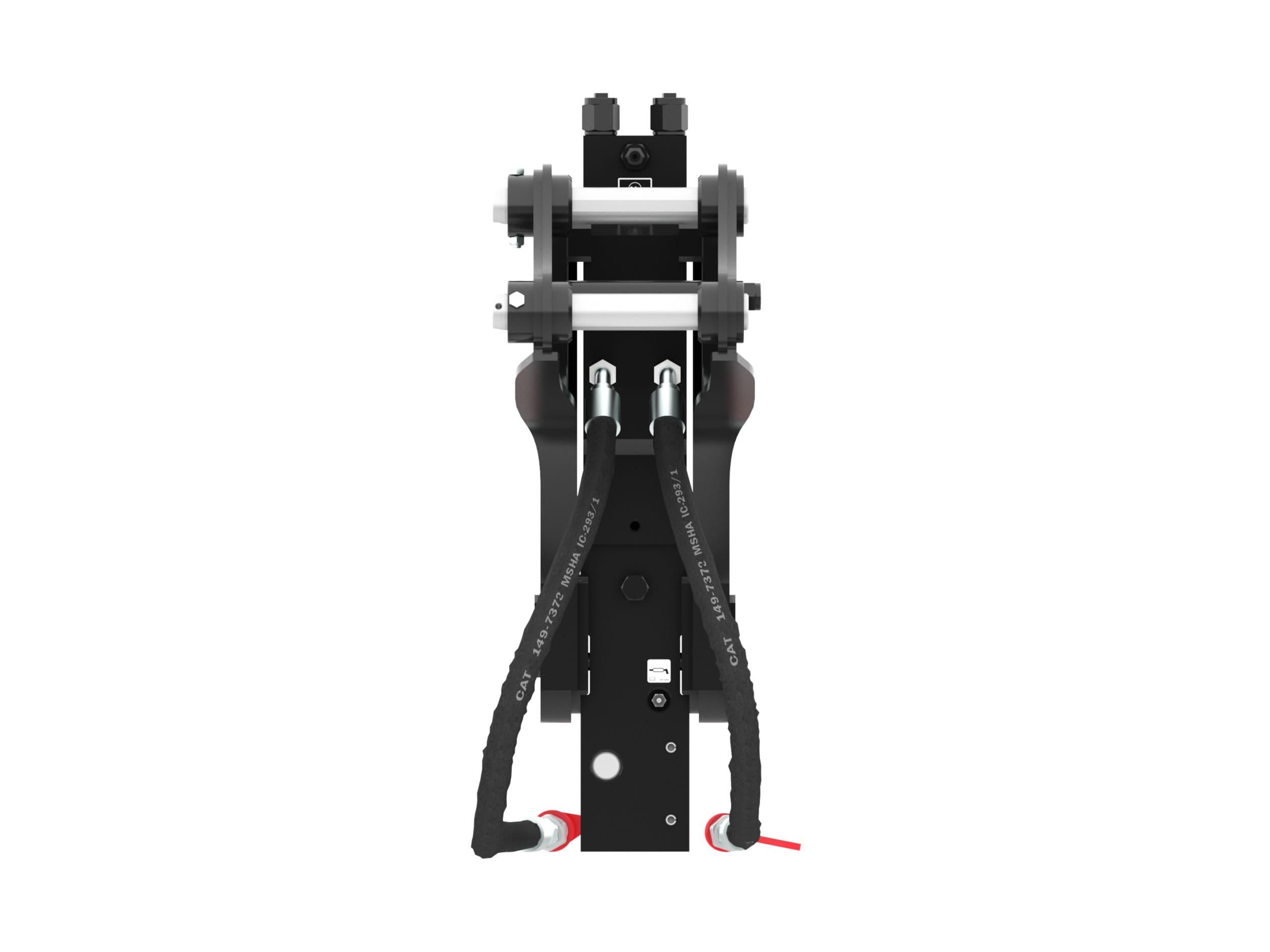

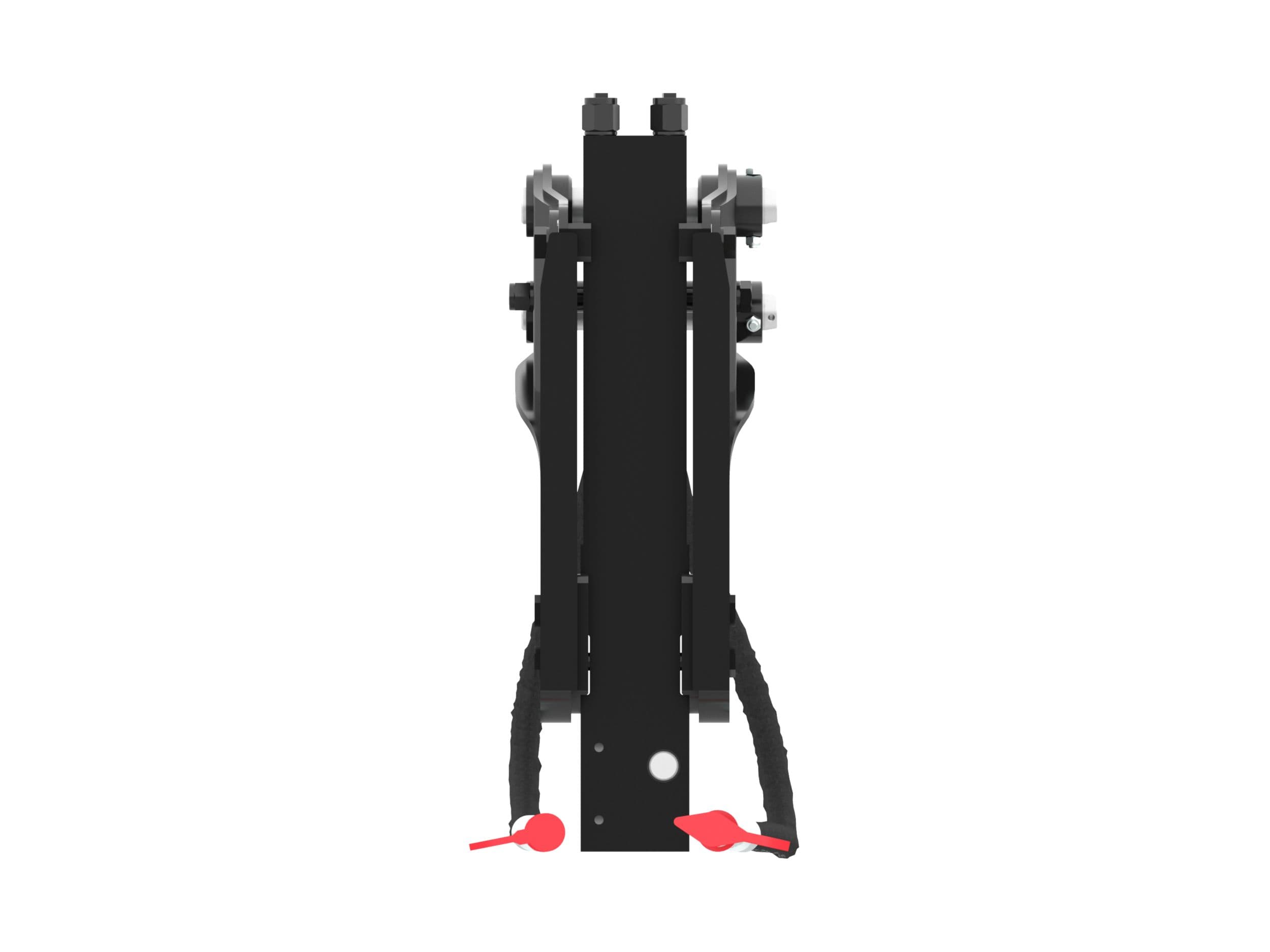

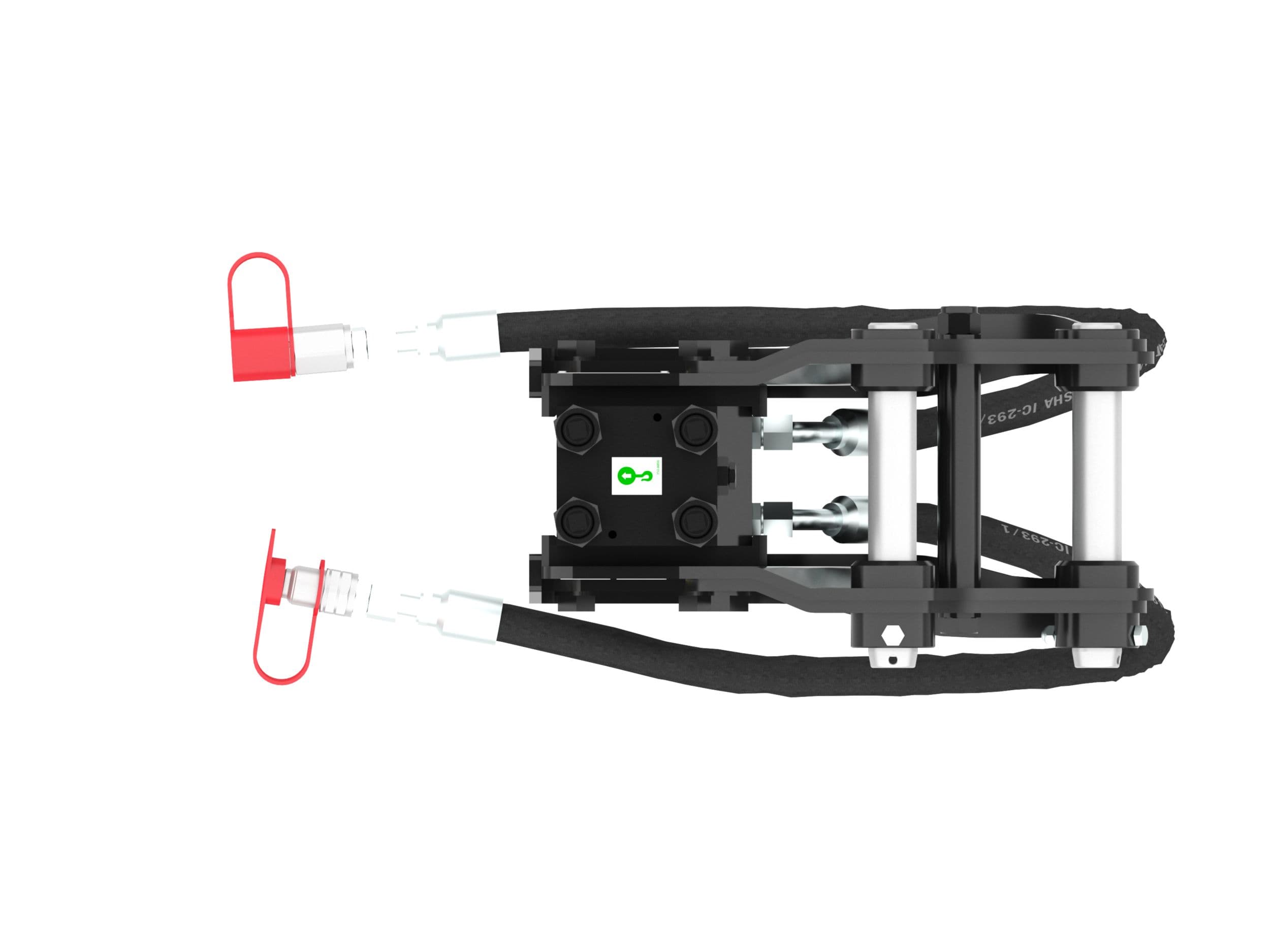

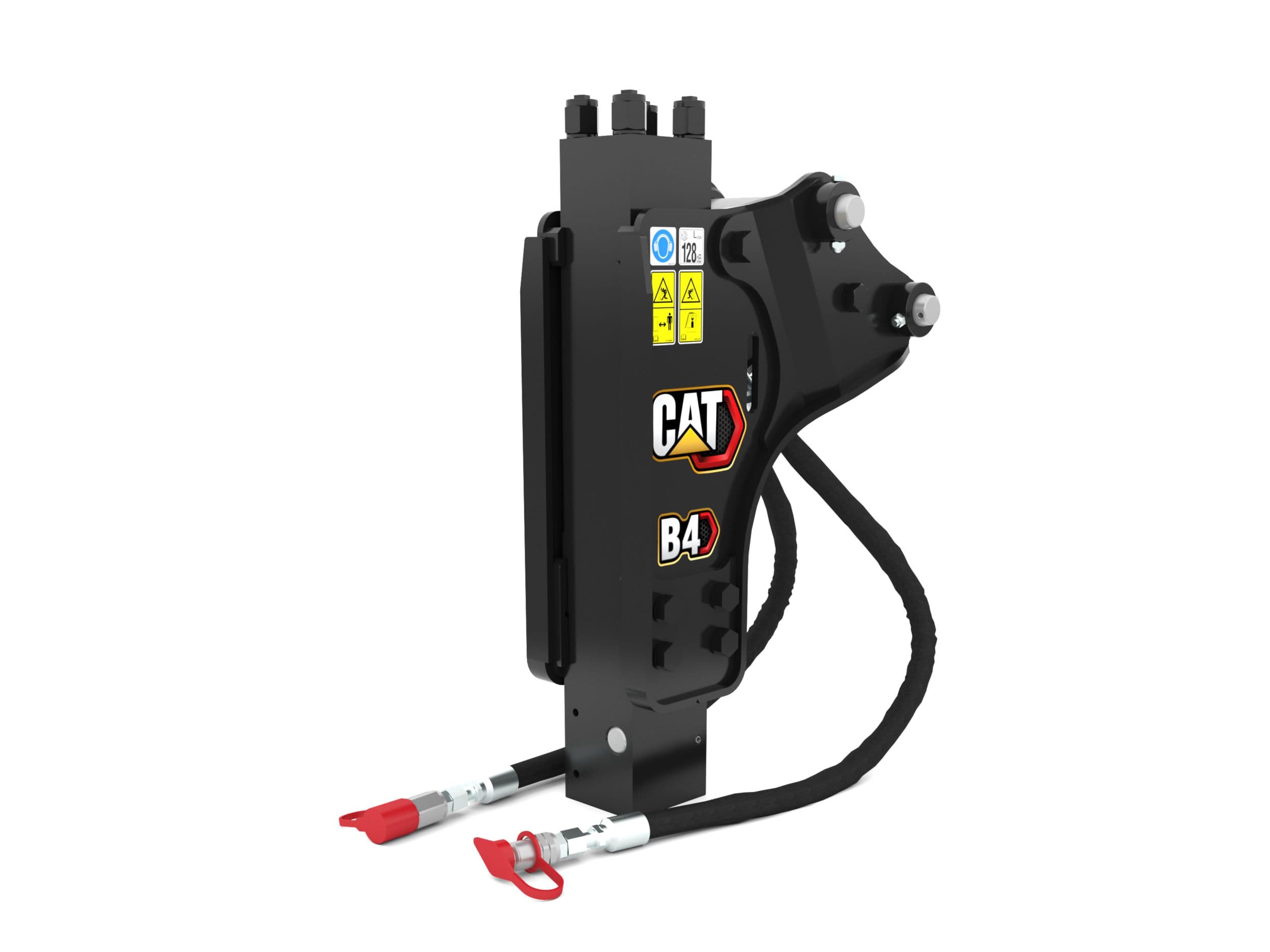

B4 Non-Silenced Side Mount Hydraulic Hammer

Caterpillar

B4 Non-Silenced Side Mount Hydraulic Hammer

رقم القطعة: CAT-108740

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

B4 Non-Silenced Side Mount Hydraulic Hammer

المواصفات

ModelB4 Side Mount
Product Pagehttps://www.cat.com/en_US/products/new/attachments/hammers/hammers/108740.html
Caterpillar CategoryHammers
Caterpillar Category PathProducts > Attachments > Hammers > Hammers > B4 Side Mount
Caterpillar Product Familyattachments
Caterpillar Product Page ID108740
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20211013-dcd3d-dcf2f
Overall Height1182 mm
Overall Length476 mm
Overall Width277 mm
Optimal Hydraulic Flow25-50 lpm (6.6-13.2 gpm)
Machine Class3-4 Ton Mini Excavators
Impact Frequency600-1100 bpm
Minimum Operating Pressure10286 kPa
Minimum Carrier Weight3000 kg
Operating Weight - With Tool148 kg
Tool Shaft Diameter53 mm
Energy Class370 J
Height - Without Tool822 mm
Sound Level128 dB
Mounting Bracket SizePin On
