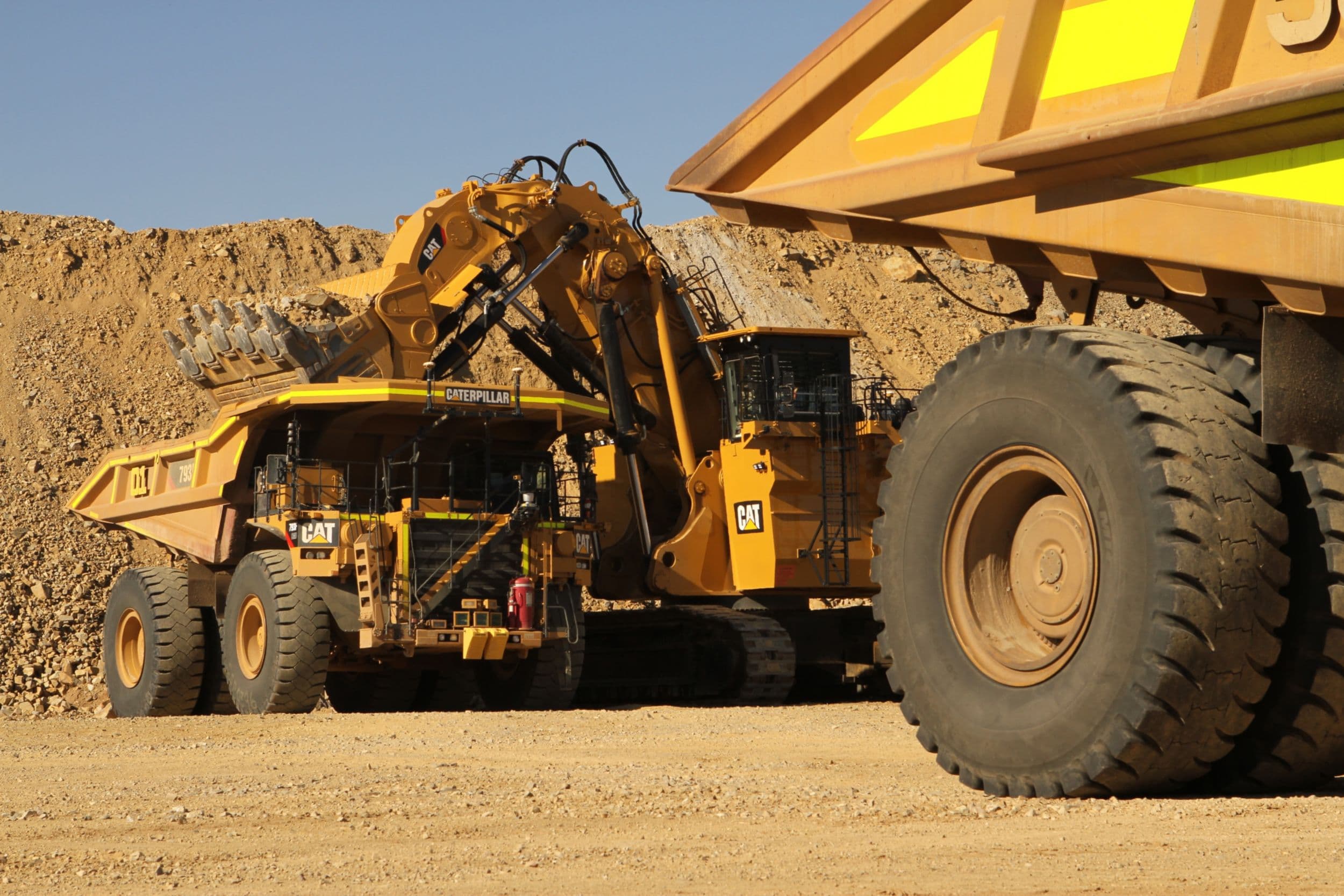

Cat Command for Hauling

Name: Cat Command for Hauling
Brand: Caterpillar
SKU: CAT-1000029430

رقم القطعة: CAT-1000029430

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Cat Command for Hauling

المواصفات

Model	Cat Command for Hauling
Product Page	https://www.cat.com/en_US/products/new/technology/command/command/1000029430.html
Caterpillar Category	Command
Caterpillar Category Path	Products > Technology > Command > Command > Cat Command for Hauling
Caterpillar Product Family	technology
Type	Electrically scanning radar
Caterpillar Product Page ID	1000029430
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20191101-57b90-7d548
Height	187 mm
Power	2A @ 24V
Width	86 mm
Weight	13.6 kg
Operating Temperature	-40° F to 158° F (-40° C to 70° C)
Storage Temperature	-58° F to 194° F (-50° C to 90° C)
Depth	57 mm
Number of Lasers	64 Class 1 – eye safe 905 N∙m wavelength
Sealing	Rated to IP67 (± 35 kPa)
Input Voltage Range	10V to 32V
EMC Capability	to EC-42 version
Spin Rate	300 rpm-1,200 rpm
GNSS Receivers — Weight	0.8 kg
Humidity	100%
Connectors	One 12-pin Deutsch, one antenna TNC
GNSS Receivers — Storage Temperature	-58° F to 185° F (-50° C to 85° C)
Accuracy	< 1 m (With base station corrections.)
Electrical Input	9 to 32V DC 120 mA @ 24V DC
Touch Screen Display — Weight	1.81 kg
Touch Screen Display — Depth	80 mm
Touch Screen Display — Operating Temperature	-4° F to 158° F (-20° C to 70° C)
Touch Screen Display — Storage Temperature	-40° F to 185° F (-40° C to 85° C)
Video Input	Four video inputs, support NTSC video inputs
Operator Switches	Four illuminated push buttons with tactile feedback one 4-way rocker switch
Touch Screen Display — Height	157 mm
Audible Alarm	Integral audible alarm located on the front face. Two outputs for external alarm.
Touch Screen Display — Width	229 mm
Touch Screen Display — Electrical Input	9 to 32V DC
Operating Frequency	919 MHz
Maximum Storage Temperature	-58° F to 185° F (-50° C to 85° C)
Charger Output	2A @ 5V
Charger Input	100-240 V AC (50-60 Hz)
Maximum Operating Temperature	-0.4° F to 149° F (-18° C to 65° C)
Transmit Range	>180 m
Dimensions	6.84 in × 3.55 in × 1.94 in (173.7 mm × 90.2 mm × 49.2 mm)
Radars — Weight	575 g
Radars — Power	1A @ 12V
Radars — Operating Frequency	76.5 GHz
On-board A-Stop Receiver — Maximum Operating Temperature	-40° F to 185° F (-40° C to 85° C)
On-board A-Stop Receiver — Maximum Storage Temperature	-50° F to 185° F (-50° C to 85° C)
