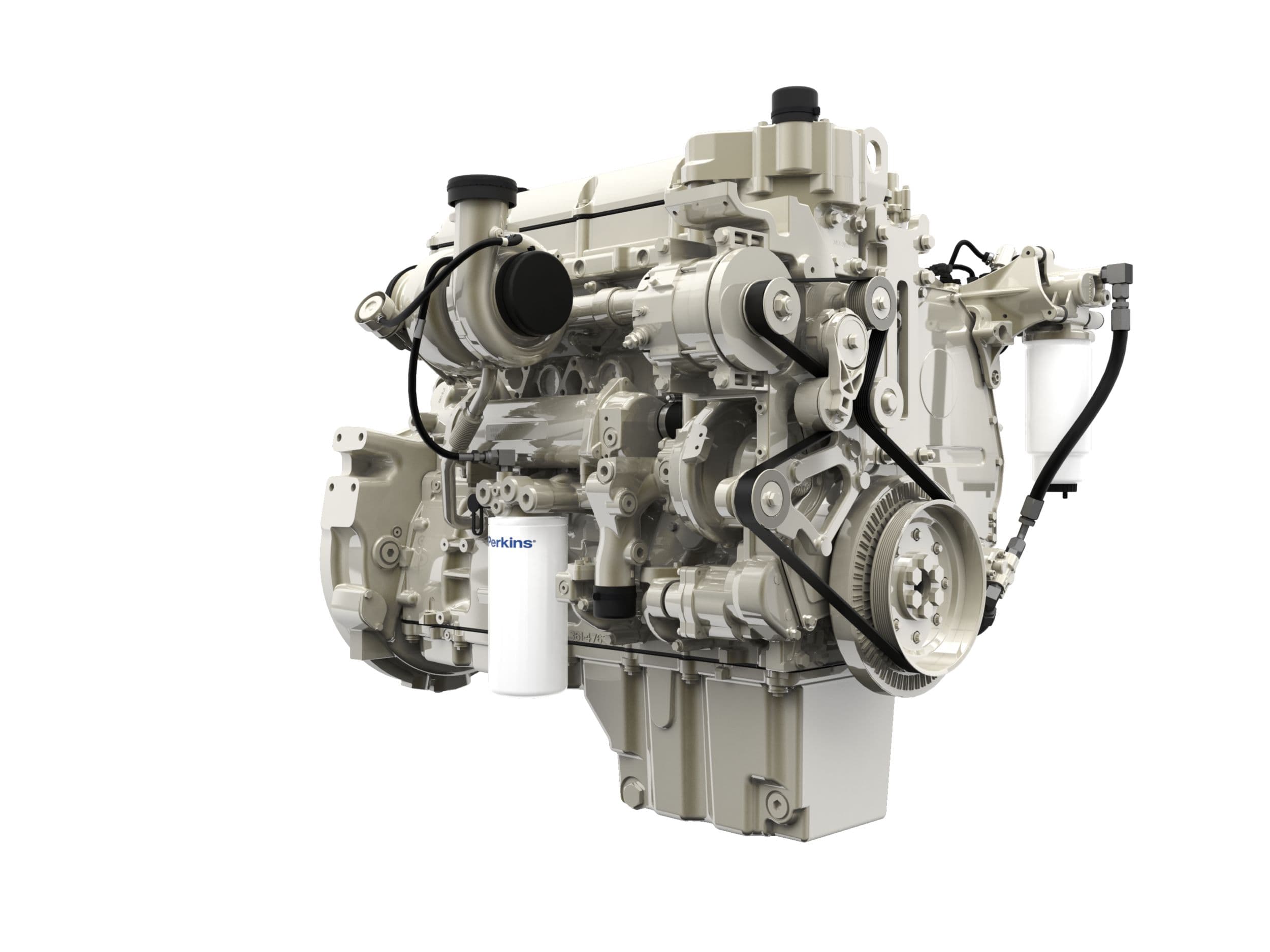

2406EA-E13TA Industrial Diesel Engine

Perkins

2406EA-E13TA Industrial Diesel Engine

رقم القطعة: 109860

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

2406EA-E13TA Industrial Diesel Engine

المواصفات

Model2406EA-E13TA
Series2400 Series
CategoryIndustrial
Power Rating / Maximum Power430 kW (577 hp)
Power Rating / Maximum Torque2634 Nm @ 1400 rpm (1943 lb-ft @ 1400 rpm)
Power Rating / Rated Speed1800-2100 rpm
Power Rating / Minimum Power340 kW (456 hp)
Emission Standards / EmissionsChina NR IV
General / Number of Cylinders6 inline
General / Cycle4 stroke
General / Bore130 mm (5.1 in)
General / Stroke157 mm (6.2 in)
General / Displacement12.5 l (762.8 in³)
General / Compression Ratio15.8:1
General / AspirationTurbocharged aftercooled
General / Combustion SystemDirect injection
General / Rotation from Flywheel EndAnti-clockwise
General / Cooling SystemLiquid
Engine Dimensions / Length1274 mm (50 in)
Engine Dimensions / Width994 mm (39 in)
Engine Dimensions / Height1134 mm (45 in)
Engine Dimensions / Dry Weight1125 kg (2480 lb)
General / AftertreatmentDOC+DPF+SCR
