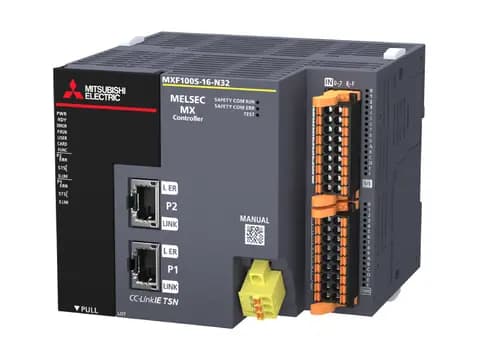

MXF100-8-N32 - Program memory: 30 MB Maximum number of controllable axes: 8 axes Built-in CC-Link…

Mitsubishi Electric

MXF100-8-N32 - Program memory: 30 MB Maximum number of controllable axes: 8 axes Built-in CC-Link…

رقم القطعة: MXF100-8-N32_7001

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

MXF100-8-N32 - Program memory: 30 MB Maximum number of controllable axes: 8 axes Built-in CC-Link…

المواصفات

Basic information / Model nameMXF100-8-N32
Basic information / OverviewProgram memory: 30 MB Maximum number of controllable axes: 8 axes Built-in CC-Link IE TSN Input: 16 points Output: 16 points transistor (sink)
Basic information / Sales statusOn sale
Listed / Model nameMXF100-8-N32
Basic information / Conformance standardUL cUL CE(EMC) CE(RoHS) KC(EMC)
Operating atmosphereNo corrosive gases and flammable gases, less conductive dust
Installation locationInside a control panel*7
GroundingGrounding resistance of 100Ω or less (Common grounding with a heavy electrical system is not allowed)*5
Inrush current100 A, 0.06 ms or less 4.0 A, 350 ms or less
Noise immunityBy noise simulator at noise voltage of 1000 Vp-p, noise width of 1 μs and period of 30…100 Hz
Storage ambient temperature-25…75°C, non-freezing
Operating ambient humidity5…95% RH, non-condensing*2
Storage ambient humidity5…95% RH, non-condensing
Operation control methodRepetitive operation of stored programs
I/O control modeRefresh mode (The direct access input/output is available by specifying the direct access input/output (DX, DY).)
Programming language• Ladder diagram (LD) • Structured text (ST) • Function block diagram (FBD/LD)
Extended programming language• Function block (FB) • Label programming
Program execution typeInitial, scan, fixed scan, interrupt, and standby
Number of I/O points512 points
Memory capacity / Program memory30 MB
Memory capacity / Program cache memory12 MB
Memory capacity / Device/label memory8 MB
Memory capacity / Data memory15 MB
Online changeSupported
Processing speed / Double-precision floating-point processing2.50 ns…
Processing speed / Instruction processing time / LD instruction1.25 ns…
Number of occupied I/O pointsNot supported
Number of slots occupied by a moduleNot supported
USB portUSB 2.0 High Speed (Type-C) × 1
Ethernet portOne of the CC-Link IE TSN ports can be switched to the Ethernet port.
CC-Link IE TSN port1000BASE-T/100BASE-TX × 2 One of the CC-Link IE TSN ports can be switched to the Ethernet port.
SD memory cardSD/SDHC memory card
Number of controllable axes / Real drive axis8 axes
Motion operation cycle [μs]250, 500, 1000, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500, 8000
Servo amplifier connectionMR-J5-G, MR-J5W2-G, MR-J5W3-G, MR-J5D1-G4, MR-J5D2-G4, MR-J5D3-G4, CC-Link IE TSN-compatible drive, MR-JET
Absolute position control system64 bit control/32 bit control
Positioning range64 bit floating-point (LREAL type)
Interpolation functionLinear interpolation (4 axes maximum), 2-axis circular interpolation
Control methodPTP control, speed control, speed-position switching control (future support), speed control/torque control/continuous operation to torque control, pressure control (future support), multi-axis positioning data operation, position follow-up control, and motion cyclic instruction (position, velocity, and torque)
Operation cycles mixed3 groups
System memory size96 MB
Size of built-in ROM for user data15 MB (Data memory is used.)
AxisReal drive axis, virtual drive axis, real encoder axis, virtual encoder axis, and virtual linked axis
Axis / Axes group0: Not set 1…: Setting axes group No.
Axis / Real drive axisServo amplifier
Axis / Real encoder axisVia a servo amplifier
Compensation functionDriver unit conversion function and phase compensation function (future support)
Synchronous control / InstructionAdvanced synchronous control and cam operation start (MC_Camln)
Synchronous control / ModuleMaster axis, cam, gear, and clutch
Synchronous control / Master axisReal drive axis, virtual drive axis, real encoder axis, virtual encoder axis, and virtual linked axis
Start/stopStart, stop, restart, buffer mode, and forced stop
Home position return / Home position return methodDriver home position return method (use the home position return method set in the driver)
Positional control / Linear controlLinear interpolation (2…4 axes)
Positional control / 2-axis circular interpolationBorder point specification, center point specification, and radius specification
Manual controlJOG operation
Direct control / Speed controlSpeed control not including position loop and speed control including position loop
Direct control / Torque controlTorque control and continuous operation to torque control
Absolute positioning systemProvided (batteryless)
Function to limit control / Velocity limitVelocity set range
Function to limit control / Torque limitPositive direction torque limit value, negative direction torque limit value
Function to limit control / Forced stopEnabled/disabled switching
Function to limit control / Software stroke limitCheck the movable range at the set position and the machine feed value.
Function to limit control / Hardware stroke limitSupported
Function to change control content / Set velocity changeSupported
Function to change control content / Current value changeSupported
Function to change control content / Acceleration/deceleration process changeAcceleration/deceleration and acceleration/deceleration time
Function to change control content / Torque limit value changeSupported
Function to change control content / Target position changeTarget position change and movement distance change
Function to change control content / OverrideSupported
Function / History dataPosition data history
Function / Axis emulationSupported
Function / Touch probe (mark detection)Supported
Function / Monitoring of servo dataCyclic transmission and transient transmission
Function / Servo system recorderNot supported
Function / Digital cam switchSupported
Number of registrations60000 maximum (settable number from engineering tool: 1024)
Cam data / TypeCam data and rotary knife
Cam data / Interpolation methodSpecifying for each section, linear interpolation, and spline interpolation
Cam data / Profile ID1…60000
Cam data / Resolution8…65535 (optional)
Cam data / Unit of length per cycle settingmm, inch, pulse, degree
Cam data / Unit of stroke amount%, mm, inch, pulse, degree
Cam auto-generationCam auto-generation cam for rotary knife
Transmission speed1 Gbps/100 Mbps
Maximum number of connectable stations per network39 stations (manager station: 1, device station: 38)
Network topologyLine topology, star topology, coexistence of line and star topologies
Overall cable length / Line connection3800 m (when 39 stations are connected)
Overall cable length / OthersDepends on the system configuration.
Maximum station-to-station distance100 m
Maximum number of link points per network / RX/RY16K points (16384 points, 2 KB) for each
Maximum number of link points per network / RWr/RWw8K points (8192 points, 16 KB) for each
Maximum number of link points per station / RX/RYManager station: 8K points (8192 points, 1 KB) for each
Maximum number of link points per station / RWr/RWwManager station: 4K points (4096 points, 8 KB) for each
Connection cableEthernet cable (Category 5e or higher)
Communication methodTime sharing method
Transient transmission capacityMaximum 1920 bytes
Listed / OutlineProgram memory: 30 MB Maximum number of controllable axes: 8 axes Built-in CC-Link IE TSN Input: 16 points Output: 16 points transistor (sink)
Rated voltage24 V DC
Voltage fluctuation range+20%, -15%
Allowable momentary power failure time5 ms or less (at 24 V)
Power fuse125 V, 3.15 A time-lag fuse
Power consumptionController alone: 13.6 W or less Maximum configuration for connection to the controller: 32.0 W or less (external 24 V DC power supply of extension devices is not included)
24 V DC built-in power supply capacity500 mA
5 V DC built-in power supply capacity720 mA
Operating ambient temperature*10…55°C, non-freezing
Vibration resistance*3 *4 / Installed on DIN rail / Frequency: 5…8.4 HzHalf amplitude: 1.75 mm Number of sweeps: 10 times each in X, Y, and Z directions (total 80 minutes in each direction)
Vibration resistance*3 *4 / Installed on DIN rail / Frequency: 8.4…150 HzConstant acceleration: 4.9 m/s2 Number of sweeps: 10 times each in X, Y, and Z directions (total 80 minutes in each direction)
Shock resistance*3147 m/s2, Duration of action: 11 ms, 3 times each in X, Y, and Z bidirections by sine half-wave pulse
Operating altitude*60…2000 m
Overvoltage category*8II or less
Pollution degree*92 or less
