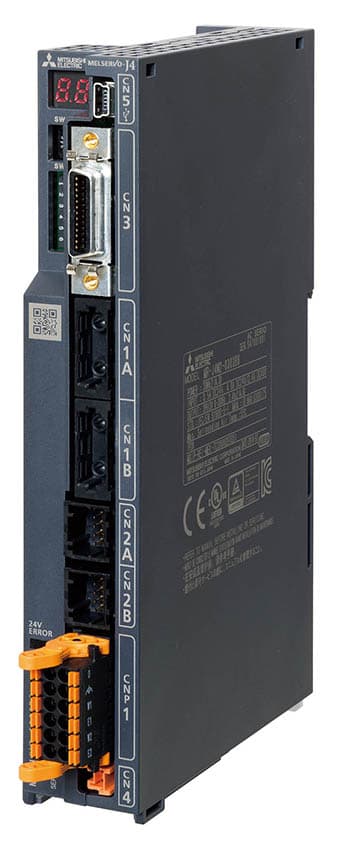

MR-J4W2-0303B6 - SSCNET III/H-compatible servo amplifier, 0.03 kW, 48 V DC/24 V DC

Mitsubishi Electric

MR-J4W2-0303B6 - SSCNET III/H-compatible servo amplifier, 0.03 kW, 48 V DC/24 V DC

رقم القطعة: MR-J4W2-0303B6_5363

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

MR-J4W2-0303B6 - SSCNET III/H-compatible servo amplifier, 0.03 kW, 48 V DC/24 V DC

المواصفات

SeriesMELSERVO-J4 series
Model nameMR-J4W2-0303B6
Basic information / Model nameMR-J4W2-0303B6
Basic information / OverviewSSCNET III/H-compatible servo amplifier, 0.03 kW, 48 V DC/24 V DC
Basic information / Sales statusOn sale
Listed / SeriesMELSERVO-J4 series
Listed / Model nameMR-J4W2-0303B6
Basic information / Conformance standardUL CSA CE(EMC) CE(LVD) CE(Machinery) CE(RoHS) UKCA ChinaRoHS KC(EMC)
Environment / AmbienceIndoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Control methodSine-wave PWM control/current control method
Mass [kg] ~81ac870.3
Power class48 V DC/24 V DC
Capacity [kW]0.03
Output / Rated current [A]2.4
Control circuit power supply input / Rated current [A]0.5
Control circuit power supply input / Power consumption [W]10
Interface power supply24 V DC ± 10 % (required current capacity: 0.25 A)
Communication functionUSB: Connect a personal computer (MR Configurator2 compatible)
A/B/Z-phase pulse outputCompatible (A/B-phase pulse)
Analog monitor2 channels
Servo functionsAdvanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, vibration tough drive function, drive recorder function, tightening & press-fit control, machine diagnosis function, power monitoring function, J3 compatibility mode
Protective functionsOvercurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, error excessive protection
Satisfied standardsRefer to "Standards and certifications (by product) Products" for compliance with global standards and regulations.
Structure (IP rating)Natural cooling, open (IP20)
Close mounting / 3-phase power supply inputPossible*8
Environment / Ambient temperature / Operation0 °C to 55 °C (non-freezing)
Environment / Ambient temperature / Storage-20 °C to 65 °C (non-freezing)
Environment / Ambient humidityOperation/storage: 5 %RH to 90 %RH (non-condensing)
Listed / Power class [V]48 V DC/24 V DC
Listed / Capacity [kW]0.03
Listed / Command interfaceSSCNET III/H
Main circuit power supply input / Rated current [A]For 48 V DC: 2.4 A For 24 V DC: 4.8 A
Command interfaceSSCNET III/H
Fully closed loop controlNot compatible
Output / Rated voltage3-phase 13 V AC
Dynamic brake*5Built-in*6
Environment / Altitude1000 m or less above sea level
Environment / Vibration resistance5.9 m/s2 at 10 Hz to 55 Hz (directions of X, Y, and Z axes)
Capacitor regeneration / Reusable regenerative energy [J]*30.9
Capacitor regeneration / Moment of iner .. o permissible charging amount [× 10-4 kg•m2]*4 ~984fe40.18
Main circuit power supply input / Voltage/frequency*1 / DC input48 V DC/24 V DC*2
Main circuit power supply input / Permissible voltage fluctuation / DC inputFor 48 V DC: 40.8 V DC to 55.2 V DC For 24 V DC: 21.6 V DC to 26.4 V DC
Control circuit power supply input / Voltage/frequency / DC input24 V DC
Control circuit power supply input / Permissible voltage fluctuation / DC input21.6 V DC to 26.4 V DC
Permissible regenerative power / Built-in regenerative resistor [W]1.3
Command communication cycle*70.222 ms, 0.444 ms, 0.888 ms
DIN rail mounting (35 mm wide)Possible
