Atlas Copco

QAS 125 JD Mid-sized Mobile Generator

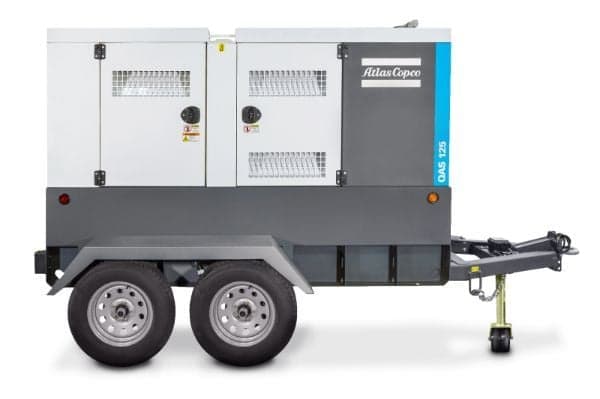

Name: QAS 125 JD Mid-sized Mobile Generator
Brand: Atlas Copco
SKU: QAS125JD

رقم القطعة: QAS125JD

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

QAS 125 JD Mid-sized Mobile Generator

المواصفات

Model	QAS 125 JD
Series	Medium Diesel Generators
Category	Mid-sized Generators
Product Type	diesel-generator-set
Prime Power (kVA)	125 kVA
Frequency	60 Hz
Engine Model	John Deere 4045 HFG04
Engine Displacement	4.5
Fuel Type	Diesel
Prime Power (kW)	100 kW
Rating Types	PRIME / STANDBY
Engine Cylinders	4
Engine Aspiration	Turbo w/ Intercooler
Alternator Model	Leroy Somer 44.3 S5
Alternator Excitation	AREP (auxiliary winding)
Alternator Insulation	Class H
Standby Power (kVA)	138 kVA
Performance / Frequency	60 Hz
Performance / Rated prime power 3ø	100 / 125 kW/kVA
Performance / Rated standby power 3ø	110 / 138 kW/kVA
Performance / 3ø Voltage in 480V switch position (series	480Y / 277 V
Performance / Amp capacity @480V	150 A
Performance / 3ø Voltage in 240-208V switch position (p	240YY / 139-208YY V
Performance / Amp capacity @208V	300 A
Performance / Rated prime power 1ø	65 / 65 kW/kVA
Performance / 1ø Voltage in 120-240V switch position (Zi	240 / 120 V
Performance / Amp Capacity @120V	271 x 2 A
Performance / Main breaker - Rated Current in	400 A
Performance / Power distribution - Terminal board	5 Wire (L1, L2, L3, N, Ground)
Performance / Max. sound pressure level (LPA) @23' @75% Load	73 dB(A)
Fuel and DEF Systems / DEF Tank Capacity	9.19 (34.8) Gal (L)
Alternator / Excitation system	AREP (auxiliary winding)
Alternator / Insulation	Class H
Engine / Model	John Deere 4045 HFG04
Engine / US EPA Family	HUDXL0.4.531
Engine / US EPA Tier	Tier 4 Final
Engine / Displacement	4.5 L
Engine / Cylinders	4
Engine / Continuous engine output	157 hp
Engine / Speed	1800 rpm
Engine / Aspiration	Turbo w/ Intercooler
Engine / Max. ambient temperature (@Sea Level)	122 ºF
Engine / Min. starting temperature (w/o Cold weather options)	14 ºF
Engine / Minimum starting temperature (w/Cold weather options)	-13 ºF
Engine / Battery Capacity (Cold Cranking Amps)	1100 A
Emissions Stage	Tier 4 Final
Standby Power (kW)	110 kW
