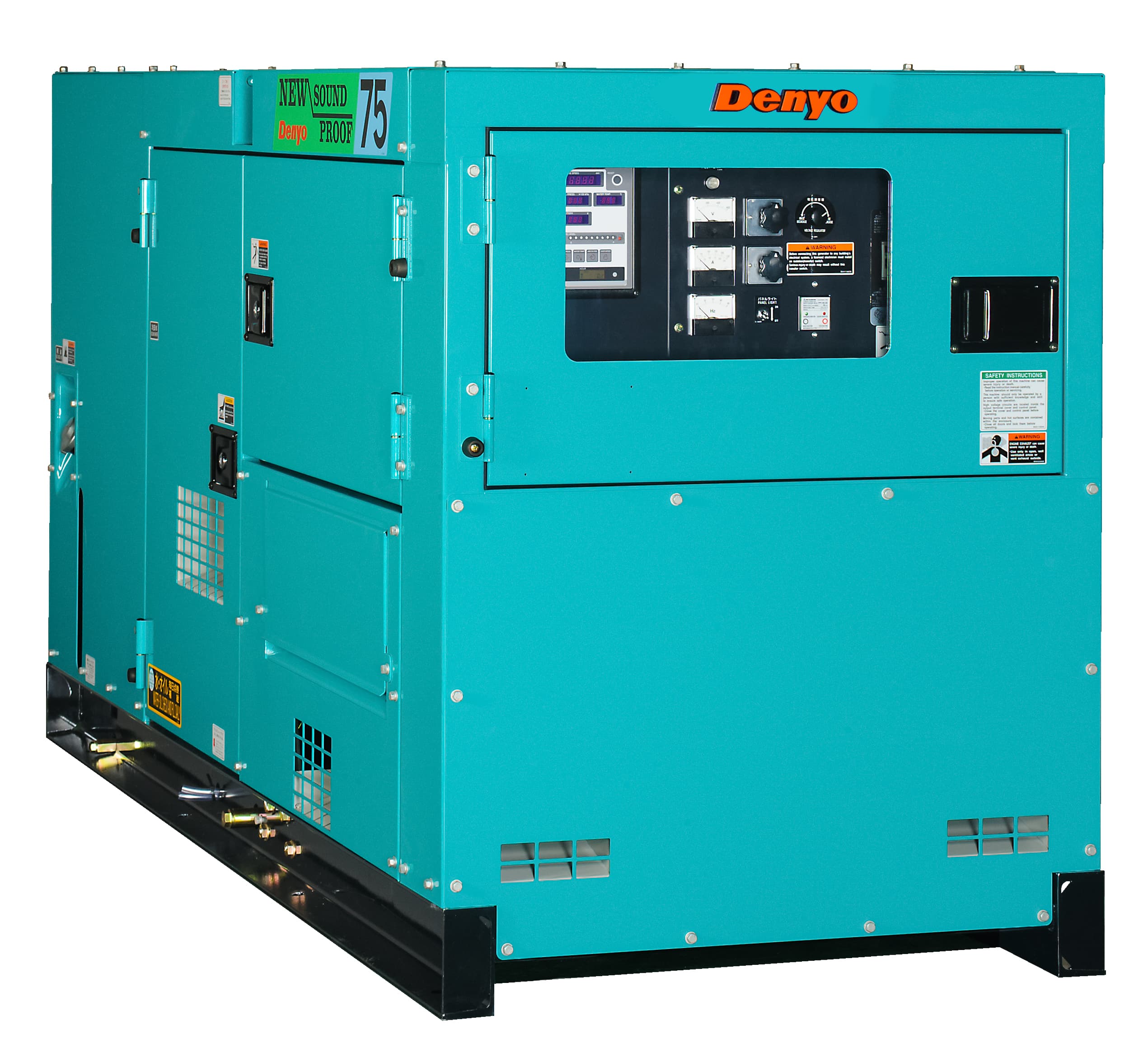

DCA-75SPI
رقم القطعة: DCA-75SPI
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
DCA-75SPI
المواصفات
| Model | DCA-75SPI |
|---|---|
| Series | Three Phase 26 100kVA |
| Category | Generator Sets |
| Fuel Class | diesel |
| Phase | Three Phase |
| Engine Model | Isuzu A-6BG1 |
| EN / Model [model] | DCA-75SPI |
| EN / Rated output - Continuous [continuous_power] | 65/75kVA |
| EN / Rated output - Stand by [standby_power] | 68.3/78.8kVA |
| EN / Voltage [voltage] | 190～220V/190～240V; 380～440V/380～480V |
| EN / Power Factor [power_factor] | Three Phase 0.8 |
| EN / Engine [engine_model] | Isuzu A-6BG1 |
| EN / Fuel [fuel_type] | Diesel |
| EN / Tank Capacity [fuel_tank_capacity] | 155L |
| EN / Dimension L×W×H [dimensions] | 2,630×1,000×1,300mm |
| EN / Weight [weight] | 1,590kg |
| EN / Sound Level (From 7m) - 50Hz [sound_level] | 61dB |
| EN / Sound Level (From 7m) - 60Hz [sound_level] | 63dB |
| EN / Options [options] | Contact your supplier for non-standard requests.; Automatic start and stop device for ATS connection.; Three way valve for connecting external tank; Automatic transfer swich; Dual Voltage system; Exaust Pipe; Salt Corrosion protection |
| EN / Continuous Power (50Hz) [continuous_power] | 65 kVA |
| EN / Continuous Power (60Hz) [continuous_power] | 75 kVA |
| EN / Standby Power (50Hz) [standby_power] | 68.3 kVA |
| EN / Standby Power (60Hz) [standby_power] | 78.8 kVA |
| EN / Phase [phase] | Three Phase |
