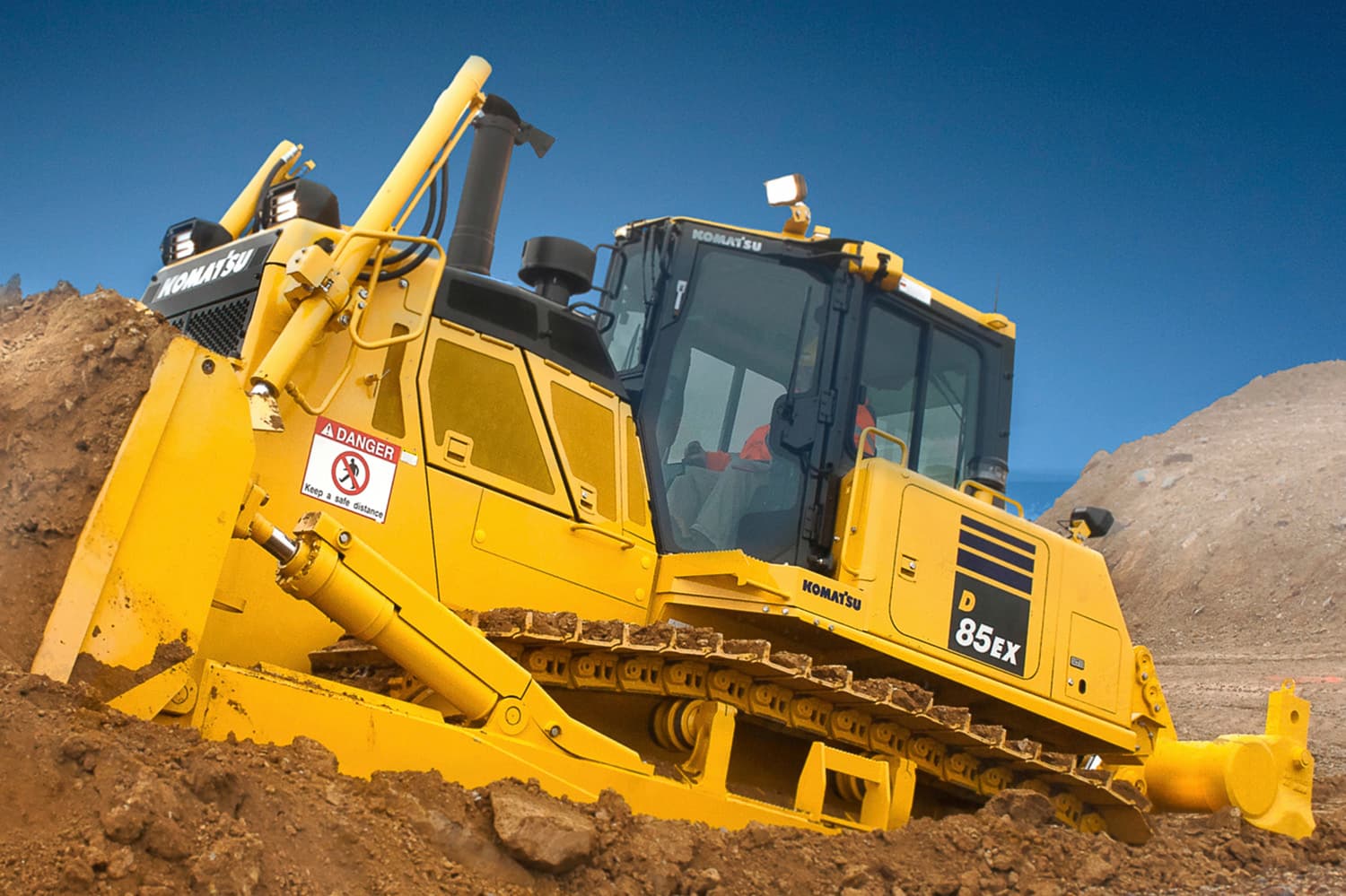

D85EX-18
رقم القطعة: KOMATSU-D85EX-18
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
D85EX-18
المواصفات
| Horsepower (HP) | 264 HP @ 1,900 rpm |
|---|---|
| Horsepower (kW) | 197 kW @ 1 900 rpm |
| Control valve | Spool control valves for SIGMADOZER®, semi-u tilt or straight tilt dozer |
| Operating weight (kg) | 30 670 |
| Operating weight (lbs) | 67,615 |
| Blade capacity (m^3) | 7 |
| Blade capacity (yd^3) | 9.2 |
| Suspension | Oscillating equalizer bar and pivot shaft |
| Track roller frame | Monocoque, large section, durable construction |
| Rollers and idlers | Lubricated |
| Type of shoes (standard) | Single grouser |
| Number of track rollers (each side) | 7 |
| Number of shoes (each side) | 41 |
| Grouser height (mm) | 72 |
| Grouser height (in) | 2.8 |
| Shoe width (standard)(in) | 26 |
| Shoe width (standard)(mm) | 660 |
| Ground contact area (ft2) | 49.4 |
| Ground contact area (cm^2) | 45 920 |
| Ground pressure (with standard shoe)(ISO 16754)(psi) | 7.5 |
| Ground pressure (with standard shoe)(ISO 16754)(kg/cm^2) | 0.52 |
| Ground pressure (with standard shoe)(ISO 16754)(kpa) | 52 |
| Track gauge (mm) | 2 000 |
| Track gauge (ft) | 6 ft. 7 in |
| Length of track on ground (ft) | 10 ft. |
| Length of track on ground (mm) | 3 050 |
| Engine model | Komatsu SAA6D125E-7* |
| Dozers type | 4-cycle, water-cooled, direct injection |
| Aspiration | Komatsu variable geometry turbocharged, air-to-air aftercooled |
| Number of cylinders | 6 |
| Bore x stroke (in) | 4.49 x 5.69 |
| Bore x stroke (mm) | 125 x 150 |
| Piston displacement (L) | 11.04 |
| Piston displacement (in^3) | 674 |
| Governor | All-speed and mid-range, electronic |
| Footnote | *EPA Tier 4 Final emissions certified |
| SAEJ1995 - Gross (kW) | 199 |
| SAEJ1995 - Gross (HP) | 267 |
| ISO 9249 / SAE J1349 - Net (HP) | 264 |
| ISO 9249 / SAE J1349 - Gross (kW) | 197 |
| Rated rpm | 1,900 |
| Fan drive type | Hydraulic |
| Filter | Full-flow |
| Method | Gear pump, force lubrication |
| Operator weight (approximate) | Including SIGMADOZER and fixed multi-shank ripper (EXi) or straight tilt dozer and long drawbar (PXi) ROPS cab, operator, standard equipment, rated capacity of lubricant, hydraulic control unit, coolant, and full fuel tank. |
| Tractor weight (kg) | 24 390 |
| Tractor weight (lbs) | 53,770 |
| Tractor weight inclusions | Including ROPS cab, rated capacity of lubricant, hydraulic control unit, coolant, full fuel tank, operator, and standard equipment. |
| Final drive features | Double-reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement. Triple labyrinth protects seals and improves durability. |
| Fuel tank (US gal) | 124.1 |
| Fuel tank (L) | 470 |
| Diesel Exhaust Fluid (DEF) tank (L) | 23.5 |
| Diesel Exhaust Fluid (DEF) tank (US gal) | 6.2 |
| Coolant (US gal) | 17.2 |
| Coolant (L) | 65 |
| Engine oil (L) | 38 |
| Engine oil (US gal) | 10 |
| Final drive (US gal) | 6.9 |
| Final drive (L) | 26 |
| Hydraulic tank (L) | 69 |
| Hydraulic tank (US gal) | 18.2 |
| Steering system features | Palm Command Control System (PCCS) lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to left to make a left turn. Tilt it to the right for a right turn. Hydrostatic Steering System (HSS) is powered by steering planetary units and an independent hydraulic pump and motor. Counterrotation turns are also available. Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake. |
| Minimum turning radius (in) | 78 |
| Minimum turning radius (m) | 2 |
| Hydraulic system features | Closed-Center Load Sensing System (CLSS) designed for precise and responsive control, and for efficient simultaneous operation. |
| Hydraulic control unit (U.S. gal/min) | All spool valves externally mounted beside the hydraulic tank. Piston type hydraulic pump with capacity (discharge flow) of 87.4 US gpm at rated engine rpm. |
| Hydraulic control unit (ltr/min) | All spool valves externally mounted beside the hydraulic tank. Piston type hydraulic pump with capacity (discharge flow) of 331 L/min at rated engine rpm. |
| Relief valve setting (psi) | 3,270 |
| Relief valve setting (MPa) | 22.6 |
| Blade lift | Raise, hold, lower, and float |
| Blade tilt | Right, hold, and left |
| Lubricated tracks | Lubricated tracks. Unique seals prevent entry of foreign abrasive material into pin to bushing clearances to provide extended service life. Track tension is easily adjusted with grease gun. |
| Rear attachment | Raise, hold and lower |
| Torque converter, transmission, bevel gear, and steering system (US gal) | 15.8 |
| Torque converter, transmission, bevel gear, and steering system (L) | 60 |
| Transmission features | Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase and a planetary gear, multipledisc clutch transmission which is electronically controlled, hydraulically actuated and force-lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch. |
| 1st torqflow forward (kph) | 3.3 |
| 1st torqflow forward (mph) | 2.1 |
| 2nd torqflow forward (kph) | 6.1 |
| 2nd torqflow forward (mph) | 3.8 |
| 3rd torqflow forward (kph) | 10.1 |
| 3rd torqflow forward (mph) | 6.3 |
| 3rdL torqflow forward (kph) | 7.8 |
| 3rdL torqflow forward (mph) | 4.8 |
| 1st torqflow reverse (kph) | 4.4 |
| 1st torqflow reverse (mph) | 2.7 |
| 2nd torqflow reverse (kph) | 8 |
| 2nd torqflow reverse (mph) | 5 |
| 3rd torqflow reverse (kph) | 13 |
| 3rd torqflow reverse (mph) | 8.1 |
| 3rdL torqflow reverse (kph) | 9.2 |
| 3rdL torqflow reverse (mph) | 5.7 |
| Damper case (L) | 1.6 |
| Damper case (US gal) | 0.42 |
| Multi-shank ripper (L) | 11 |
| Multi-shank ripper (US gal) | 2.9 |
