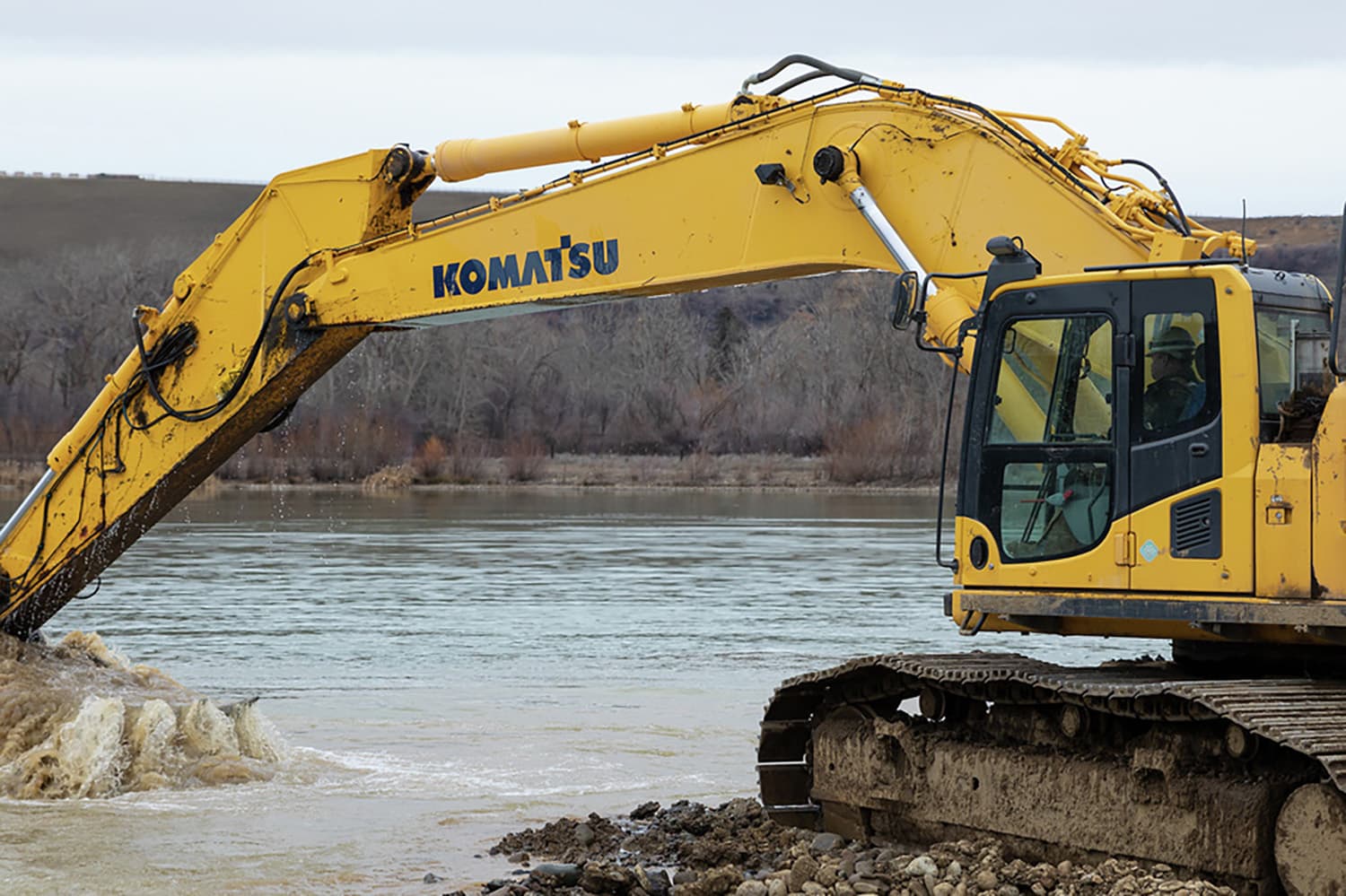

PC650LC-11
رقم القطعة: KOMATSU-PC650LC-11
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PC650LC-11
المواصفات
| Horsepower (HP) | 436 HP @ 1,800 rpm |
|---|---|
| Horsepower (kW) | 325 kW @ 1 800 rpm |
| Gradeability | 70%, 35° |
| Operating weight (kg) | 63 710 - 65 900 |
| Operating weight (lbs) | 140,456 - 145,284 |
| Number of track rollers (each side) | 9 |
| Number of shoes (each side) | 52 |
| Number of carrier rollers (each side) | 3 |
| Engine model | Komatsu SAA6D140E-7* |
| Aspiration | Turbocharged, aftercooled, cooled, EGR |
| Number of cylinders | 6 |
| Piston displacement (L) | 15.24 |
| Piston displacement (in^3) | 930 |
| Governor | All-speed control, electronic |
| SAEJ1995 - Gross (kW) | 327 |
| SAEJ1995 - Gross (HP) | 439 |
| ISO 9249 / SAE J1349 - Net (HP) | 436 |
| Fuel tank (US gal) | 232.5 |
| Fuel tank (L) | 880 |
| Coolant (US gal) | 20.1 |
| Coolant (L) | 76 |
| Final drive (US gal) | 2.65 |
| Final drive (L) | 10 |
| Hydraulic tank (L) | 360 |
| Hydraulic tank (US gal) | 95 |
| Bucket capacity (m^3) | 1.57 - 3.81 |
| Bucket capacity (yd^3) | 2.05 - 4.98 |
| Variable Type | Variable capacity piston |
| Maximum flow (US gpm) | 2 x 108 |
| Maximum flow (L/min) | 2 x 410 |
| HydrauMind Type | Open-center load sensing system, 3 selectable working modes |
| Gear Type | Variable capacity piston |
| Main pumps for | Boom, arm, bucket, swing, and travel circuits |
| Implement circuits (psi) | 4,700 |
| Travel circuit (psi) | 4,980 |
| Swing circuit (psi) | 3,700 |
| Implement circuits (MPa) | 32.4 |
| Pilot circuit (psi) | 430 |
| Boom (Number of cylinders – bore x stroke x rod diameter)(mm) | 185 x 1 725 x 120 |
| Implement circuits (kgf/cm^2) | 330 |
| Boom (Number of cylinders – bore x stroke x rod diameter)(in) | 7.3 x 67.9 x 4.7 |
| Arm (Number of cylinders – bore x stroke x rod diameter)(mm) | 200 x 2 045 x 140 |
| Arm (Number of cylinders – bore x stroke x rod diameter)(in) | 7.9 x 80.5 x 5.5 |
| Bucket (Number of cylinders – bore x stroke x rod diameter)(mm) | 185 x 1 425 x 130 |
| Pilot circuit (kgf/cm^2) | 30 |
| Bucket (Number of cylinders – bore x stroke x rod diameter)(in) | 7.3 x 56.1 x 5.1 |
| Pilot circuit (MPa) | 2.9 |
| Swing circuit (kgf/cm^2) | 260 |
| Swing circuit (MPa) | 25.5 |
| Travel circuit (kgf/cm^2) | 350 |
| Travel circuit (MPa) | 34.3 |
| Travel | 2 x axial piston motors with parking brake |
| Swing | 2 x axial piston motors with swing holding brake |
| Drive method type | Fully hydrostatic |
| Maximum drawbar pull (kgf) | 42 300 |
| Maximum drawbar pull (lbs) | 93,250 |
| Service brake type | Hydraulic lock |
| Parking brake | Oil disc brake |
| High (mph) | 3 |
| High (kph) | 4.9 |
| Low (kph) | 3 |
| Low (mph) | 1.9 |
| Swing reduction | Planetary gear |
| Holding brake/Swing lock | Mechanical disc brake |
| Swing speed (rpm) | 8.3 |
| Operating weight features (ft) | Operating weight includes 25 ft. 2 in one-piece boom, 11 ft. 6 in arm, ISO 7451 heaped 3.53 yd3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment. |
| Operating weight features (mm) | Operating weight includes 7 660 mm one-piece boom, 3 500 mm arm, ISO 7451 heaped 2.70 m3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment. |
| Cooling Type | Water-cooled, 4-cycle, direct injection |
| Bore (mm) | 140 |
| Bore (in) | 5.51 |
| Stroke (in) | 6.50 |
| Stroke (mm) | 165 |
| Engine Rated (rpm) | 1,800 |
| Fan drive method for radiator cooling | Hydraulic |
| ISO 9249 / SAE J1349 - Net (kW) | 325 |
| Engine (L) | 48 |
| Fan at maximum speed - Net (HP) | 392 |
| Engine (US gal) | 12.7 |
| Fan at maximum speed - Net (kW) | 293 |
| Center frame | H-leg |
| Track frame | Box-section |
| Track adjuster | Hydraulic |
| Seal of track | Sealed |
| Drive method | 2 x hydraulic motors |
| Service brake | Oil disc brake |
| Swing torque (kg-m) | 21 369 |
| Swing torque (ft-lbs) | 154,481 |
| Swing drive (L) | 2 x 13 |
| Swing drive (US gal) | 2 x 3.4 |
| DEF tank (US gal) | 16.4 |
| DEF tank (L) | 62.2 |
| Exterior – ISO 6395 (dB(A)) | 104 |
| Operator – ISO 6396 (dB(A)) | 73 |
| Ground pressure with triple-grouser shoes 900 mm (kg/cm^2) | 0.73 |
| Operating weight with triple-grouser shoes 900 mm (kg) | 65 480 |
| Ground pressure with triple-grouser shoes 35.5 in (psi) | 10.3 |
| Operating weight with triple-grouser shoes 35.5 in (lbs) | 144,292 |
| Sub-pump for control circuit | Gear type |
| Ground pressure with triple-grouser shoes 24 in (psi) | 15.16 |
| Ground pressure with triple-grouser shoes 600 mm (kg/cm^2) | 1.07 |
| Ground pressure with triple-grouser shoes 30 in (psi) | 12.3 |
| Ground pressure with triple-grouser shoes 750 mm (kg/cm^2) | 0.86 |
| Operating weight with triple-grouser shoes 24 in (lbs) | 140,456 |
| Operating weight with triple-grouser shoes 30 in (lbs) | 142,396 |
| Operating weight with triple-grouser shoes 600 mm (kg) | 63 710 |
| Operating weight with triple-grouser shoes 750 mm (kg) | 64 590 |
