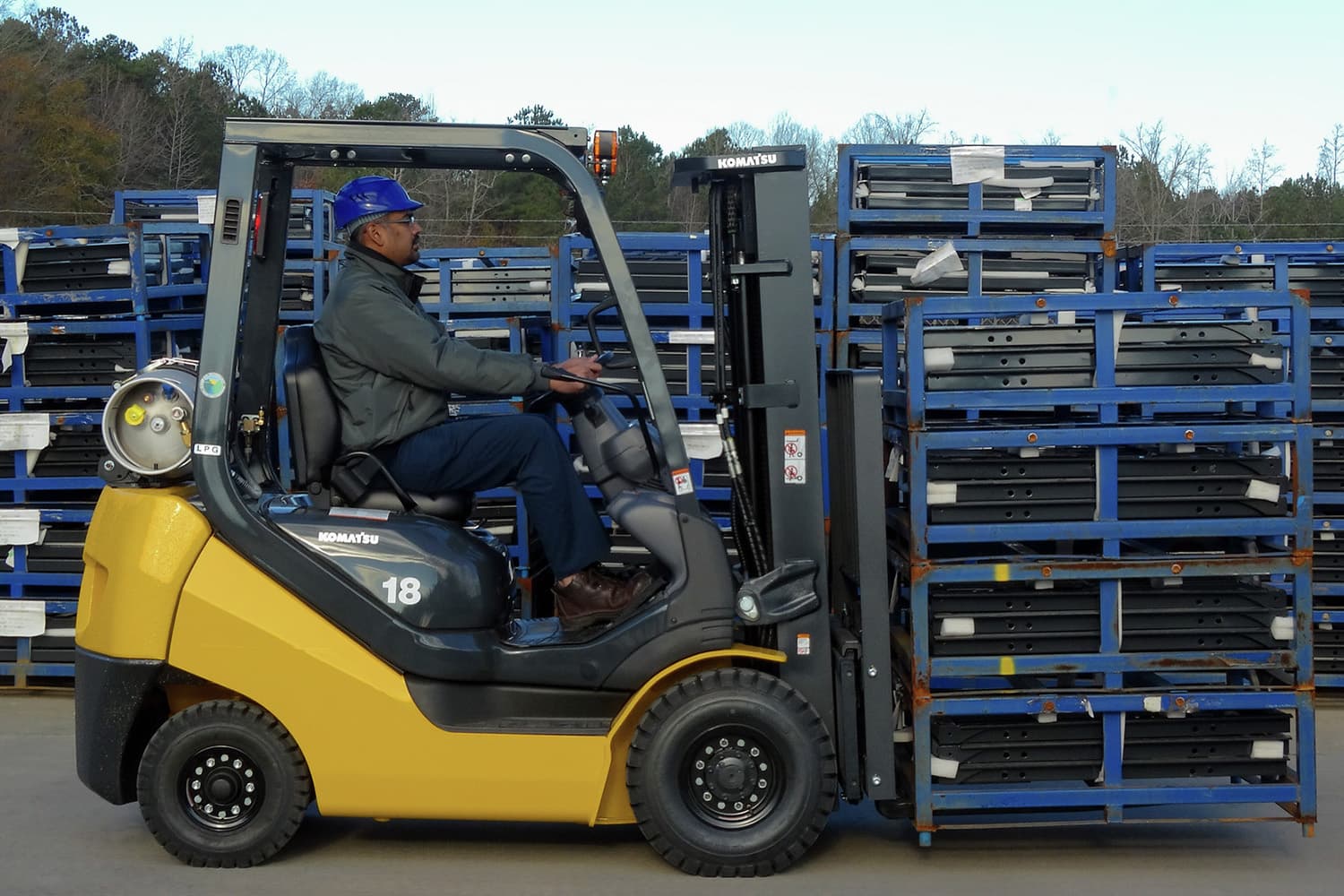

FG18HTU-20
رقم القطعة: KOMATSU-FG18HTU-20
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
FG18HTU-20
المواصفات
| Tire type | Pneumatic |
|---|---|
| Power type | LPG/Dual fuel |
| Capacity (kg) | 1 360 - 1 580 |
| Capacity (lbs) | 3,000 - 3,500 |
| Service weight (kg) | 2 875 |
| Service weight (lbs) | 6,340 |
| Axle loading - loaded front (lbs) | 8,470 |
| Axle loading - loaded front (kg) | 3 840 |
| Axle loading - loaded rear (kg) | 615 |
| Axle loading - loaded rear (lbs) | 1,355 |
| Axle loading - unloaded front (lbs) | 2,510 |
| Axle loading - unloaded front (kg) | 1 140 |
| Axle loading - unloaded rear (lbs) | 3,820 |
| Axle loading - unloaded rear (kg) | 1 735 |
| Maximum drawbar pull, loaded (lbs) | 3,700 |
| Maximum drawbar pull, loaded (kN) | 16.7 |
| Maximum gradeability (%) | 35 |
| Service brake, operation/control | Foot / Hydraulic |
| Parking brake, operation/control | Hand / Mechanic |
| Steering type | FHPS |
| Power source type | LPG / Dual Fuel |
| Operation type | Sit-Down |
| Capacity @ 600 mm load center (kg) | 1 580 |
| Capacity @ 24 in load center (lbs) | 3,500 |
| Load distance from center axle (2 stage)(in) | 15.4 |
| Load distance from center axle (2 stage)(mm) | 390 |
| Wheelbase (mm) | 1 400 |
| Wheelbase (in) | 55.1 |
| Height overhead guard (mm) | 2 070 |
| Height overhead guard (in) | 81.5 |
| Overall width at drive tires (in) | 42.1 |
| Overall width at drive tires (mm) | 1 070 |
| Forks, thickness x width x length (mm) | 40 x 100 x 1 070 |
| Forks, thickness x width x length (in) | 1.6 x 4 x 42.1 |
| Carriage width/ITa class (in) | 41 in / II |
| Carriage width/ITa class (mm) | 1 040 mm / II |
| Ground clearance, center of wheelbase (mm) | 130 |
| Ground clearance, center of wheelbase (in) | 5.1 |
| Ground clearance under mast (mm) | 140 |
| Ground clearance under mast (in) | 5.5 |
| Turning radius, outside (in) | 78.3 |
| Turning radius, outside (mm) | 1 990 |
| Length, with standard forks (mm) | 3 335 |
| Length, with standard forks (in) | 131.3 |
| Tire type details | Pneumatic |
| Number of wheels, front/rear | 2x / 2 |
| Tire size - front | 6.5 - 10 - 10PR (I) |
| Tire size - rear | 5 - 8 - 8PR (I) |
| Tread - front (in) | 35 |
| Tread - front (mm) | 890 |
| Tread - rear (mm) | 895 |
| Tread - rear (in) | 35.2 |
| Relief pressure, maximum (bar) | 182 |
| Relief pressure, maximum (psi) | 2,630 |
| Transmission | Powershift |
| Travel speed, forward, loaded/unloaded (kph) | 18.5 / 19 |
| Travel speed, forward, loaded/unloaded (mph) | 11.5 / 11.8 |
| Lifting speed, loaded/unloaded (2-stage mast) (fpm) | 116 / 126 |
| Lifting speed, loaded/unloaded (2-stage mast) (mm/s) | 590 / 640 |
| Lowering speed, loaded/unloaded (2-stage mast) (mm/s) | 500 / 550 |
| Maximum torque (SaE net)(Nm) | 159 Nm @ 1 600 rpm |
| Lowering speed, loaded/snloaded (2-stage mast) (fpm) | 98.4 / 108.3 |
| Maximum torque (SaE net)(lbs-ft) | 117 lbs.-ft. @ 1,600 rpm |
| Rated output (SaE Net) (HP) | 54 HP @ 2,700 rpm |
| Rated output (SaE Net) (kW) | 40 kW @ 2 700 rpm |
| Engine manufacturer / model | GCT / GK21 |
| Fuel tank capacity (L) | 40 |
| Fuel tank capacity (US gal) | 10.6 |
| Number of cylinders / Displacement (cm^3) | 4 / 2 065 |
| Number of cylinders / Displacement (in^3) | 4 / 126 |
| Tilting angle, 2-Stage (FV) masts, forward/backward | 6 / 8 |
| Tilting angle, 3-Stage (TFV) masts, forward/backward | 6 / 5 |
| Free lift height(2-stage std. mast) (mm) | 140 |
| Free lift height(2-stage std. mast) (in) | 5.5 |
| Length to fork face (2-stage mast) (in) | 89.2 |
| Length to fork face (2-stage mast) (mm) | 2 265 |
| Maximum fork height(2-stage std. mast) (mm) | 3 250 |
| Maximum fork height(2-stage std. mast) (in) | 128 |
| Mast height - extended(2-stage std. mast) (in) | 176 |
| Mast height - extended(2-stage std. mast) (mm) | 4 470 |
| Mast height - lowered (2-stage std. mast) (mm) | 2 170 |
| Mast height - lowered (2-stage std. mast) (in) | 85.5 |
| Right angle stacking aisle(2-stage mast w/o load length & clearance) †† (mm) | 2 380 |
| Right angle stacking aisle(2-stage mast w/o load length & clearance) †† (in) | 93.7 |
