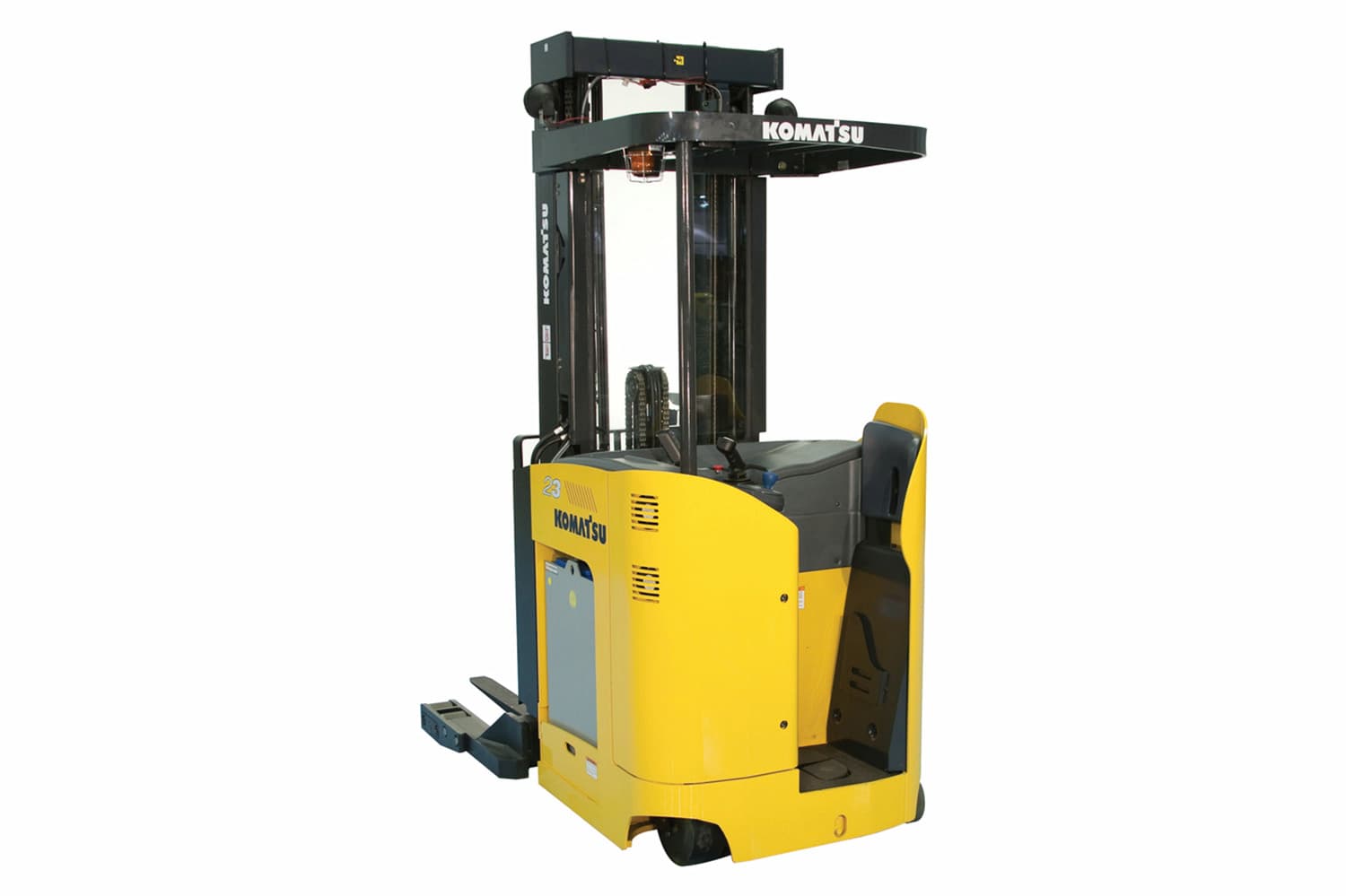

FR18K-3
رقم القطعة: KOMATSU-FR18K-3
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
FR18K-3
المواصفات
| Tire type | Cushion/solid pneumatic |
|---|---|
| Power type | Electric (36 V battery) |
| Capacity (kg) | 1 500 - 2 250 |
| Capacity (lbs) | 3,000 - 4,500 |
| Service weight (kg) | 2 725 |
| Service weight (lbs) | 6,005 |
| Drive motor (AC) (HP) | 8 |
| Drive motor (AC) (kW) | 6 |
| Pump motor (AC) (kW) | 14 |
| Pump motor (AC) (HP) | 18.8 |
| Power source type | Electric |
| Operation type | Stand-Up |
| Capacity @ 600 mm load center (kg) | 1 750 |
| Capacity @ 24 in load center (lbs) | 3,500 |
| Wheelbase (mm) | 1 500 |
| Wheelbase (in) | 59 |
| Height overhead guard (mm) | 2 375 |
| Height overhead guard (in) | 93.5 |
| Length to fork face (in) | 54.1 |
| Length to fork face (mm) | 1 375 |
| Forks, thickness x width x length (mm) | 40 x 100 x 1 070 |
| Forks, thickness x width x length (in) | 1.5 x 4 x 42 |
| Carriage width/ITa class (in) | 31.5 in / II |
| Carriage width/ITa class (mm) | 800 mm / II |
| Ground clearance, center of wheelbase (in) | 2 |
| Ground clearance under mast (mm) | 2 |
| Ground clearance under mast (in) | 50 |
| Right angle stacking aisle (mm) | 2 540 |
| Right angle stacking aisle (in) | 100 |
| Turning radius, outside (in) | 69.4 |
| Turning radius, outside (mm) | 1 760 |
| Free lift height (mm) | 1 195 |
| Free lift height (in) | 47 |
| Length, with standard forks (mm) | 2 445 |
| Length, with standard forks (in) | 96.1 |
| Mast height - extended (mm) | 6 615 |
| Mast height - extended (in) | 260.3 |
| Mast height - lowered (in) | 95 |
| Mast height - lowered (mm) | 2 415 |
| Maximum fork height (in) | 210 |
| Maximum fork height (mm) | 5 335 |
| Tire type details | Cushion/solid pneumatic |
| Battery weight, maximum (lbs) | 2,305 |
| Battery weight, maximum (kg) | 1 045 |
| Battery weight, minumum (lbs) | 2,060 |
| Battery weight, minumum (kg) | 935 |
| Lifting speed, loaded/unloaded (fpm) | 70 / 120 |
| Lifting speed, loaded/unloaded (mm/s) | 356 / 610 |
| Lowering speed, loaded/unloaded (mm/s) | 483 / 442 |
| Lowering speed, loaded/unloaded (fpm) | 95 / 87 |
| Tilting angle, forward/backward (deg) | 3 / 4 |
| Power steering motor (DC) (kW) | 0.4 |
| Power steering motor (DC) (HP) | 0.5 |
| Step height (in) | 9.3 |
| Step height (mm) | 235 |
| Overall width, truck frame (mm) | 1 090 |
| Overall width, truck frame (in) | 43 |
| Maximum reach stroke (in) | 22.8 |
| Maximum reach stroke (mm) | 580 |
| Overall width, outrigger I.D. (min-max) (mm) | 840 - 1 270 |
| Overall width, outrigger I.D. (min-max) (in) | 33-50 |
| Overall width, outrigger O.D. (min-max) (in) | 44-61 |
| Overall width, outrigger O.D. (min-max) (mm) | 1 120 - 1 550 |
| Travel speed loaded, forks leading/trailing (mph) | 6.4 / 7.2 |
| Travel speed loaded, forks leading/trailing (kph) | 10.3 / 11.6 |
| Travel speed unloaded, forks leading/trailing (mph) | 6.4 / 7.2 |
| Travel speed unloaded, forks leading/trailing (kph) | 10.3 / 11.6 |
| Battery capacity, maximum | 930 Ah/6hr |
| Battery compartment, height (mm) | 810 |
| Battery compartment, height (in) | 32 |
| Battery compartment, length (mm) | 415 |
| Battery compartment, length (in) | 16.4 |
| Battery compartment, width (mm) | 980 |
| Battery compartment, width (in) | 38.7 |
| Battery voltage | 36 V |
| Load wheel size - tandem polyurethrane x 2 (in) | 5 x 4 |
| Load wheel size - tandem polyurethrane x 2 (mm) | 127 x 100 |
| Caster wheel size - dual polyurethrane (mm) | 178 x 73 |
| Caster wheel size - dual polyurethrane (in) | 7 x 2.87 |
| Drive tire size - cushion rubber (in) | 13 x 5.5 |
| Drive tire size - cushion rubber (mm) | 330 x 140 |
