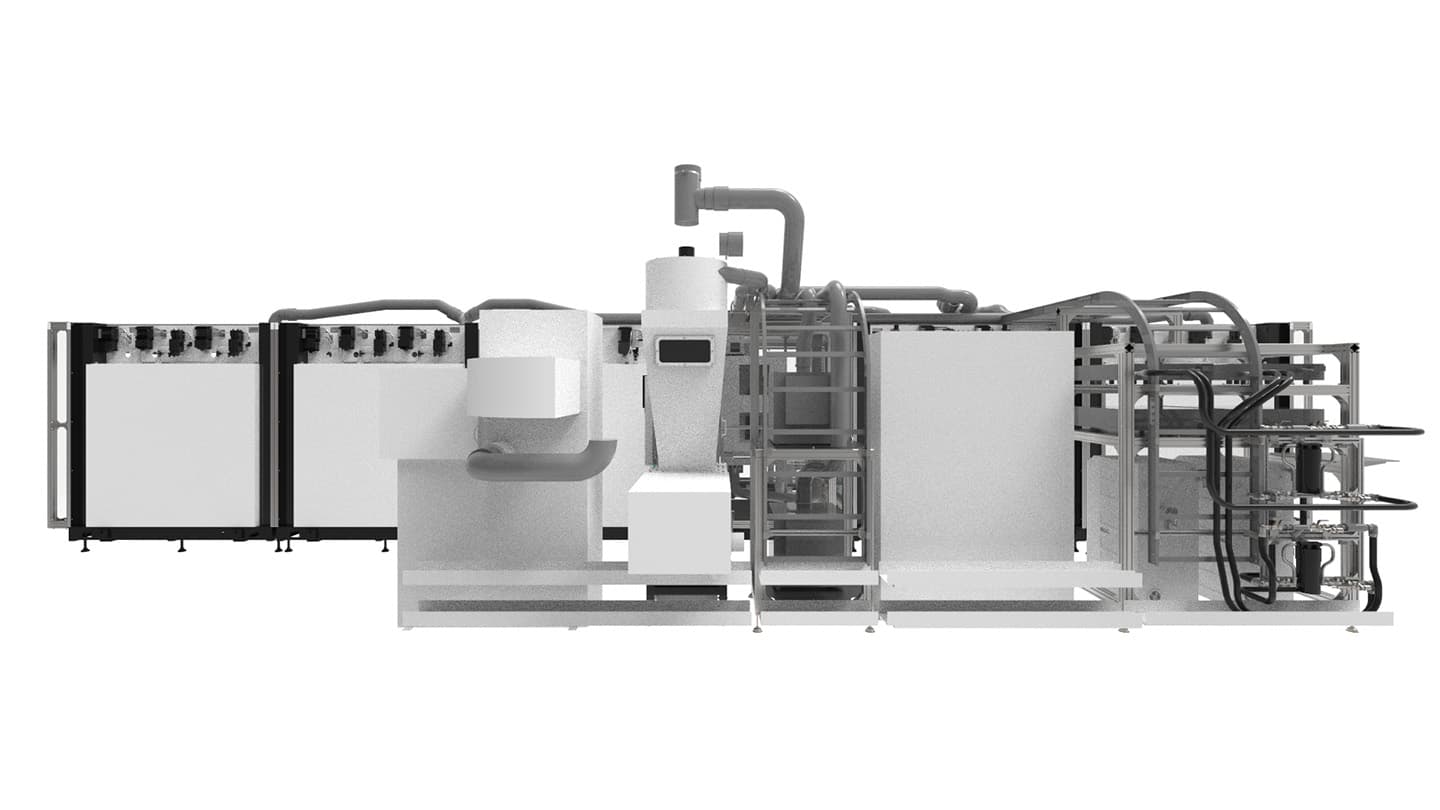

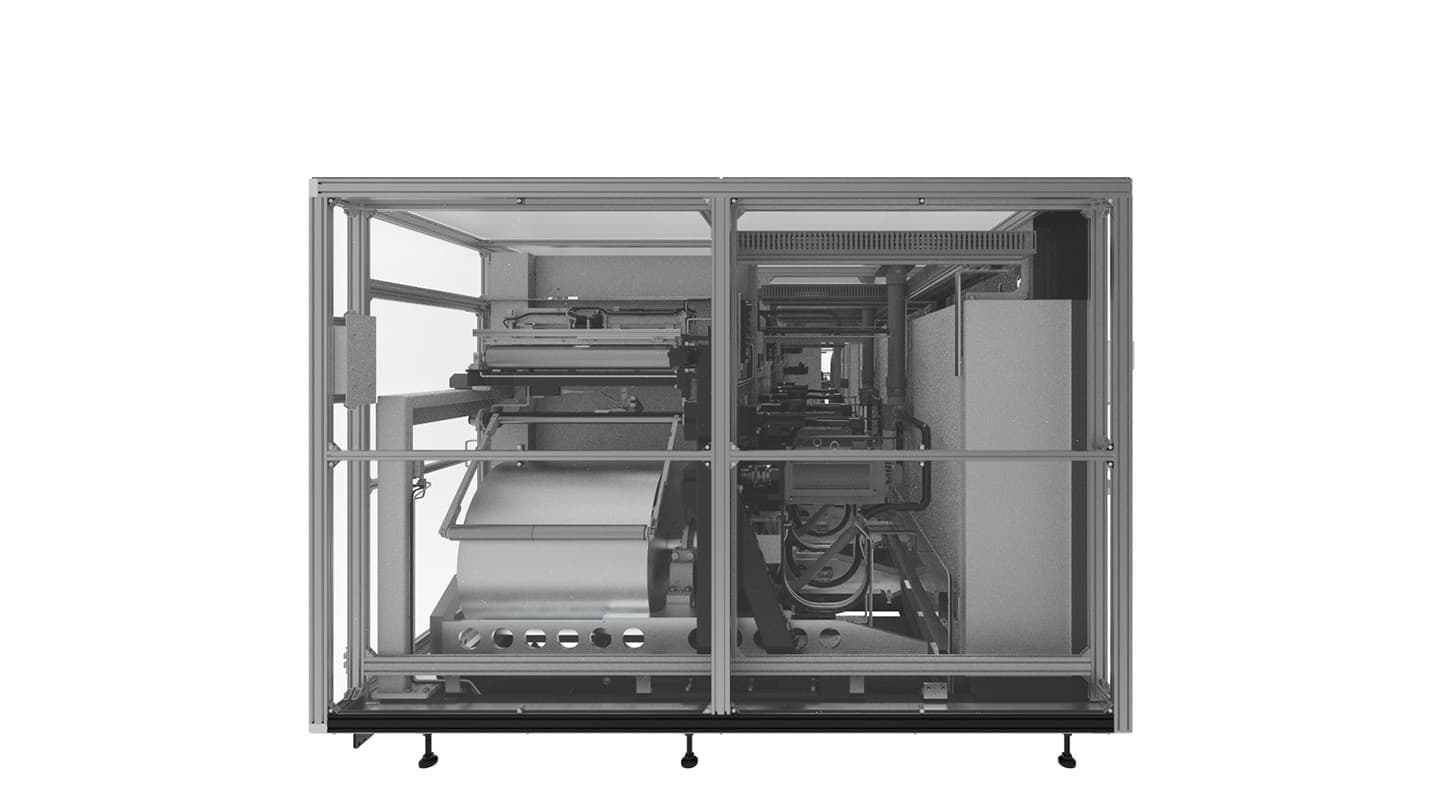

Tab forming equipment

Komatsu

Tab forming equipment

رقم القطعة: KOMATSU-TAB-FORMING-EQUIPMENT

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Tab forming equipment

المواصفات

ProcessUnwind/rewind, slitter, tab forming, examination
Max machining speed (ft/min)120
Max machining speed (m/min)394
Max oscillator output (HP)1.3
Max oscillator output (kW)1.0
Machining accuracy (mm)±0.25 (Tab Height, Tab pitch, Tab width), ±0.3 (Electrode width)
Machining accuracy (in)±0.01 (Tab Height, Tab pitch, Tab width), ±0.01 (Electrode width)
Work width (in)4.7-27.6
Work width (mm)120-700
Work roll diameter (mm)Φ700
Work roll diameter (in)27.6
Max workpiece weight (lbs)1,323
Max workpiece weight (kg)600
Tab height (in)0.2-(1.4)
Tab height (mm)5-(35)
Tab width (in)0.3-(3.1)
Tab width (mm)8-(80)
Distance between tabs (in)0.4-(15.7)
Distance between tabs (mm)10-(400)
Tension range (N)10-200
Machine size (W x L x H) (mm)11,000 x 2,000 x 3,000
Machine size (W x L x H) (in)433 x 79 x 118
