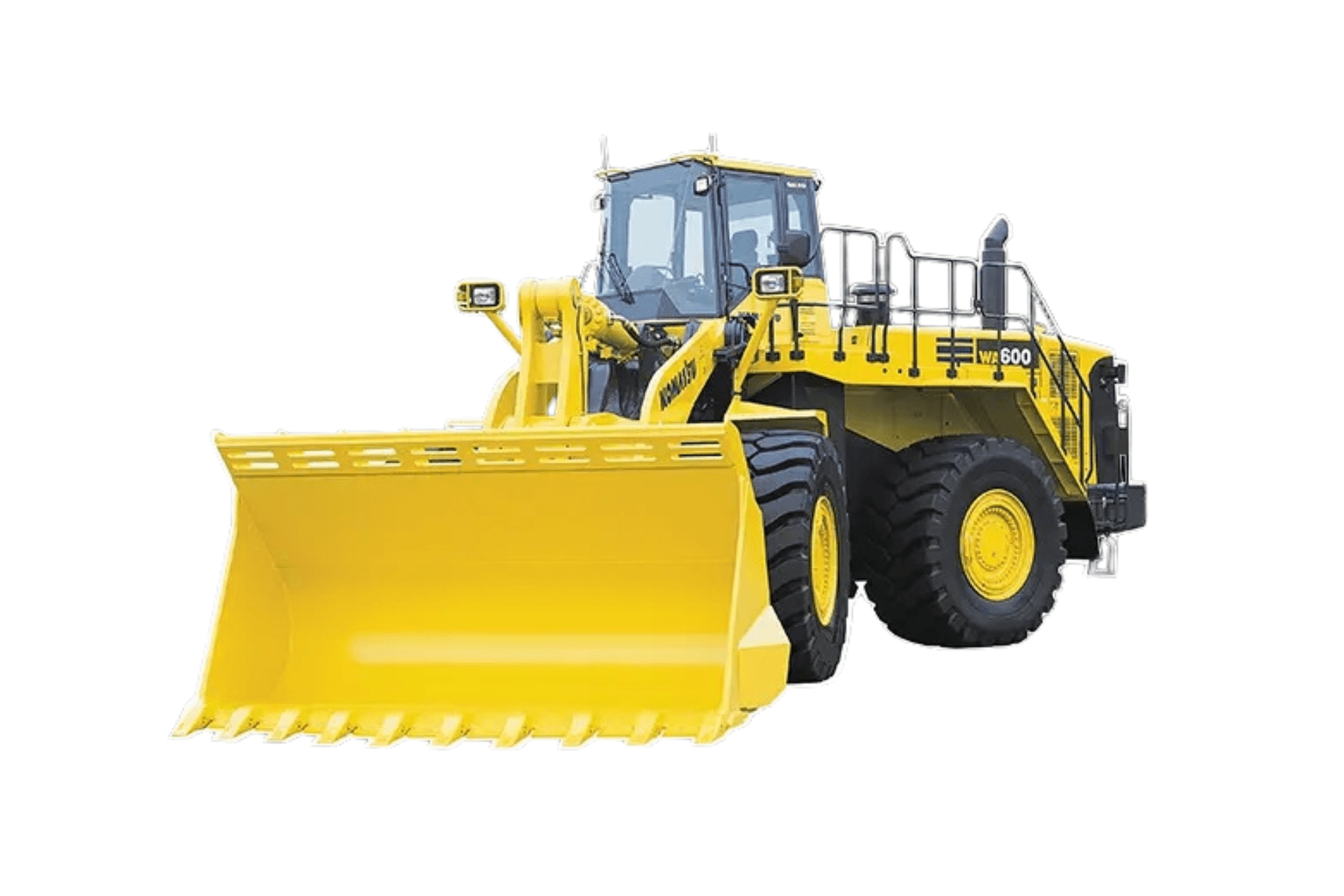

WA600-8 LC
رقم القطعة: KOMATSU-WA600-8-LC
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WA600-8 LC
المواصفات
| Operating weight (kg) | 57460 |
|---|---|
| Operating weight (lbs) | 126650 |
| Engine model | Komatsu SAA6D170E-7 |
| Aspiration | Turbo-charged, after-cooled, cooled EGR |
| Bore x stroke (in) | 3.94 x 19.13 |
| Bore x stroke (mm) | 100 x 486 |
| SAEJ1995 - Gross (kW) | 396 |
| SAEJ1995 - Gross (HP) | 530 |
| ISO 9249 / SAE J1349 - Net (HP) | 529 |
| Rated rpm | 1800 |
| Fuel tank (US gal) | 189.7 |
| Fuel tank (L) | 718 |
| Parking brake | Wet multiple-disc brake |
| Fan drive method for radiator cooling | Hydraulic |
| ISO 9249 / SAE J1349 - Net (kW) | 395 |
| Engine (L) | 86 |
| Engine (US gal) | 22.72 |
| Hydraulic system (US gal) | 117.04 |
| Hydraulic system (L) | 443 |
| Bucket capacity (m³) | 7.8 |
| Bucket capacity (yd³) | 10.2 |
| Engine power (HP) | 529 |
| Engine power (kW) | 395 |
| DEF tank (US gal) | 15.85 |
| DEF tank (L) | 60 |
| Cooling system (L) | 150 |
| Transmission | Automatic full-powershift, planetary type |
| Steering angle | 43° each direction |
| Torque converter | Three-elements, one-stage, two-phase |
| Steering system type | Articulated type, fully hydraulic power steering |
| Drive system | Four-wheel drive |
| Bore x stroke of engine (mm) | 170 x 170 |
| Bore x stroke of engine (in) | 6.69 x 6.69 |
| Hydraulic pump | Piston pump |
| Capacity (at rated rpm) (US gpm) | 43.1 |
| Capacity (at rated rpm) (L/min) | 163 |
| Number of cylinders in hydraulic cylinders | 2 |
| Axle front (US gal) | 48.87 |
| Axle front (L) | 185 |
| Axle rear (US gal) | 51 |
| Axle rear (L) | 193 |
| Secondary brake | One of the dual service brake circuits is commonly used |
| Front Axle | Fixed, full-floating |
| Axle Rear | Centre-pin support, full-floating, 22° total oscillation |
| Final reduction gear | Planetary gear, single reduction |
| Differential gear | Conventional type |
| Reduction gear | Spiral bevel gear |
| Torque converter and transmission (US gal) | 20.6 |
| Torque converter and transmission (L) | 78 |
| Breakout force standard (kN) | 355 |
| Cooling system (US gal) | 39.63 |
| Static tipping load, straight (kg) | 43265 |
| Bucket capacity SAE (m³) | 6.4 - 7.8 |
| Bucket capacity SAE (yd³) | 8.4 – 10.2 |
| Static tipping load, straight (lbs) | 95385.7 |
| Dump clearance at 45° dump angle (mm) | 3615 |
| Dump clearance at 45° dump angle (in) | 142.4 |
| Standard bucket capacity SAE (yd³) | 10.2 |
| Standard bucket capacity SAE (m³) | 7.8 |
| Bucket width (in) | 149.8 |
| Bucket description | Load and carry bucket |
| Dump reach at 45° dump angle (in) | 78.7 |
| Bucket width (mm) | 3805 |
| Dump reach at 45° dump angle (mm) | 2000 |
| Static tipping load, full turn (lbs) | 81741.7 |
| Static tipping load, full turn (kg) | 37080 |
