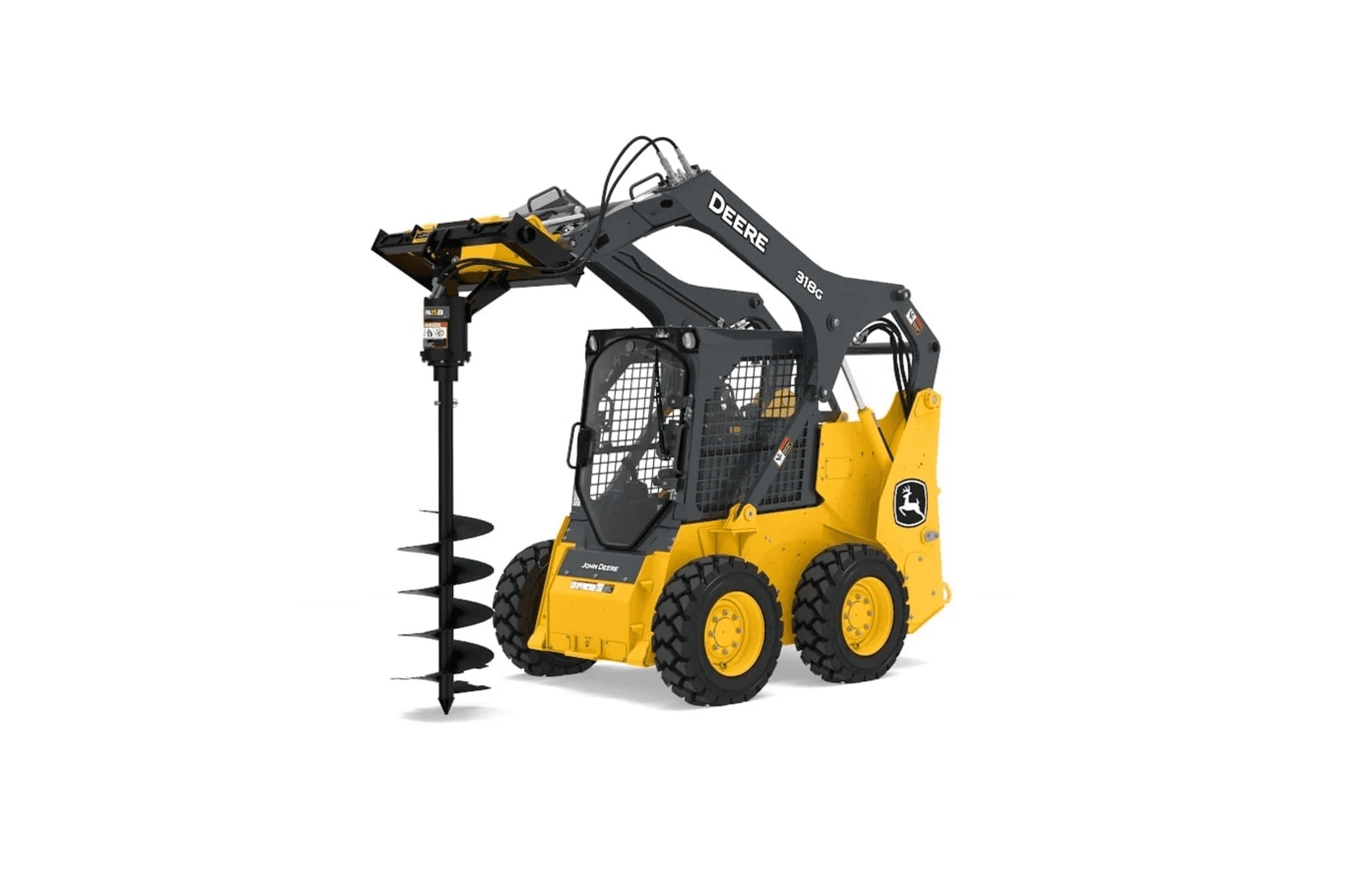

PA15B Planetary Drive Auger Compact Equipment Attachment

Name: PA15B Planetary Drive Auger Compact Equipment Attachment
Brand: John Deere
SKU: JOHNDEERE-03V1T

رقم القطعة: JOHNDEERE-03V1T

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

PA15B Planetary Drive Auger Compact Equipment Attachment

Model	PA15B Planetary Drive Auger
Base Code	03V1T
Division	construction-equipment
Product Family	construction-attachments
Weight (without mounting bracket)	61 kg (134 lb.)
Motor Displacement	160 cc/rev (9.7 cu. in./rev.)
Hydraulic Flow / Minimum	23 L/min. (6 gpm)
Hydraulic Flow / Maximum	64 L/min. (17 gpm)
Hydraulic Flow / Maximum Operating Pressure	24 100 kPa (3,500 psi)
Hydraulic Flow / Planetary Gear Ratio	3.8:1
Hydraulic Flow / Planetary Maximum Torque Rating	5650 Nm (4,166 ft.-lb.)
Hydraulic Flow / Output Shaft	51-mm (2 in.) hexagon
Hydraulic Flow / Output Torque	2320 Nm (1,713 ft.-lb.)
Output Speed / 23 L/min. (6 gpm)	38 rpm
Output Speed / 30 L/min. (8 gpm)	50 rpm
Output Speed / 38 L/min. (10 gpm)	63 rpm
Output Speed / 45 L/min. (12 gpm)	75 rpm
Output Speed / 57 L/min. (15 gpm)	94 rpm
Output Speed / 68 L/min. (18 gpm)	—
Output Speed / 76 L/min. (20 gpm)	—
Output Speed / 106 L/min. (28 gpm)	—
Output Speed / 114 L/min. (30 gpm)	—
Output Speed / 124 L/min. (33 gpm)	—
Output Speed / 136 L/min. (36 gpm)	—
Output Speed / 148 L/min. (39 gpm)	—
Output Speed / 159 L/min. (42 gpm)	—
Output Speed / Maximum Auger Bit Diameter	610 mm (24 in.)
Output Speed / Overall Auger Bit Length	1220 mm (48 in.)
Output Speed / Vehicle Compatibility	316 P-Tier and 318 P-Tier SSLs; 317 P-Tier CTL; 17 P-Tier, 26 P-Tier, 30 P-Tier, and 35 P-Tier CEXs *Requires skid-steer-style Quik-Tatch™ coupler for operation. / † Requires machine equipped with high-flow hydraulics.
	
316 P-Tier 317 P-Tier 318 P-Tier 320G 	
