John Deere

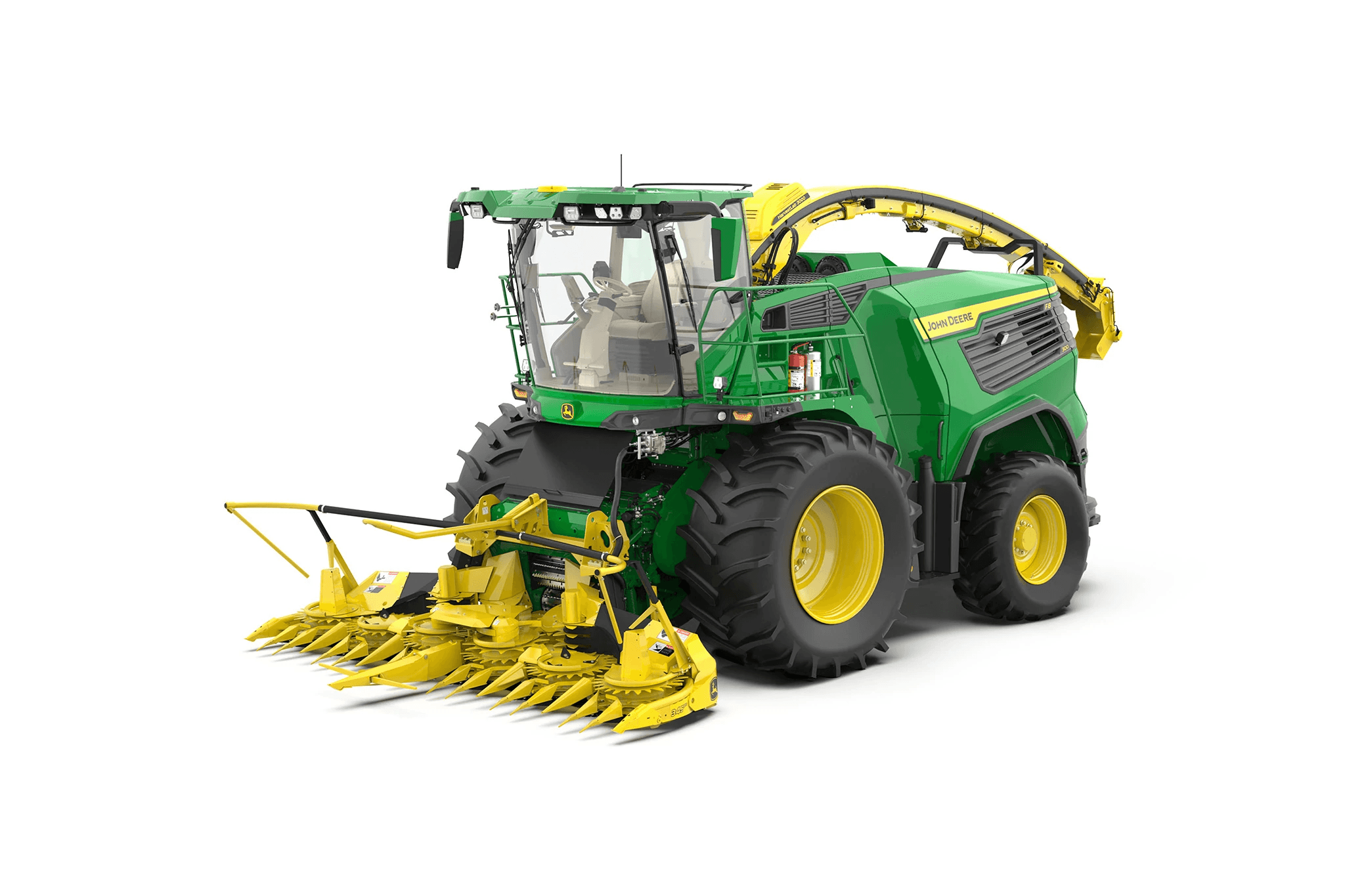

F8 300 Self Propelled Forage Harvester

Name: F8 300 Self Propelled Forage Harvester
Brand: John Deere
SKU: JOHNDEERE-303BZ

رقم القطعة: JOHNDEERE-303BZ

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

F8 300 Self Propelled Forage Harvester

المواصفات

Model	F8 300
Base Code	303BZ
Division	hay-and-forage-equipment
Product Family	harvesting
Engine Specifications / Engine	John Deere JD14X 6136
Engine Specifications / Type	Inline 6-cylinder, wet liners, valve-in-head, turbocharged, air-to-air intercooled
Engine Specifications / Engine Power (ECE R120) kW (PS) (hp)	372 kW (505 PS) (448 hp)
HarvestMotion™ Plus / Displacement	13.55 l (827 in³)
HarvestMotion™ Plus / Cylinder Bore	132 mm (5.20 in)
HarvestMotion™ Plus / Cylinder Stroke	165 mm (6.50 in.)
HarvestMotion™ Plus / Turbocharger	Single-stage turbo (SST)
HarvestMotion™ Plus / Rated Engine RPM	2000 rpm
HarvestMotion™ Plus / Fuel System	High-pressure common rail fuel system
HarvestMotion™ Plus / Exhaust Emission Regulation Compliance	Final Tier 4/Stage V (Tier 3/Stufe III A)
HarvestMotion™ Plus / Exhaust Emission Regulation	DOC+DPF+SCR (Stage V), DOC+SCR (Final Tier 4), No exhaust aftertreatment (Tier 3/Stufe III A)
HarvestMotion™ Plus / Maintenance Interval	500h
HarvestMotion™ Plus / Fuel Tank	Standard - 1100 l (290 gal), Option - 1450 l (383 gal)
HarvestMotion™ Plus / DEF Tank (Final Tier 4/Stage V engine)	151 l (39.9 gal)
HarvestMotion™ Plus / Engine Cooling Fan Drive	Fixed fan drive
HarvestMotion™ Plus / Engine Cooling Screen Cleaning System	Rotary radiator screen with active suction blower
HarvestMotion™ Plus / Air Compressor	Optional 1 Cylinder 350cc, water cooled 2 Cylinder 720cc, water cooled
HarvestMotion™ Plus / Lubrication	Standard: Central Grease System
Driveline / Main Clutch	Hydraulically operated dry-type disk clutch with 2 clutch disks
Driveline / Main Drive Belt	5 grooves
Driveline / Main Clutch Start	Hydraulic
Ground drive / Transmission	Two-speed transmission (ProDrive™ 2Shift) & (ProDrive™)
Ground drive / Maximum Travel Speeds	20 km/h (12.5 mph) in field mode, 40 km/h (24.8 mph) in road mode
Ground drive / Brakes	Electro-hydraulically operated wet disk-type
Ground drive / Rear Axle	Medium-duty (8.5 t) two-wheel drive Medium-duty (8.5 t) four-wheel drive Heavy-duty (11.5 t) four-wheel drive
Electrical System / Alternators	12 V, 90—200 A
Electrical System / Battery	2x 154 Ah (in parallel)
Header Connection / Infinitely Variable Header Drive	Standard
Header Connection / Lateral Pivoting Frame	Standard
Header Connection / Multicoupler	Standard
Header Connection / Automatic PTO Coupler	Optional
Header Connection / Float Mode	Standard
Header Connection / Header Height Control	Optional Automatic Header Control (AHC)
Header Connection / Gras-Pickups (Transport Width)	3.0 m, 3.49 m, 4.0 m, 4.5 m, 4.6 m
Header Connection / Corn Headers	6, 8, 10 or 12 row (4.5 m, 6.0 m, 7.5 m or 9.0 m working width)
Feeding System/Feedrolls / Feedroll Frame Opening	Swing away, 37-45 degree (angle) / V-Opening
Feeding System/Feedrolls / Number of Feedrolls	Four
Feeding System/Feedrolls / Metal Detector	Standard
Feeding System/Feedrolls / Stone Detector	Optional
Feeding System/Feedrolls / Feedroll Options	Spiral Upper Front Feedroll (optional) Heavy Duty Lower Front Feedroll (optional) Aggressive Upper Rear Feedroll (optional)
Feeding System/Feedrolls / Crop Flow Channel Width	660 mm
Feeding System/Feedrolls / Hydraulic Drive with Infinitely Variable	Standard
Cutterhead / Cutterhead (width/diameter)	680 mm / 670 mm
Cutterhead / Speed at Rated Engine Speed	1,100 rpm / 1,200 rpm (Option)
Cutterhead / Number of Knives	40 – 48 – 56 – 64
Cutterhead / Knife Types Available (Crop Type)	Straight (grass / universal) Curved (corn)
Cutterhead / Shearbar Options	Grass, Corn, Dura Line Corn, Dura Line Plus
Cutterhead Options / 40-knife Cutterhead	7-26 mm LOC in 1 mm steps/ 1,100 rpm
Cutterhead Options / 48-knife Cutterhead	6-22 mm LOC in 1 mm steps/ 1,100 rpm 5-19 mm LOC in 1 mm steps/ 1,100 rpm
Knife Sharpening System / Reverse Sharpening	4-17 mm LOC in 1 mm steps/ 1,200 rpm Standard
Knife Sharpening System / Sharpening Startup	Remote from cab
Knife Sharpening System / Sharpening Modes	Grinding and finishing
Kernel Processor / Kernel Processor Type	Ultimate 250 ™ KP, XStream 305 ™ KP
Kernel Processor / Quick Removal KP System	Crane with remote controlled electric hoist
Ultimate250™ / Lubrication	Grease
Ultimate250™ / Roll Diameter	250mm
Ultimate250™ / Speed Differential	32% (option) 40% (standard) 50% (option) (standard for XCut)
Ultimate250™ / Corn, Duraline Sawtooth	115/150 or 150/150
Ultimate250™ / Corn, Dura Line™ XCut	115/150
XStream305 ™ / Lubrication	Pressurized oil
XStream305 ™ / Roll Diameter	305 mm
XStream305 ™ / Speed Differential	40% or 50% 50% standard on Small Grains KP
XStream305 ™ / Corn, Duraline Sawtooth	150/180 or 180/200
XStream305 ™ / Corn, Duraline Xcut	150/180
XStream305 ™ / Small Grains KP	Toothcount N/A (used for sorghum, milo, etc.)
Blower/Crop Accelerator / Rotor Diameter/House Width	620 mm / 560 mm
Blower/Crop Accelerator / Number of Paddles	10
Blower/Crop Accelerator / Speed	1890 rpm
Spout / Rotation, Degrees	210° (optional with Spout Angle Plus 230°)
Spout / Reach from Center Line (Option)	6 or 8 row- 4.73 m (15.5 ft.) 10 row- 5.87 m (19.3 ft.) 12 row - 6.71 m (22ft)
Spout / Working Height (Maximum)	6.60 m
Spout / Spout Camera	Optional
Spout / Active Fill Control	Optional
Cab / Panoramic View Window	Standard
Cab / Touchscreen-Display	PLUS G5
Cab / Secondary Display (Optional)	G5 PLUS Extended Monitor
Cab / Refrigerator	Standard
Cab / Radio	AM/FM Basic with Bluetooth ® (Standard) 6.5" Touchscreen AppRadio (Optional)
Precision Ag Solutions / Yield Monitoring	Harvest Monitor™ - Optional
Precision Ag Solutions / Documentation	Harvest Doc™ - Optional
Precision Ag Solutions / Crop Analysis	Optional with HarvestLab™
Precision Ag Solutions / Cutting Length Adjustment	AutoLoc™ optional with HarvestLab™
Precision Ag Solutions / Guidance	Optional: AutoTrac™ / Manual RowSense™ / AutoTrac™ RowSense™/Machine Sync
Machine Width / 3.3 m (10.8 ft)	800/70 R38 800/70 R42
Machine Width / 3.5 m (11.5 ft)	900/60 R42 710/70 R42
Machine Width / Wide Stance/Over 3.5 m (11.5 ft)	800/70 R38 800/70 R42 900/60 R42 Duals 520/85 R46
Machine Width / Rear Tires	620/70 R30 650/60 R34 620/70 R30 620/75 R30 750/65 R26 710/60 R30
Machine Dimensions / Transport Length (without header)	750/65 R26 6.87 m (22 ft 6.3 in)
Machine Dimensions / Transport Height (to cab roof)	3.93 m (9 ft 10.1 in)
