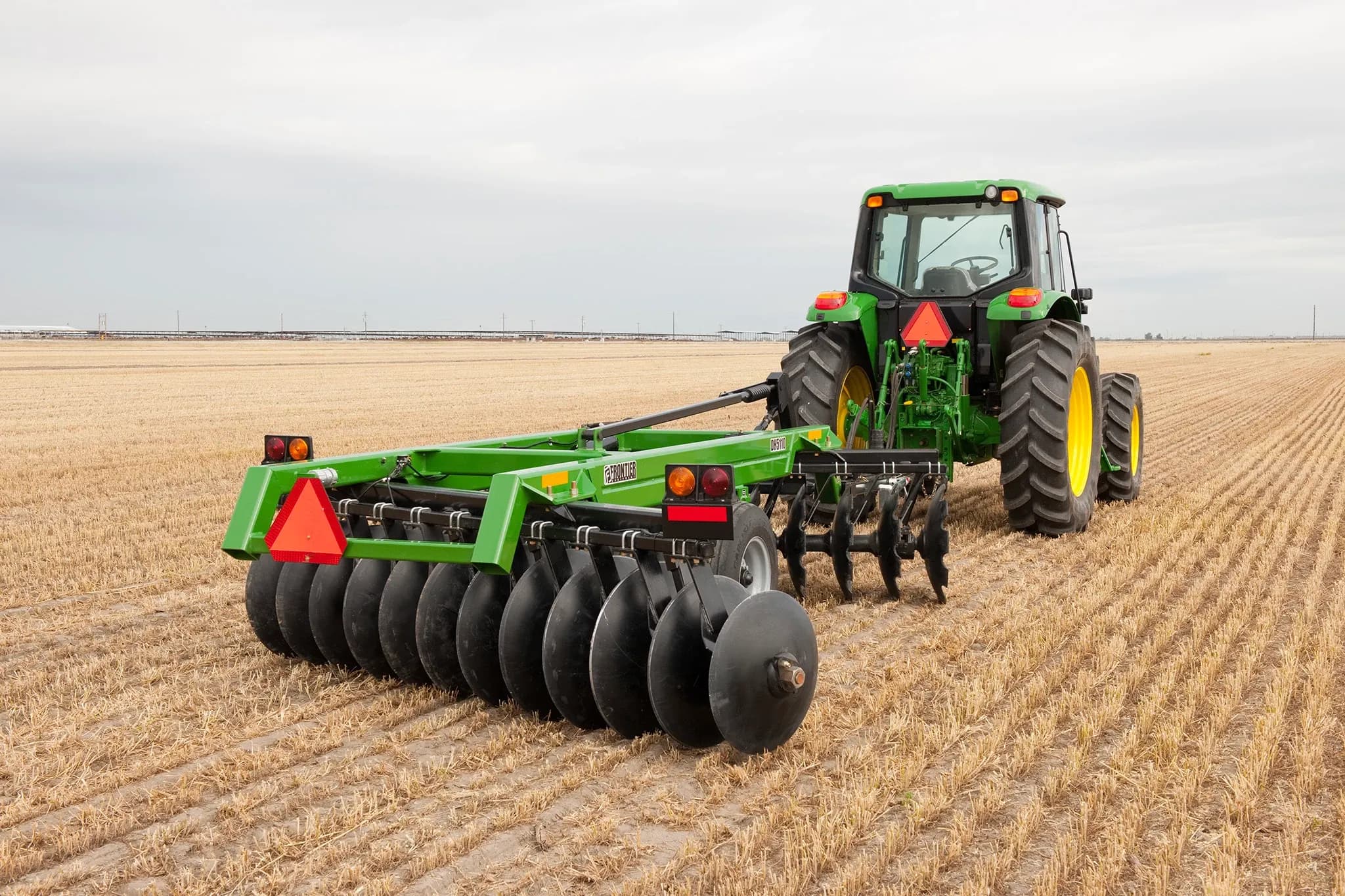

DH5110 Offset Disk

Name: DH5110 Offset Disk
Brand: John Deere
SKU: JOHNDEERE-3572XF

رقم القطعة: JOHNDEERE-3572XF

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

DH5110 Offset Disk

Model	DH5110
Base Code	3572XF
Division	tractors
Product Family	tractor-attachments-and-implements
Number / Duty class	General purpose
Number / PTO Horsepwer	106 - 129 hp
Number / requirements	(79 - 96 kW)
Number / Drawbar	90 - 110 hp
Number / horsepower requirements	(67 - 82 kW)
Number / Front hitch type	Spade
Number / Working width	10 ft. (3 m)
Number / Transport width	11 ft. (3.4 m)
Number / Operating weight	5,925 lb. (2,687.5 kg)
Number / Weight per	282 lb.
Number / disk blade	(127.9 kg)
Number / Number of blades	23
Number / Maximum	9 in.
Number / penetration	(22.9 cm)
Number / Blade spacing	10.5 in. (26.7 cm)
Number / Notched (front)/ notched (rear)	Standard
Number / Smooth (front)/ smooth (rear)	Optional
Number / Notched (front)/ smooth (rear)	Optional
Number / Blade size	26 x .31 in.
Number / option 1	(66 x 0.8 cm)
Number / option 2	(71.1 x 0.8 cm)
Number / Blade size option 3	N/A
Number / Frame type	Single offset rigid
Number / Wheel hub	Dual tapered
Number / bearings	roller bearings
Number / Tires	4 Implement
Number / Tire size	9.5 L x 15 in. (38.1 cm) 8 ply
Number / Tire wheel hub type	6 bolt
Number / Disks gang	1.63 or 2.13 in.
Number / axle size	(4.1 or 5.4 cm)
Number / Warranty 1	1 year
