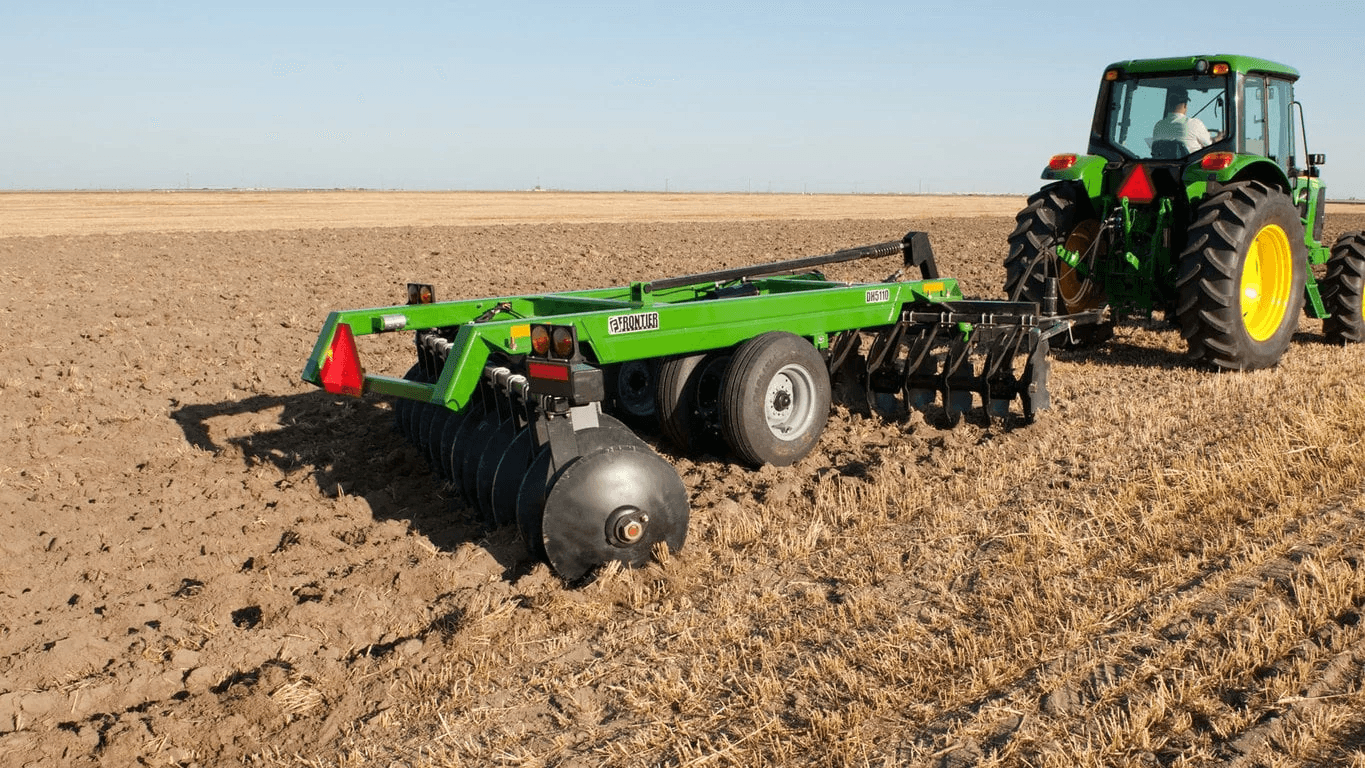

DH5212 Offset Disk

Name: DH5212 Offset Disk
Brand: John Deere
SKU: JOHNDEERE-3582XF

رقم القطعة: JOHNDEERE-3582XF

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

DH5212 Offset Disk

Model	DH5212
Base Code	3582XF
Division	tractors
Product Family	tractor-attachments-and-implements
Number / Duty class	Medium duty
Number / PTO Horsepwer	129 - 159 hp
Number / requirements	(96 - 118 kW)
Number / Drawbar	110 - 135 hp
Number / horsepower requirements	(82 - 101 kW)
Number / Front hitch type	Spade
Number / Working width	12 ft. (3.7 m)
Number / Transport width	13 ft. (4 m)
Number / Operating weight	7,900 lb. (3,583.4 kg)
Number / Weight per	316 lb.
Number / disk blade	(143.3 kg)
Number / Number of blades	27
Number / Maximum	9 in.
Number / penetration	(22.9 cm)
Number / Blade spacing	10.5 in. (26.7 cm)
Number / Notched (front)/ notched (rear)	Standard
Number / Smooth (front)/ smooth (rear)	Optional
Number / Notched (front)/ smooth (rear)	Optional
Number / Blade size	26 x .312 in.
Number / option 1	(66 x 0.8 cm)
Number / option 2	(71.1 x 0.8 cm)
Number / Blade size option 3	N/A
Number / Frame type	Single offset rigid
Number / Wheel hub	Dual tapered
Number / bearings	roller bearings
Number / Tires	4 Implement
Number / Tire size	11 L x 15 in. (38.1 cm) 8 ply
Number / Tire wheel hub type	8 bolt
Number / Disks gang	1.63 or 2.13 in.
Number / axle size	(4.1 or 5.4 cm)
Number / Warranty 1	1 year
