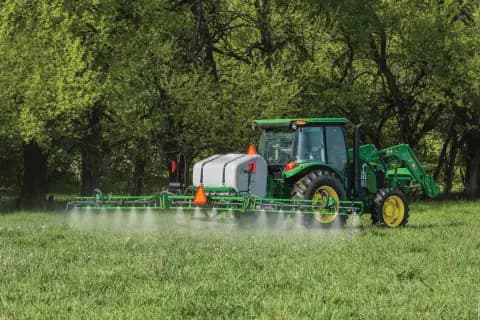

LS1130BL 3-Point Mounted Sprayer

Name: LS1130BL 3-Point Mounted Sprayer
Brand: John Deere
SKU: JOHNDEERE-7383XF

رقم القطعة: JOHNDEERE-7383XF

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

LS1130BL 3-Point Mounted Sprayer

Model	LS1130BL
Base Code	7383XF
Division	tractors
Product Family	tractor-attachments-and-implements
Operating Weight	2,730 lb. (1,238.3 kg)
Pump	PTO or Hydraulic
Transport width	6.9 ft. (2.10 m)
Hitch	Category 2 and 3, 3-point hitch with quick-hitch
Working width	Up to 30 ft. (9.14 m)
Frame	Tube
Tractor hp minimum	50 hp (37.3 kW)
Boom structure	Boom-less
Boom: fold	—
Boom: line	—
Boom: breakaway	—
Application nozzle type	—
Application nozzle tip	Hypro XT-Boom Xtender XT020
Application width	Up to 30 ft. (9.14 m)
Dry weight: 250 gal. (33.42 cu. ft.) / 300 gal. (40.1 cu. ft.)	635 lb. (288.0 kg) / 650 lb. (294.8 kg)
Available options	—
Warranty 1 1 Hour and/or usage limitations may apply. See Warranty for new John Deere Agricultural E	1 year
Speed: application	4 - 10 mph (6.4 - 16.1 km/h)
Speed: transport	25 mph (40 km/h) max
Application nozzle spacing	Off center; 20 in. (50.8 cm)
Tank size	250 gal. (33.42 cu. ft.) or 300 gal. (40.1 cu. ft.)
Safety features: lights	Installed transportaion
Safety features: Stand	Fully integrated with pallet fork insert
