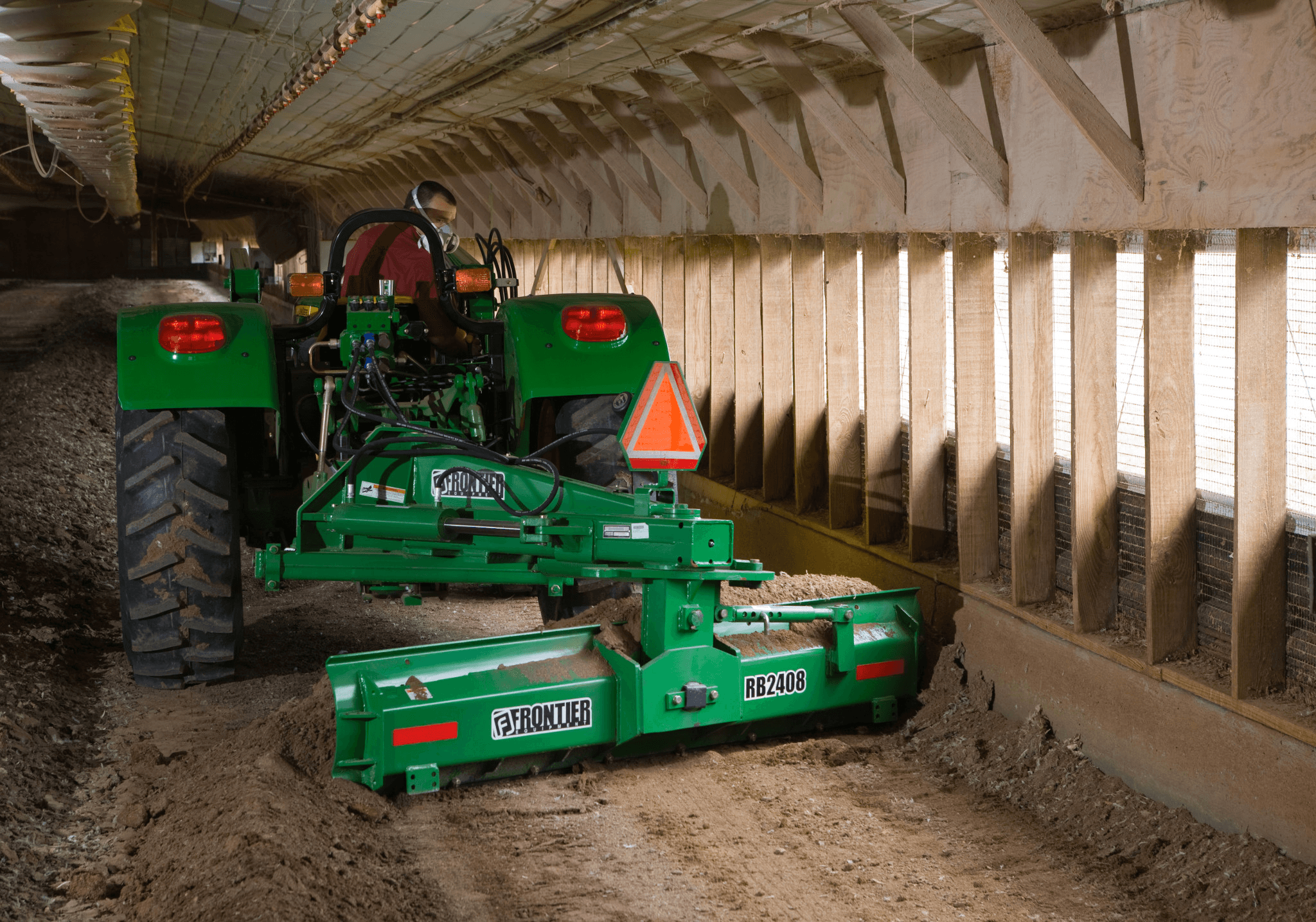

RB2408 Rear Blade

Name: RB2408 Rear Blade
Brand: John Deere
SKU: JOHNDEERE-1331XF

رقم القطعة: JOHNDEERE-1331XF

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

RB2408 Rear Blade

Model	RB2408
Base Code	1331XF
Division	tractors
Product Family	tractor-attachments-and-implements
Tractor horsepower	4WD: 145 (108.1 kW) hp max. Category 2/3
Duty	Heavy-plus
Angle/pivot	360°
Frame	Formed steel channel frame
Cutting edge	0.5 x 6 in. (1.3 x 15.2 cm), reversible
Moldboard	Heavy-duty, dozer-type construction
Moldboard thickness	5/16, .3125 in. (7.9 mm) 1,451 lb. (658.2 kg) [1,499 lb. (679.9 kg) ]
Moldboard height	19 in. (48.3 cm)
Parking stand	Standard
Warranty 2	1 year accessories available at an additional cost that may not be available in all regions. CONTACT YOUR LOCAL JOHN DEERE DEALER FOR DETAILS. Frontier Equipment reserves the right to change specifications and design of
Angle, tilt, & offset adjustments	(1 hydraulic remote required); Manual tilt & offset, hydraulic angle optional hydraulic angle, tilt, & offset (up to 3 hydraulic remotes required)
Grading & leveling	Heavy grading and snow removal
Forward angle positions	Right: 4, up to 26 degrees; left: 5, up to 38 degrees. (0-43 degrees each side 3 )
Reverse angle positions	Right: 4, up to 26 degrees; left: 5, up to 38 degrees. (0-43 degrees each side 3 )
Tilt positions	2, up to 15 degrees up or down 3 (0-12 degrees, up or down )
Offset	Right: 0-28 in. (0-71.1 cm); left: 0-26 in. (0-66.04 cm) [0-36 in. (0-91.4 cm) left or right 3 ]
Skid shoe bundle	Optional
