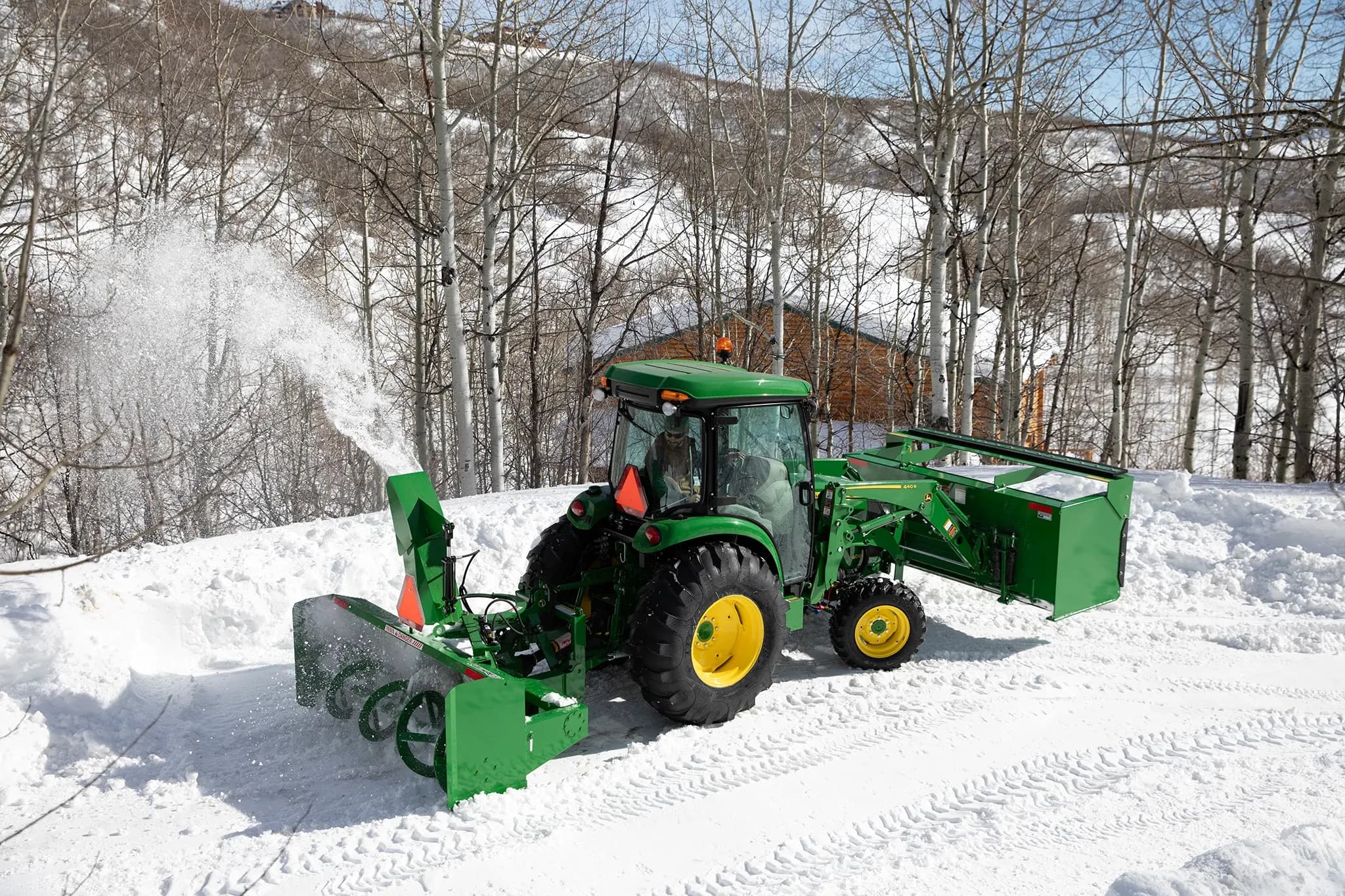

SB1194 Snowblower
رقم القطعة: JOHNDEERE-3806XF
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
SB1194 Snowblower
المواصفات
| Model | SB1194 |
|---|---|
| Base Code | 3806XF |
| Division | tractors |
| Product Family | tractor-attachments-and-implements |
| Tractor PTO speed | 540 RPM |
| Transport width | 96 in. (243.8 cm) |
| Length | 55.4 in. (140.6 cm) |
| Auger Diameter | 20 in. (50.8 cm) |
| Working Height | 35 in. (88.9 cm) |
| Working width | 94 in. (238.8 cm) |
| Cutting edge | Welded |
| Warranty* | 2-year gearbox |
| Hitch compatibility | Cat. 2 Quick Hitch |
| 4 | 1-year machine |
| Steel skid shoes | Adjustable and replaceable |
| Park Stand | Standard |
| Chute type | Two part |
| Chute deflector | Manual standard |
| Optional deflector adjustment 1 | 3000 psi. (14,647 kPa) Hydraulic cylinder (or electric on cab only) |
| Chute rotation | 225 degrees manual 205 degrees hydraulic |
| Drum rotation | — |
| Roller chain | #60H |
| Chain idler adjustment | Manual |
| Chute diameter | 12 in. (30.5 cm) |
| Optional secondary auger diameter | — |
| Auger speed | 200 RPM |
| Impeller speed | 540 RPM |
| Impeller blades | 4 |
| Impeller diameter | 28 in. (71.1 cm) |
| Minimum tractor HP | 40 PTO HP |
| Maximum tractor HP | 80 PTO HP |
| Auger overload protection | Shearbolt |
| PTO overload protection | Shearbolt |
| Operating weight 3 | 1231 lb. (558.4 kg) |
| Shipping weight | 1173 lb. (532.1 kg) |
| Set-up time | 45 min. |
| 1 Optional Electric Deflector available for cab tractors only - SB11 Series | 4 Hour and/or usage limitations may apply. See Warranty for new John Deere Agricultural Equipment or contact your local dealer for details. 5 This literature has been compiled for worldwide |
