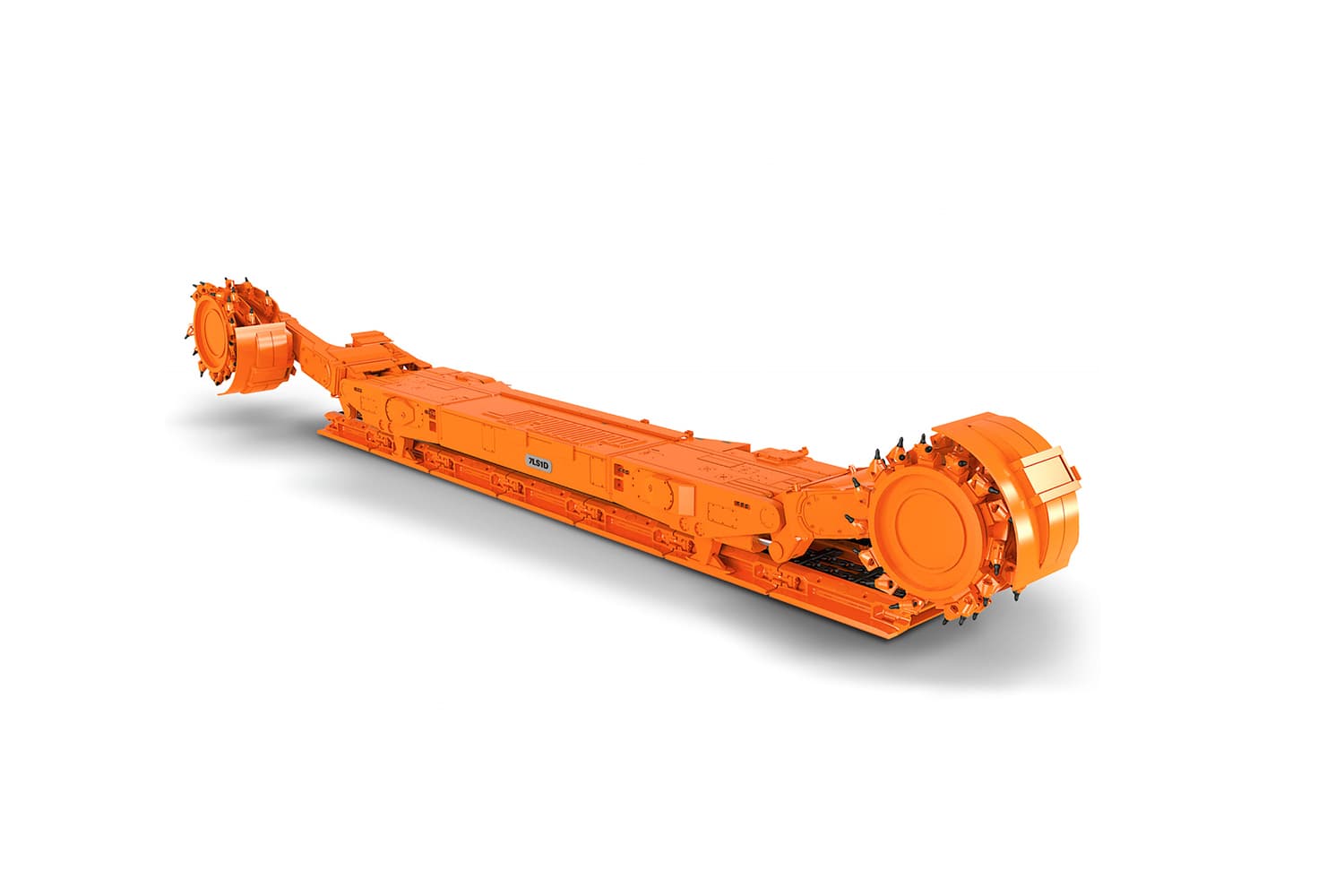

Shearers
رقم القطعة: KOMATSU-SHEARERS
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Shearers
المواصفات
| Pump motors (HP) | 2 @ 15 - 2 @ 28 |
|---|---|
| Cutting height (ft) | 4.5 - 14.8 |
| Cutting height (m) | 1.5 - 4.5 |
| Machine weight (tonnes) | 52 - 82 |
| Machine weight (tons) | 57.5 - 90.5 |
| Haulage pull (kN) | 800 - 1 100 |
| Haulage pull (tons) | 90 - 112.5 |
| Machine height (m) | 1.0 - 2.1 |
| Machine height (ft) | 3.3 - 6.75 |
| Frame thickness (in) | 20.5 - 23.6 |
| Frame thickness (mm) | 521 - 600 |
| Maximum haulage speed (m/min) | 30 |
| Maximum haulage speed (ft/min) | 98 |
| Pump motor (kW) | 2 @ 11 - 2 @ 21 |
| Haulage motor (HP) | 2 @ 87 - 2 @ 148 |
| Haulage motor (kW) | 2 @ 65 - 2 @ 110, 150 |
| Lumpbreaker motor (kW) | 2 @ 120, 2 @ 120, 190, 2 @ 600 |
| Lumpbreaker motor (HP) | 1 @ 161, 2 @ 804 |
| Available ranging arms at 50 Hz (HP) | J525F / 818 ; J750A / 1006, 1153 (7LS2B); J525F / 818 ; J750A / 1006, 1153 (7LS5B) |
| Available ranging arms at 50 Hz (kW) | J525F / 610 ; J750A / 750, 860 (7LS2B); J525F / 610 ; J750A / 750, 860 (7LS5B) |
| Available ranging arms at 60 Hz (kW) | J525H / 675 ; J750A / 750 (7LS2B); J525H / 675 ; J750A / 750 (7LS5B) |
| Available ranging arms at 60 Hz (HP) | J525H / 905 ; J750A / 1006 (7LS2B); J525H / 905 ; J750A / 1006 (7LS5B) |
