John Deere

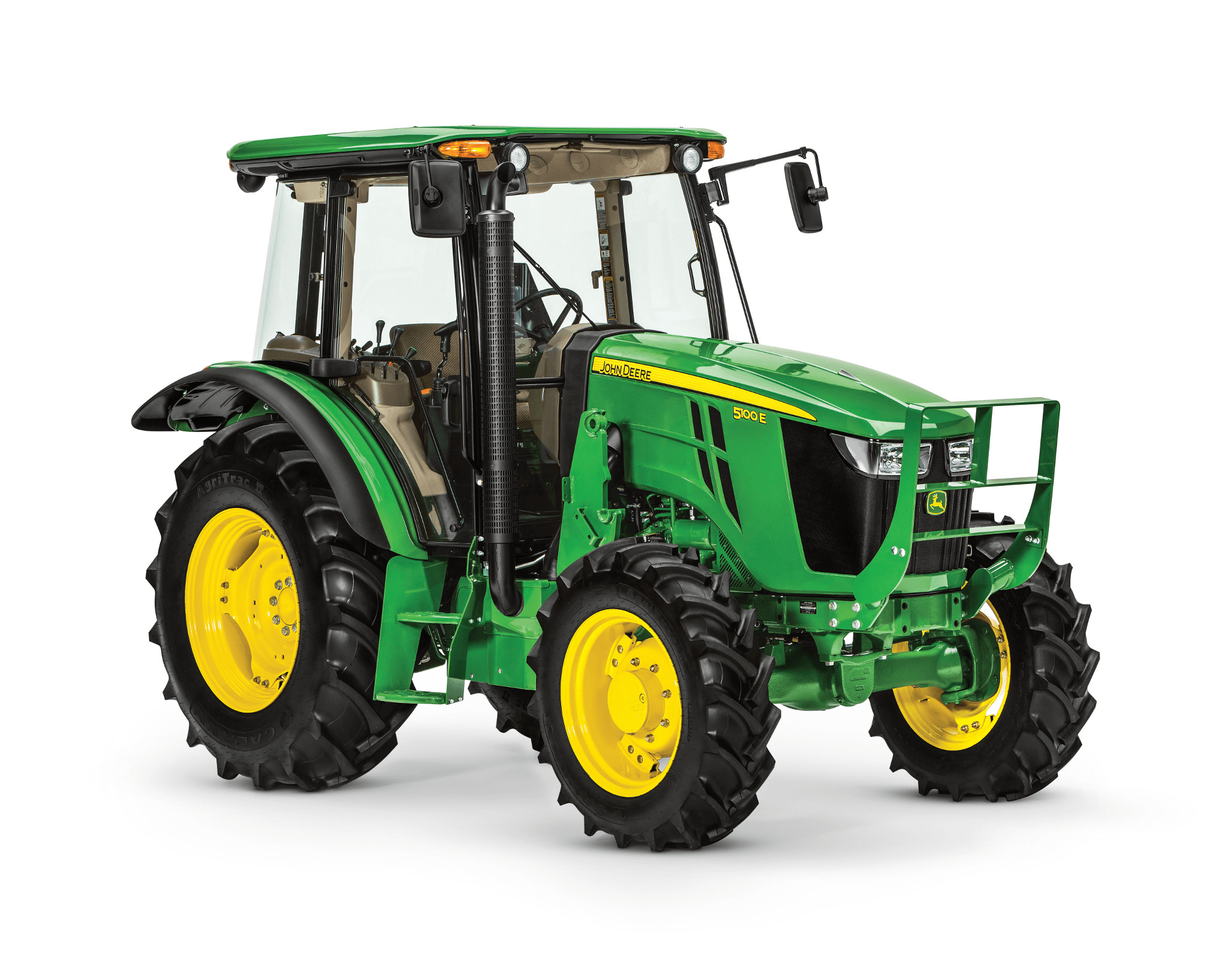

5100E Cab Tractor

Name: 5100E Cab Tractor
Brand: John Deere
SKU: JOHNDEERE-697RP

رقم القطعة: JOHNDEERE-697RP

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

5100E Cab Tractor

المواصفات

Model	5100E Cab
Base Code	697RP
Division	tractors
Product Family	utility-tractors
FUEL SYSTEM / Fuel type	Diesel
DIMENSIONS / Overall Length	159.13 in. (4,042 mm)
DIMENSIONS / Wheelbase	92.5 in. (2,350 mm)
FUEL SYSTEM / Capacity	30 U.S. gal. (114 L)
TIRES / Rear	18.4-30 R1 bias
TRANSMISSION / Type	PowrReverser 12F/12R; eHydro PowrReverser 12F/12R; eHydro PowrReverser 12F/12R; eHydro PowrReverser 24F/12R Hi-Lo
Engine Horsepower	100 hp (74.6 kW)
Rear Hitch Lift Capacity	4,630 lb. (2,100 kg)
PowerTech™ Engine Type	4 cylinders
2WD or MFWD	MFWD
OPERATOR STATION OPTIONS / Open operator station (OOS)	●
OPERATOR STATION OPTIONS / Premium cab	●
ENGINE / Type of John Deere engine	PowerTech 4045 (4.5L) PWL
ENGINE / Rated engine horsepower¹³	100 hp (74.6 kW)
ENGINE / Aftertreatment type	DOC/SCR
FUEL SYSTEM / Fuel tank	25 U.S. gal. (94.6 L)
FUEL SYSTEM / DEF tank capacity	3.17 U.S. gal. (12.0 L)
HYDRAULICS / Pump rated	22.5 gpm (85.1 L/min)
HYDRAULICS / output¹⁴	N/A
HYDRAULICS / Number of	Two
HYDRAULICS / rear SCVs	Three
HYDRAULICS / mid SCVs	Up to three
TRANSMISSION / Reverser	Yes
TRANSMISSION / Clutch (wet/dry)	Wet
REAR PTO / PTO type	Standard: 540/540E; N/A Optional: 540/1,000 N/A
REAR PTO / Rated PTO PR/TSS horsepower¹³	85 hp (63.4 kW)
REAR PTO / eHydro	N/A
REAR PTO / Max. PTO PR/TSS horsepower	N/A
REAR PTO / Hitch category	Cat. 2; convertible to 1
REAR PTO / Rear hitch lift capacity¹⁵	4,630 lb. (2,100 kg)
DIMENSIONS / Approx. 2WD	N/A N/A
DIMENSIONS / shipping weight MFWD	7,275 lb. (3,300 kg) 8,150 lb. (3,700 kg)
TIRES / Turning radius	N/A
TIRES / with brakes	14.3 ft (4.36 m)
TIRES / Turning radius without	N/A
TIRES / brakes	11.6 ft (3.54 m)
OPERATOR’S STATION / Rollover protective structure	OOS: foldable
OPERATOR’S STATION / Cab options	Standard; premium
OPERATOR’S STATION / Seat	Mechanical Air-suspension
POWERTRAIN WARRANTY¹⁶ / Duration	5 years / 2,000 hours, whichever comes first
TRANSMISSION OPTIONS / PowrReverser™ (PR)	●
OPERATOR STATION OPTIONS / Standard cab	●
