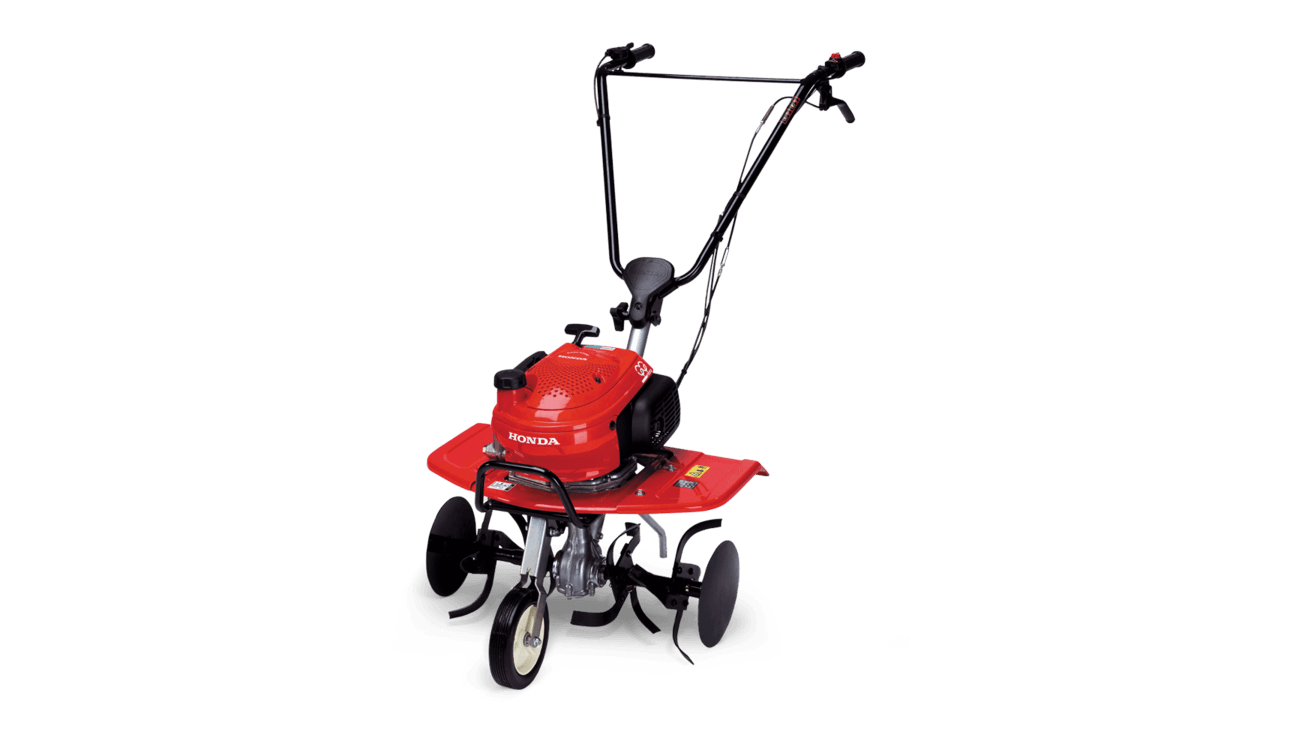

F220
المواصفات
| Dry weight (kg) | 30 |
|---|---|
| Engine Displacement (cc) | 57.3 |
| Engine net power (kW/rpm) | 1.5/4,800 |
| Fuel tank capacity (Litres) | 0.7 |
| Engine oil capacity (Litres) | 0.3 |
| Engine | 4-stroke OHC |
| Engine Model | GXV57 |
| Transmission | Epicyclic gearing |
| Model | F220 |
| Product Type | tillers |
| Product Family | mini |
| Max tilling width (mm) | 545 |
| Max tilling depth (mm) | 280 |
| Forward tool rotation speed (rpm) | 130 rpm |
| Dimension (L x W x H) (mm) | 1,280 x 615 x 1,035 |
| Sound pressure at operators ears (dB(A)) | 75 |
| Guaranteed sound power level (dB(A)) | 92 |
| Vibration (m/sec²) | 6.4 |
| Forward speeds | 1 |
| Rotors/tines supplied | 4 x 4 tooth digging tines |
| Wheels | Front Transport |
| De-thatcher / scarifier | Optional |
| Starter | Recoil |
| Drive clutch | Manual - centrifugal |
| Foldable handle | Yes |
| Side discs | Yes |
| Ridger | Optional |
| Final transmission | Pinion & bevel gear |
| Height adjustable handle | Yes |
| Swing handle | Yes |
