ORBIT
رقم القطعة: YAMAHA-ROB-ORBIT
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

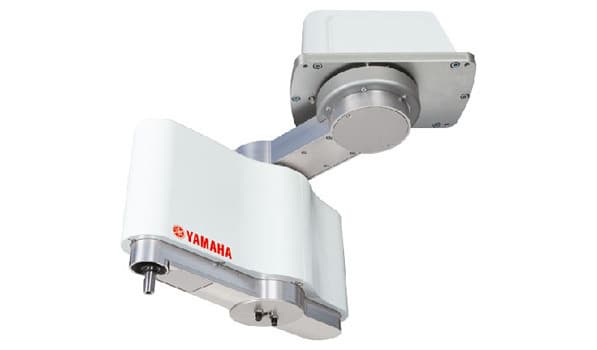

01 User: We want a smaller equipment footprint. Layout design freedom Featuring a ceiling-mount configuration with a wide arm rotation angle, the YK-TW can access any point within the full 1000 mm downward range. This eliminates all motion-related restrictions with regard to pallet and conveyor placement operations, while dramatically reducing the equipment footprint. The standard cycle time for moving 1-kg load horizontally 300 mm and up/down 25 mm is shortened by approximately 36 % compared to existing YAMAHA models. 02 User: We want a higher quality assembly system. Higher quality This is a much higher repeated positioning accuracy than that offered by a parallel-link robot. This was accomplished by optimizing the robot's weight balance through an extensive re-design of its internal construction. The lightweight yet highly rigid arm has also been fitted with optimally tuned motors to enable high accuracy positioning. 03 User: We need to reduce our tact times. Higher productivity The Y-axis (arm 2) passes beneath the X-axis (arm 1) and it has a horizontal articulated structure, allowing it to move along the optimal path between points. Moreover, the optimized weight balance of the internal components reduces the cycle time by 36 % as compared to previous models. The standard cycle time for moving a 1-kg load horizontally 300 mm and up/down 25 mm is shortened by approx. 36 % compared to previous YAMAHA models. 04 User: We need to move heavy workpieces at high speeds. Suitable for a wide range of applications Handles loads up to 5 kg. Also accommodates arm-end tools which tend to be heavy, making it highly adaptable to various applications. 05 User: We want to reduce the height of our equipment. Smaller equipment footprint The YK-TW height is only 392 mm. This compact size enables more freedom in the equipment layout design. 06 User: Parallel-link robots require large frames which complicate installation… Easy installation An optional dedicated installation frame is
