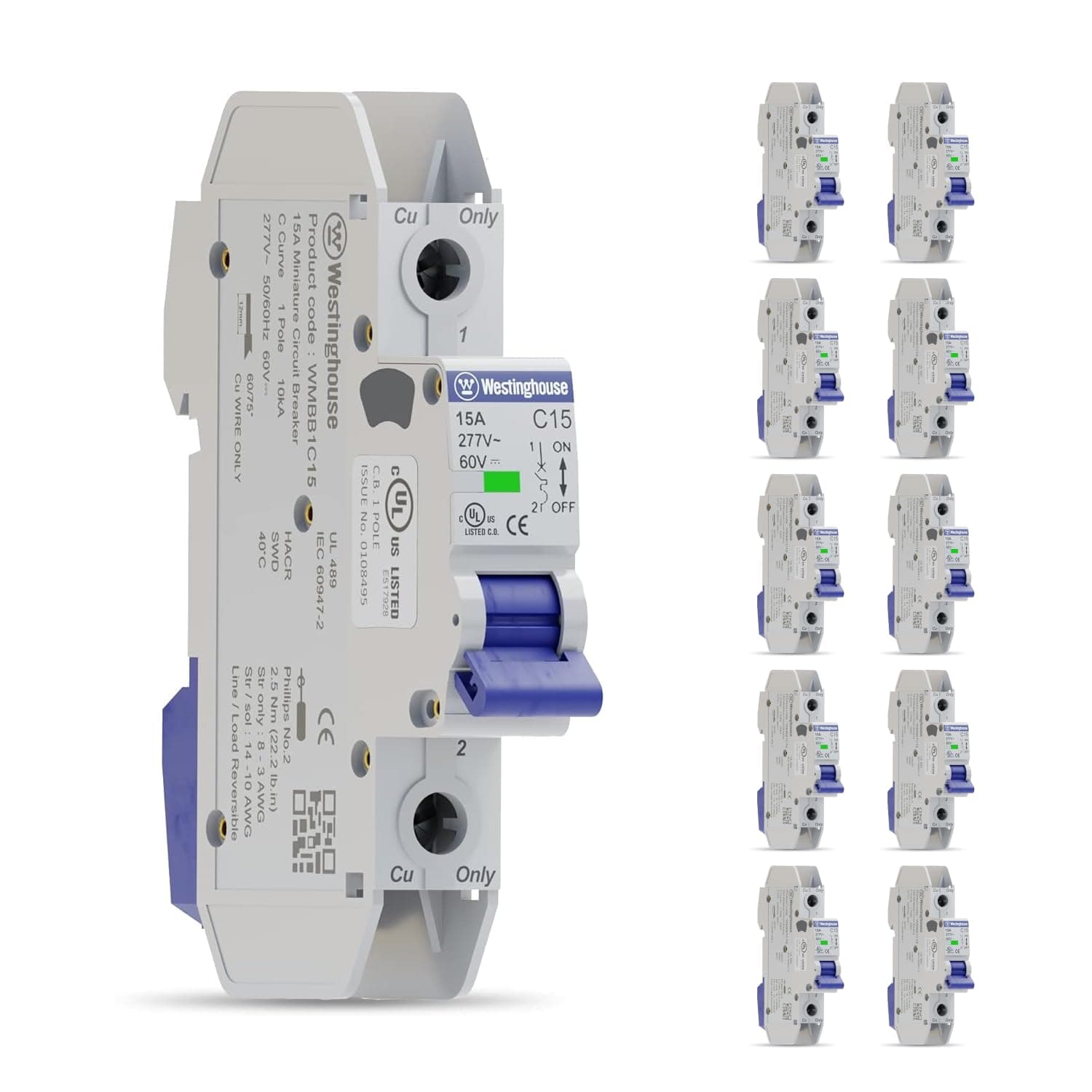

15A 1 Pole Miniature Circuit Breaker C Curve (Pack of 10)

Westinghouse

15A 1 Pole Miniature Circuit Breaker C Curve (Pack of 10)

رقم القطعة: WESTINGHOUSE-WMBB1C15-PACK-OF-10

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

UL489 Certified: Meets National Electrical Code standards to serve as primary thermal overload and short circuit protection. Approved by Underwriters Laboratories for Branch Circuit protection in US and Canada. UL File: E517928. Standard Installation: Mini Circuit Breaker snaps on 35mm DIN Rails or may be directly mounted to control panels. Typically used in motor control circuits, HVAC / HVACR Equipment, input output module protection for programmable logical controllers (PLC) and distributed control systems (DCS), relays and instrumentation among other applications. Specifications: 10 Pack,15 Amp 1 pole C Trip Curve MCB rated for 10kAIC 277V AC. Direct current rating is 60V DC. Westinghouse Model Number: WMBB1C15. Current Limiting: Westinghouse MCBs are designed to interrupt within the first half AC cycle compared to 1 to 2 AC cycles for conventional breakers. What’s Included: (10) Single pole miniature circuit breakers only. DIN rail and installation kit sold separately.

المواصفات

TypeMiniature circuit breaker
Current Rating15 Amp
Poles1
Trip CurveC
Breaking Capacity10 kAIC
AC Voltage Rating277V AC
DC Voltage Rating60V DC
Model No.WMBB1C15
StandardUL 489 certified
UL File No.E517928
Mounting35mm DIN rail or direct panel mount
