30A 3 Pole Miniature Circuit Breaker (D Curve)

Westinghouse

30A 3 Pole Miniature Circuit Breaker (D Curve)

رقم القطعة: WESTINGHOUSE-WMBB3D30

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

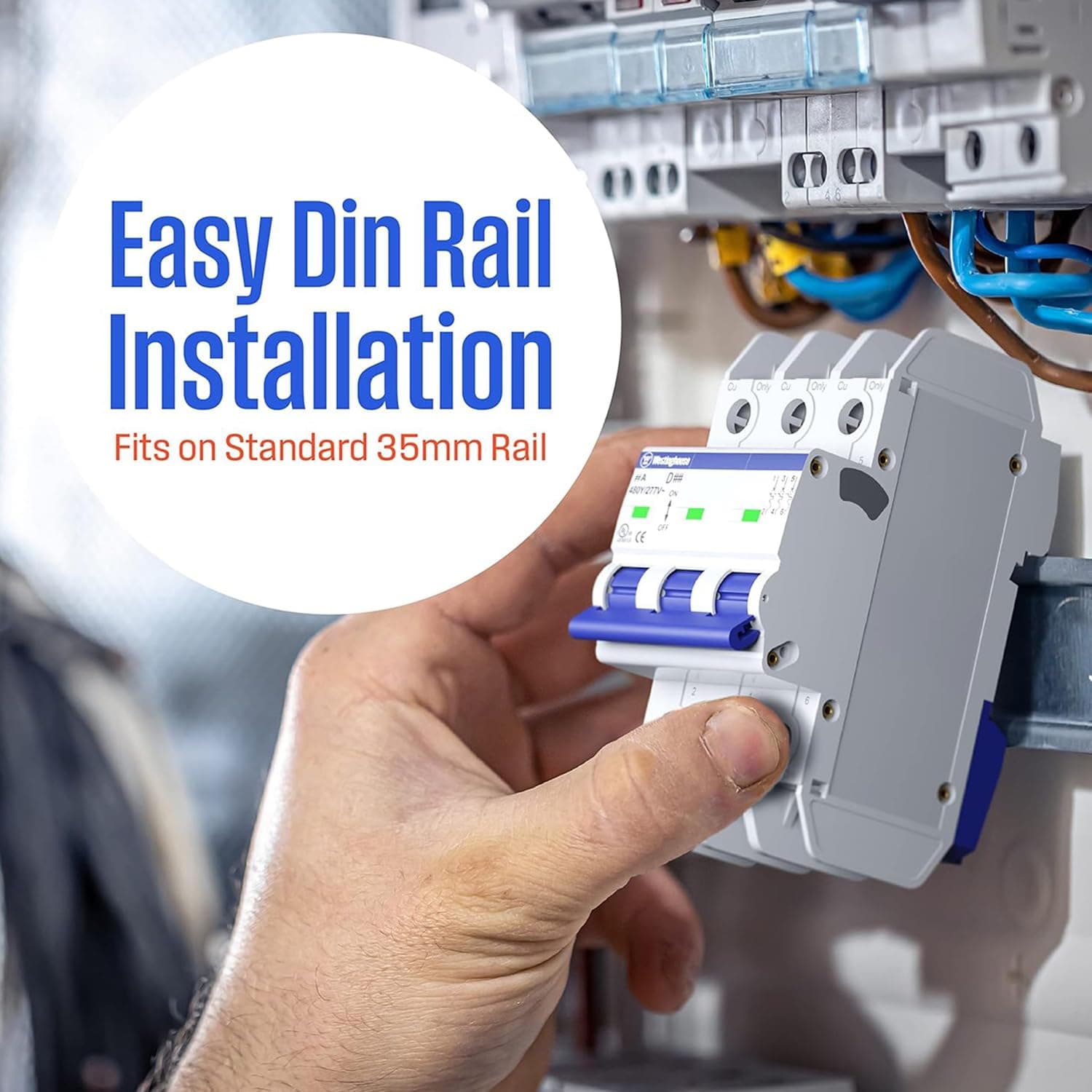

UL489 Certified: Meets National Electrical Code standards to serve as primary thermal overload and short circuit protection. Approved by Underwriters Laboratories for Branch Circuit Protection in US and Canada. UL File No. E517928. Standard Installation: Mini circuit breaker snaps on 35mm DIN rails or may be directly mounted to control panels. Typically used in branch circuit applications including motor control circuits, HVAC / HVACR equipment, and various OEM equipment. Specifications: 30 Amp / 3-Pole / D Curve MCB; rated for 10kAIC 480Y/277V AC with a direct current rating of 60V DC per pole. Westinghouse Model No. WMBB3D30. Current Limiting: Westinghouse MCBs are designed to interrupt within the first half AC cycle compared to 1 to 2 AC cycles for conventional breakers What’s Included: (1) Three pole miniature circuit breaker only. DIN rail and installation kit sold separately.

المواصفات

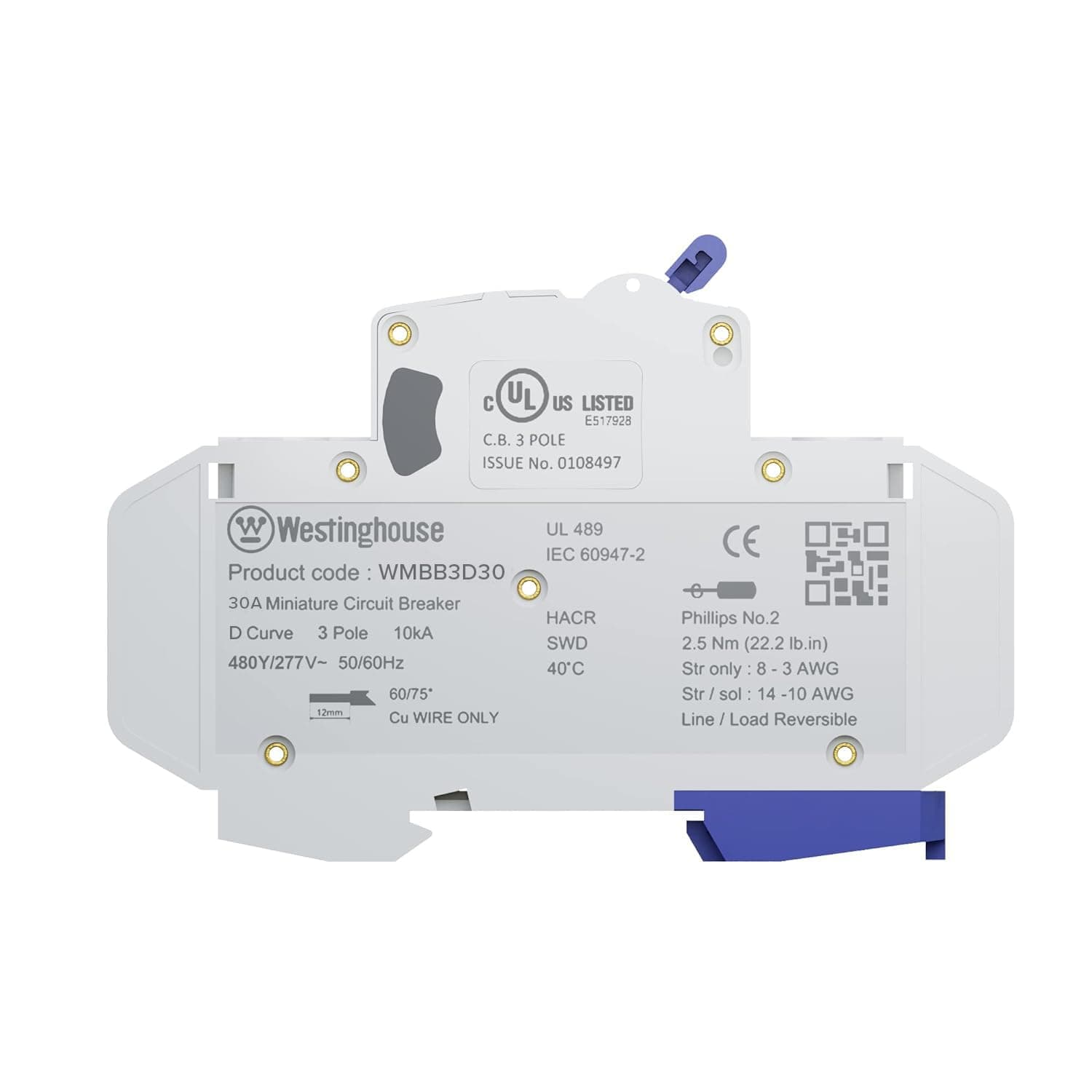

TypeMiniature circuit breaker
Current Rating30 Amp
Poles3
Trip CurveD
Breaking Capacity10 kAIC
AC Voltage Rating480Y/277V AC
DC Voltage Rating60V DC per pole
Model No.WMBB3D30
StandardUL 489 certified
UL File No.E517928
Mounting35mm DIN rail or direct panel mount
