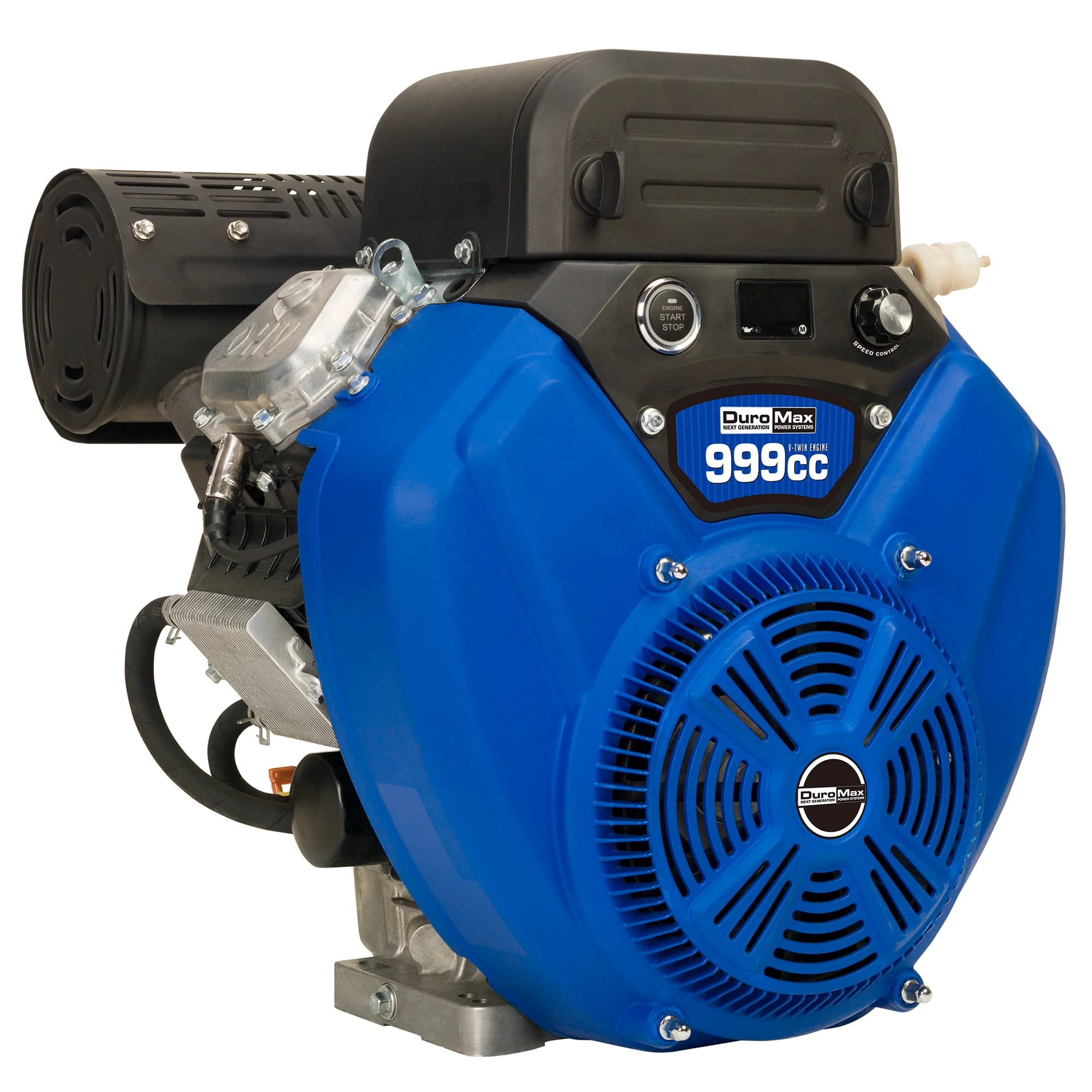

999cc 1-7/16-Inch Shaft V-Twin Electric Start Gasoline Engine

DuroMax Power Equipment

999cc 1-7/16-Inch Shaft V-Twin Electric Start Gasoline Engine

رقم القطعة: DUROMAX-XP35HPE

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

999cc 1-7/16-Inch Shaft V-Twin Electric Start Gasoline Engine

المواصفات

ManufacturerDuroMax Power Equipment
Part #XP35HPE
UPC811640016463
Warranty3 Year
What's in the Box?DuroMax XP35HPE Engine, Compatible Muffler, and Owner's Manual
ModelXP35HPE
Product Typeengine
Engine Type4-Stroke
Valve TypeOHV
Engine Cooling TypeForced Air
Displacement999cc
Bore90mm
Stroke78.5mm
Max Output4000 RPM
Max Torque58 ft-lbs (78 N.m.)@ 2500RPM
Compression Ratio8.6:1
Shaft OrientationHorizontal
Shaft Size1-7/16" Diameter, 4.6" Long, 3/8" x 3.5" Keyway
Shaft End5/8" 18UNF-2B
Shaft RotationCounter Clockwise
Measurement from Center of Shaft to Base6.1"
Fuel TypesGasoline
Fuel Delivery SystemCarburetor
Starting TypePush Button Start
Cast Iron SleeveYes
Bearing TypeStainless Steel Needle Bearings
Oil Cooling TypePressure and Splash
Oil Capacity83.2 fluid oz.
Recommended Oil10W-30
Recommended Oil TypesBlended, Conventional, or Synthetic
Product Dimensions19.7"-Long x 20.3"-Wide x 22"-High
Product Weight157-lbs
EPA CertifiedYes
Electric StartYes
Oil Filter Part NumberFRAM PH4967, STP S4967
Product Dry Weight126-lbs
Wiring Diagram(View PDF)
