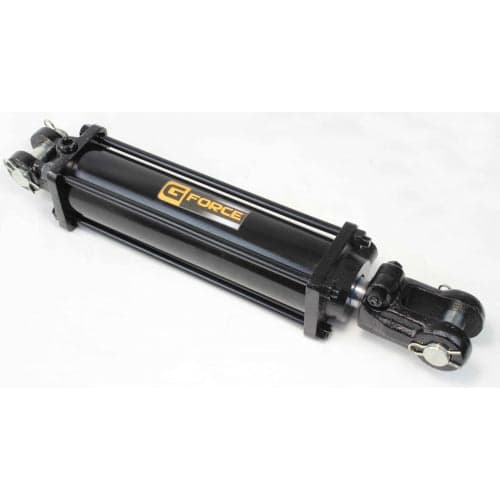

11462 Tie Rod Cylinder 4x36

WEN

11462 Tie Rod Cylinder 4x36

رقم القطعة: WEN-11462

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

11462 4" Bore, 36" Stroke, Tie Rod Hydraulic Cylinder Designed for double acting applications Standard black color All seals manufactured to US specification 100% Hydro-pressure test Chrome plated rod surface treatment Bore x Stroke (inch) Shaft Diam, (inches) Center to Center of Pin (Retracted, inches) Center to Center of Pin (Extended, inches) Ports (NPTF) Port Thread (SAE) Weight (lbs) Rated Pressure (psi) Max. Pressure (psi) 4X36 2 46 1/4 82 1/4 1/2" NPTF 108 2500 3850 Dimensional Data in Inches A B C E G H I J M P Q R S T V W 10.25 0.244 1/2" NPTF 2.625 2.625 1.125 1.125 2.125 2 16 1.250"-12 UNF 1 2.250 2.250 4.920 4.920 For CA residents, click here for Proposition 65 information
