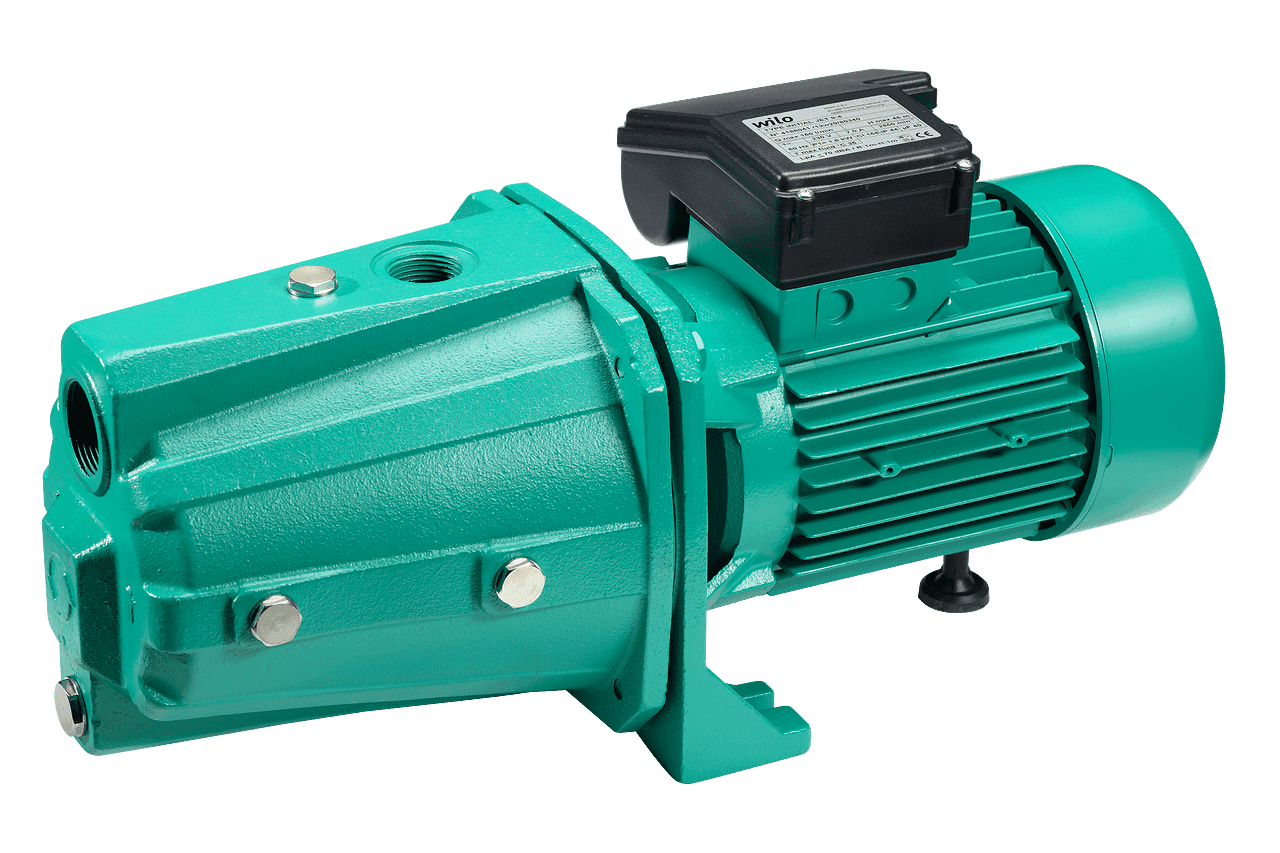

INITIAL JET 9-4/220-50

Wilo

INITIAL JET 9-4/220-50

رقم القطعة: wilo-4262295

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Design Self-priming multistage centrifugal pumps Application - Pumping water from wells - Filling, pumping empty, transferring by pumping, irrigation and sprinkling - As emergency pump for overflows Equipment/function - Single-phase motor - Thermal motor protection switch Technical data - Mains connection 1~220 V, 50 Hz, 1~230 V, 50 Hz - Inlet pressure max 2 bar - Fluid temperature max. +5 °C to +35 °C - Max. operating pressure 6 bar - Max. negative suction head: 8 m - IP rating IP44 - Connection on the suction and discharge side G1 / G1; (Jet 9-4: G1¼ / G1) Materials - Pump housing: Grey cast iron EN-GJL 200 - Impeller: Stainless steel 1.4301 (AISI 304); except Jet 3-4: Noryl - Shaft: Stainless steel AISI 304 - Mechanical seal: Ceramic/carbon/NBR - Diffuser/injector: Noryl - Gaskets: NBR Scope of delivery - Pump - Installation and operating instructions
