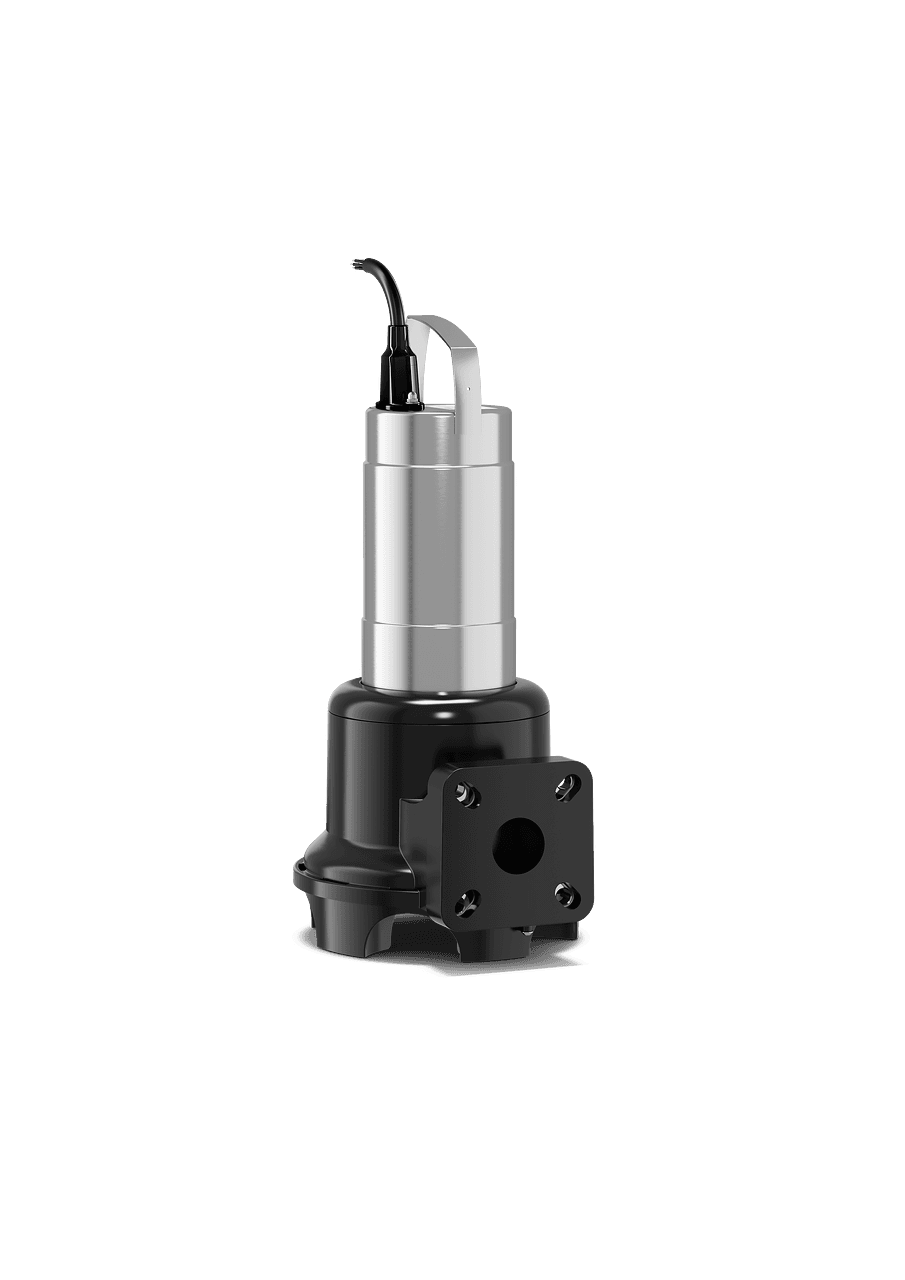

Rexa UNI-V05B/M008-523/A

Wilo

Rexa UNI-V05B/M008-523/A

رقم القطعة: wilo-6097116

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Design Submersible pump for stationary and portable wet installation in intermittent operation. Equipment/function - Thermal motor monitoring with bimetallic sensor - Single-phase AC motor with self-switching thermal motor monitoring - Single-phase AC motor with integrated condenser - Different versions: - Version “P”: with plug - Version “A”: with float switch and plug - Version “O”: bare cable ends Technical data - Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz - Submerged operating mode: S1 - Non-immersed operating mode: - Rexa UNI ... A/ ...: S2-15 min; S3 10% - Rexa UNI ... B/ ...: S2-15 min; S3 10% - Rexa UNI ... K/ ...: S1 - IP rating: IP68 - Insulation class: F - Fluid temperature: 3 … 40 °C (37 … 104 °F) - Fluid temperature, max. 60 °C (140 °F) for 3 min Materials Wilo-Rexa UNI-V05 ... A/ ... - Hydraulics housing: PP-GF30 - Impeller: PP-GF30 - Motor housing: 1.4301 (AISI 304) - Cooling shroud: − - Shaft end: 1.4401 (AISI 316) - Seal on the pump side: SiC/SiC - Seal on the motor side: C/Cr - Static seal: NBR (nitrile) Wilo-Rexa UNI-V05 ... B/ ... - Hydraulics housing: PP-GF30 - Impeller: PP-GF30 - Motor housing: 1.4401 (AISI 316) - Cooling shroud: − - Shaft end: 1.4401 (AISI 316) - Seal on the pump side: SiC/SiC - Seal on the motor side: C/Cr - Static seal: NBR (nitrile) Wilo-Rexa UNI-V06 ... A/ ... - Hydraulics housing: PP-GF30 - Impeller: PP-GF30 - Motor housing: 1.4301 (AISI 304) - Cooling shroud: − - Shaft end: 1.4401 (AISI 316) - Seal on the pump side: SiC/SiC - Seal on the motor side: C/Cr - Static seal: NBR (nitrile) Wilo-Rexa UNI-V06 ... B/ ... - Hydraulics housing: PP-GF30 - Impeller: PP-GF30 - Motor housing: 1.4401 (AISI 316) - Cooling shroud: − - Shaft end: 1.4401 (AISI 316) - Seal on the pump side: SiC/SiC - Seal on the motor side: C/Cr - Static seal: NBR (nitrile) Wilo-Rexa UNI-V06 ... K/ ... - Hydraulics housing: PP-GF30 - Impeller: PP-GF30 - Motor housing: 1.4401 (AISI 316) - Cooling jacket: 1.4401 (AISI 316) - Shaft end: 1.4401 (AISI 316) - Seal on the pump side: SiC/SiC - Seal on the motor side: C/Cr - Static seal: NBR (nitrile) Scope of delivery - Pump - Installation and operating instructions
