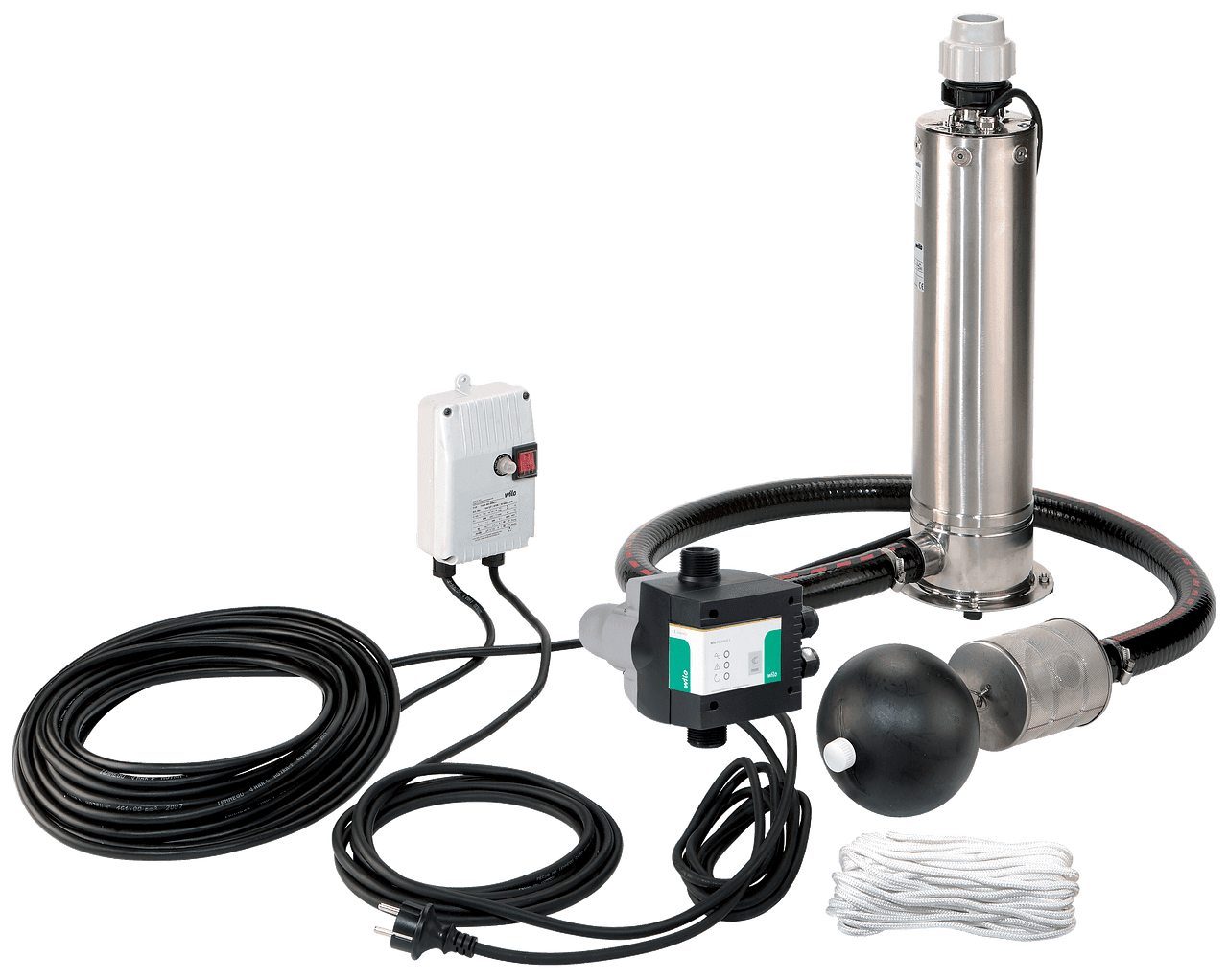

Sub TWI 5-SE-306EM-PnP/3
رقم القطعة: wilo-2543633
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Design Water supply system with rainwater storage tank pump, control and complete accessories Application For pumping rainwater with a maximum sand content of 50 g/m³ from wells and rainwater storage tanks for irrigation, sprinkling and water supply. Equipment/function - For wet installation in tanks and rainwater storage tanks and for dry installation outside tanks and rainwater storage tanks - With hose and filter for connection to side inlet - With pedestal (including 4 vibration absorbers) for floor installation - Single-phase current motor with thermal motor protection and 20 m of connection cable - “HiControl” switchgear (IP55) with on/off switch, 2 m connection cable and CEE7/7 plug Technical data - Mains connection: 1~230 V, 50 Hz - Fluid temperature: 5 °C to 35 °C - Max. operating pressure: 10 bar - Max. sand content: 50 g/m3 - Max. immersion depth: 20 m - IP rating: IP68 - Connection on the discharge side: Rp 1¼ - Connection on the suction side: Rp 1¼ Materials - Housing: 1.4301 - Impeller: 1.4301 - Shaft: 1.4301 - Seal: - On the fluid side: SIC/SIC - On the motor side: Carbon/ceramic - Static: NBR Scope of delivery - Pump with 20 m connection cable, “HiControl” switchgear with 2 m connection cable and CEE7/7 plug - Fine filter - 1.5 m hose - Safety rope - Installation and operating instructions
