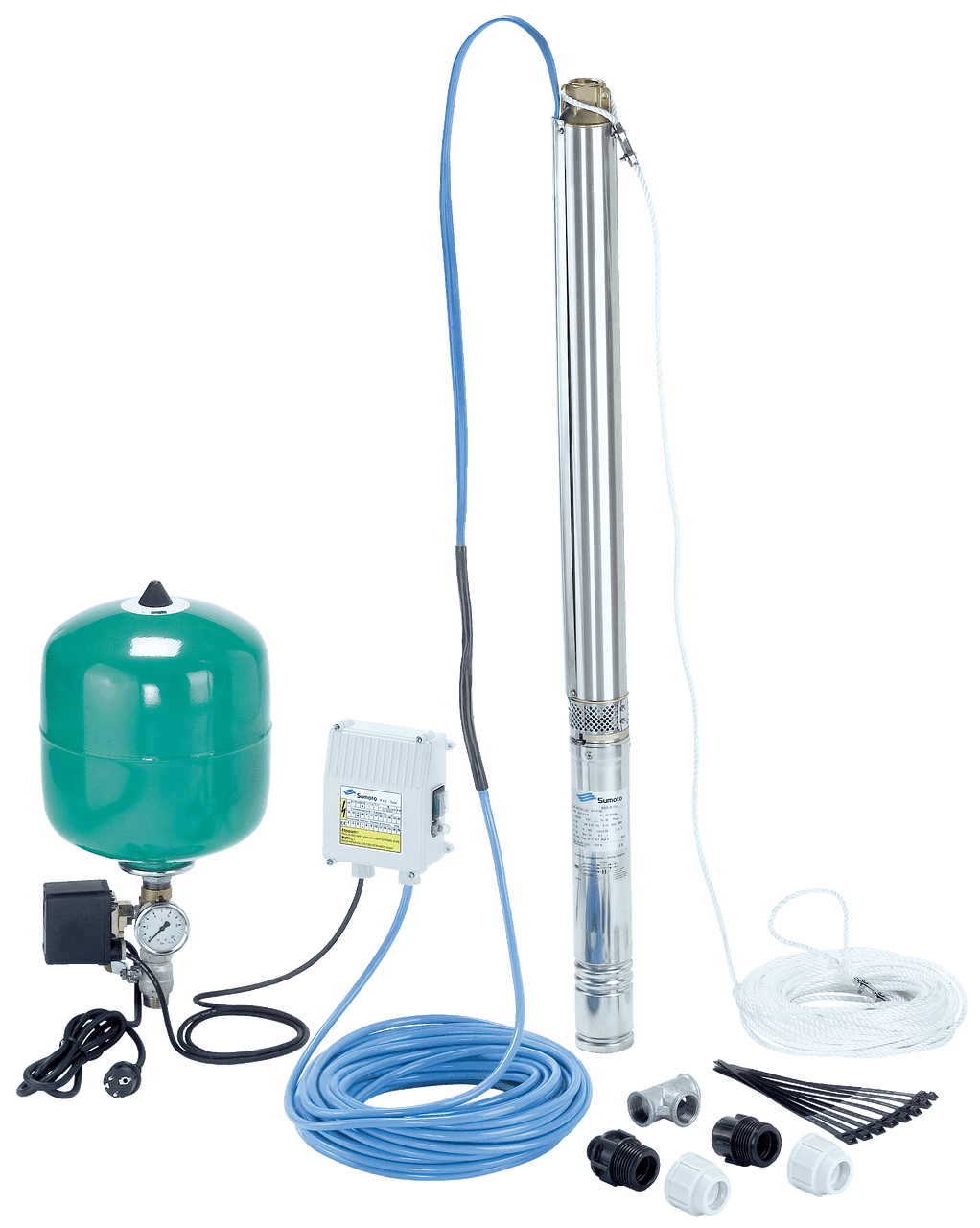

Sub TWU 3-0130-EM-PnP(1/FC)

Wilo

Sub TWU 3-0130-EM-PnP(1/FC)

رقم القطعة: wilo-4091650

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Design Water-supply unit with submersible pump, control and complete accessories Application For pumping rainwater and industrial water from boreholes and wells for sprinkling, irrigation and water supply. Equipment/function Wilo-Plug & Pump package Sub-I (1/FC) - Integrated non-return valve - On/off switch - Thermal motor protection - Wilo-HiControl 1 for automatic flow and pressure monitoring with integrated dry-running protection Wilo-Plug & Pump package Sub-II (2/PS) - Integrated non-return valve - On/off switch - Thermal motor protection - Wilo pressure switching 0 – 10 bar, including 18 l diaphragm expansion tank, manometer, shut-off device and pressure switch for automatic control Technical data - Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz - Submerged operating mode: S1 - Fluid temperature: 3 ... 35 °C - Minimum flow rate at motor: 0.08 m/s - Max. sand content: 50 g/m3 - Max. number of starts: 30/h - Max. immersion depth: 27 m - IP rating: IP58 - Discharge port: Rp1 Materials - Hydraulics housing: 1.4301 - Impellers: Polycarbonate - Hydraulic shaft: 1.4104 - Motor housing: 1.4301 - Motor shaft: 1.4305 Scope of delivery Wilo-Plug & Pump package Sub-I (1/FC) - Motor and hydraulics fully assembled - 30 m connection cable - Switch box with capacitor - Wilo-HiControl 1 - 30 m guy rope - Installation and operating instructions Wilo-Plug & Pump package Sub-II (2/PS) - Motor and hydraulics fully assembled - 30 m connection cable - Switch box with capacitor - 18 l diaphragm expansion tank - Pressure gauge - Shut-off device - Pressure switch - 30 m guy rope - Installation and operating instructions
