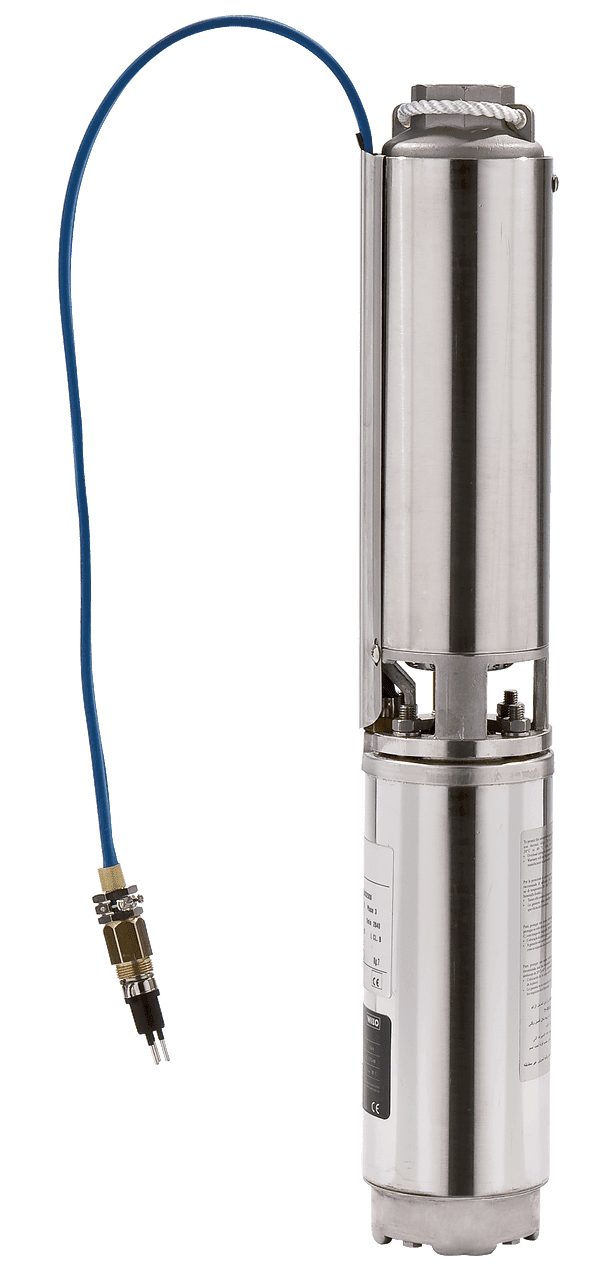

Sub TWU 4.02-20-EM-QC-C

Wilo

Sub TWU 4.02-20-EM-QC-C

رقم القطعة: wilo-6049365

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Design Multistage 4" submersible pump with quick-connecting cable in a jacketed design for vertical and horizontal installation Application For pumping rainwater and industrial water from boreholes and wells for sprinkling, irrigation and water supply. Equipment/function - Integrated non-return valve - Discharge port according to NEMA - Single-phase current motor with capacitor box with thermal motor protection Technical data - Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz - Submerged operating mode: S1 - Fluid temperature: 3 – 30 °C - Minimum flow rate at motor: 0.08 m/s - Max. sand content: 50 g/m3 - Max. number of starts: 20/h - Max. immersion depth: 200 m - IP rating: IP68 - Discharge port: Rp 1¼ – Rp 2 Materials - Hydraulics housing: 1.4301 - Impellers: Noryl - Hydraulic shaft: 1.4104 - Motor housing: 1.4301 - Motor shaft: 1.4305 Scope of delivery - Hydraulics + motor completely assembled - 1.5 or 1.75 m Quick Connect cable - Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch - Installation and operating instructions
