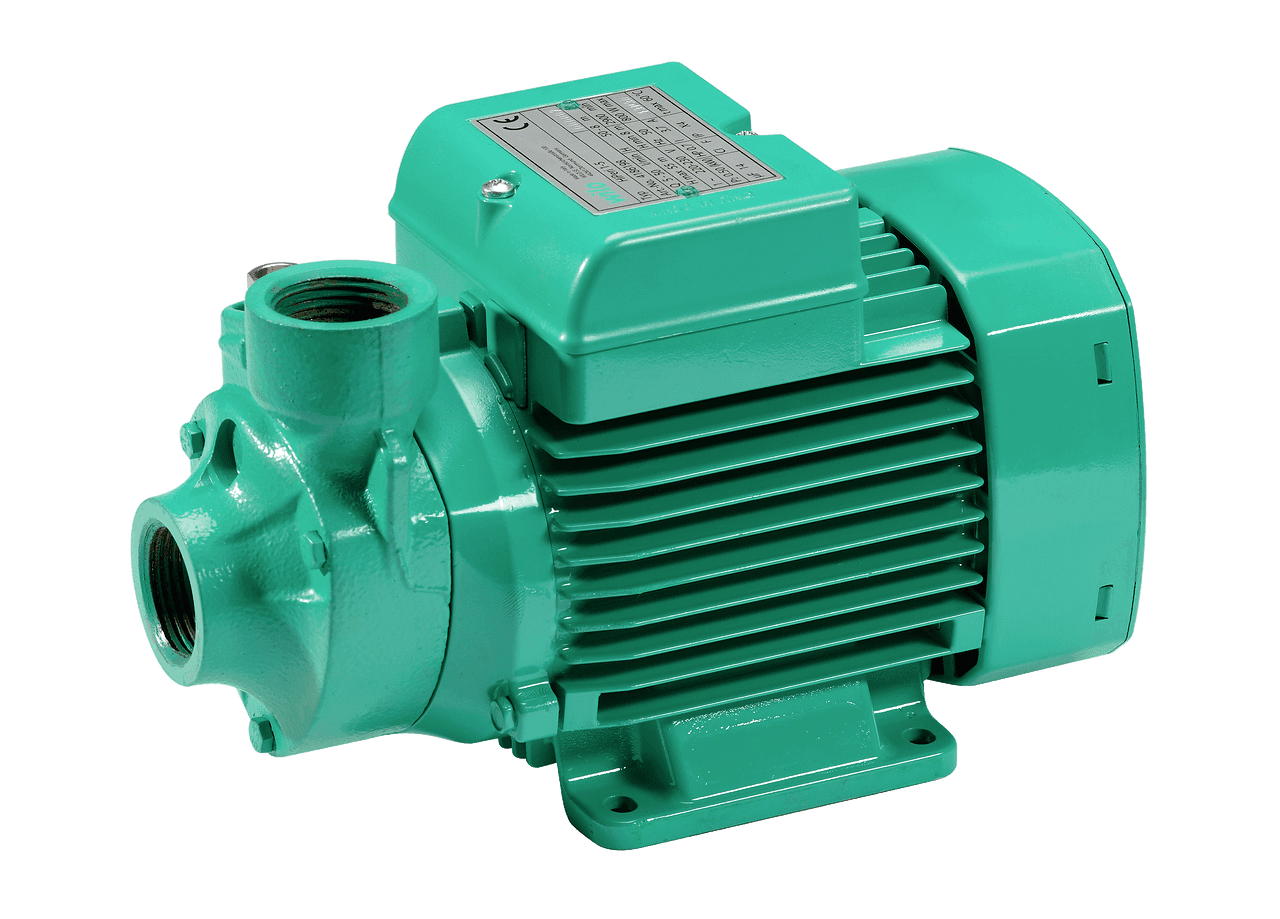

HiPeri 1-4

Wilo

HiPeri 1-4

رقم القطعة: wilo-4186197

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Design Non-self-priming peripheral pump Application - Water distribution/boosting - Raw water intake - Sprinkling and spraying - Rainwater utilisation Technical data - Max. fluid temperature: 60 °C - Ambient temperature: 40 °C - Max. operating pressure: 6.5 bar - Permanent or intermittent operation - Max. connections per hour: 20 - Suction head: up to 8m - Insulation class: 155 (F) - IP rating: IPX4 - Sound-pressure level: LpA < 70dBA Materials - Pump housing made of grey cast iron EN- GJL 200 - Lantern/motor bearing aluminium with brass inserts - Impeller brass CW617N - Shaft 1.4305 stainless steel - O-rings nitrile (NBR) - Mechanical seal made of carbon/ceramic/NBR Scope of delivery - Pump - Installation and operating instructions
