Flowserve

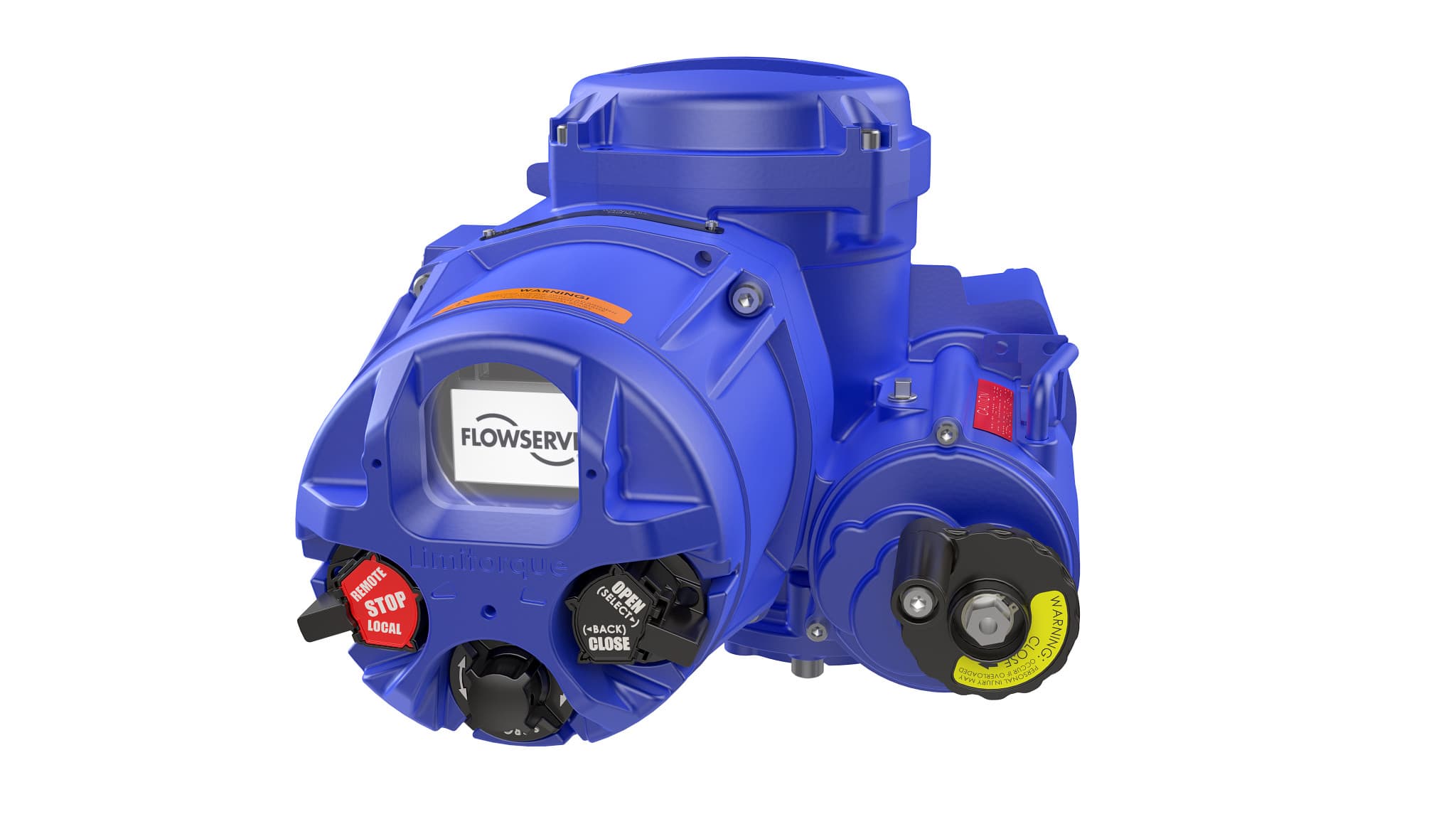

Non-Intrusive Quarter-Turn - QXb

Name: Non-Intrusive Quarter-Turn - QXb
Brand: Flowserve
SKU: flowserve-3626

رقم القطعة: flowserve-3626

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The Limitorque QX Series B (QXb) non-intrusive, quarter-turn electric actuator from Flowserve provides unmatched reliability and precision while lowering the cost of ownership in a range of demanding applications. This next-generation device builds on the proven, state-of-the-art Limitorque QX and MX actuator platforms to provide all the user-preferred features in a quarter-turn, smart actuator package. Features and benefits: - A simplified multi-language menu and an intuitive rotary navigation knob enable up to 50% faster commissioning than previous models. - A double-sealed IP68 enclosure with a separate terminal compartment and non-intrusive control knobs prevent dust and water ingress, eliminating the need for a heater. - Advanced brushless DC motors provide more accurate positioning and improve safety while permitting a global range of voltages (single-phase and three-phase ACV and DCV) to be connected without modification. - An independent handwheel disconnects the motor and enables manual override, even during motor operation. - A large, high-resolution LCD screen with adaptive brightness control is easy to read from up to 9 m (30 ft). It can be rotated 180 degrees for viewing in any orientation. - Oil bath lubrication eliminates re-greasing while enabling mounting and storage in any orientation. - The advanced display provides real-time torque graphs, alarm and event logs, and other data in high resolution. There’s also a real-time clock that time-stamps data logs for asset management functions and lifecycle analysis. - Easy electronics interchangeability enables the updating of older models, reducing costs and providing future-proofing; compatible with RedRaven, the complete internet of things (IoT) solution from Flowserve for condition monitoring and predictive analytics.

المواصفات

Brand line	Limitorque
Standards	AWWA C542 - Electric Motor Actuators for Valves; ASTM B117 - Standard Practice for Salt Spray Tests; UL1709
Configurations	QXMb - the multi-turn, non-intrusive electric valve actuator is a next-generation device that provide all the user-preferred features in a multi-turn, smart actuator package.; QX - the non-intrusive electric actuator is designed for a wide range of environmental applications in power, oil & gas, and water industries.; QXM - the limited multi-turn, non-intrusive electronic valve actuator is designed for limited, short stroke, light torque rising stem valve applications such as choke or control valves in the power, oil & gas, and water industries.
Torque	135 to 2,031 Nm (100 to 1,500 ft-lbs)
ΔT	-22 to 158°F
Torque (Highlights)	100-1500 ft-lb
Commission	50% faster
