Worthington® HDXN Between Bearings Pumps - Radially Split, Single Case
رقم القطعة: flowserve-3468
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Between bearing double suction single stage pump designed and built for process service. Features and benefits: - Centerline Supported heavy duty design offers optimum operation under high temperature and pressure. - Double suction impeller design reduces NPSH required. - Double volute casing minimizes radial load and shaft deflection.
المواصفات
| Brand line | Worthington |
|---|---|
| Standards | ISO13709 / API610 (BB2) |
| Size Range | 4 to 16 inch |
| Pressure Class Range | Pressure to 44 bar ( 639psi) |
| Flows to | 3200 m3/h (14080gpm) |
| Temperatures to | 430°C (806°F) |
| Pressures to | 44 bar (639 psi) |
| Heads to | 470 m (1542 ft) |
| Seating Material | S5; S6; S8; C6; A7; A8 |
منتجات مشابهة
طلمباتFlowserve
TKL™ EC Between Bearings Pump - Radially Split, Single Case
اطلب عرض سعر
Flowserve
Worthington® Radially Split-WTB Between Bearings Pump - Radially Split, Single Case
اطلب عرض سعر
Flowserve
Flowserve HED/HED - DS Between Bearings Pumps - Radially Split, Single Case
اطلب عرض سعر
Flowserve
Flowserve N-Seal Primary Pump Seal
اطلب عرض سعر
Flowserve

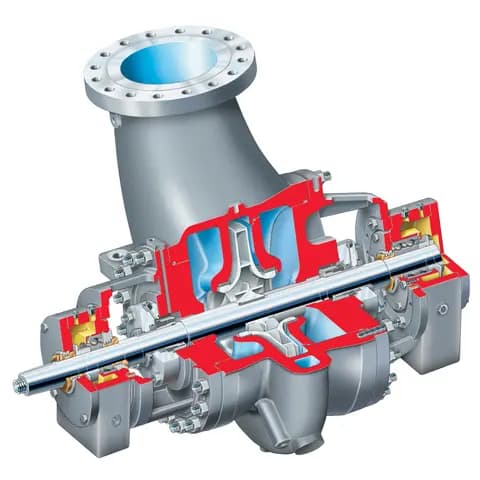

Flowserve HDX/HDX - TT Between Bearings Pump - Radially Split, Single Case
