Flowserve DVSR Nuclear Pump

Flowserve

Flowserve DVSR Nuclear Pump

رقم القطعة: flowserve-573

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

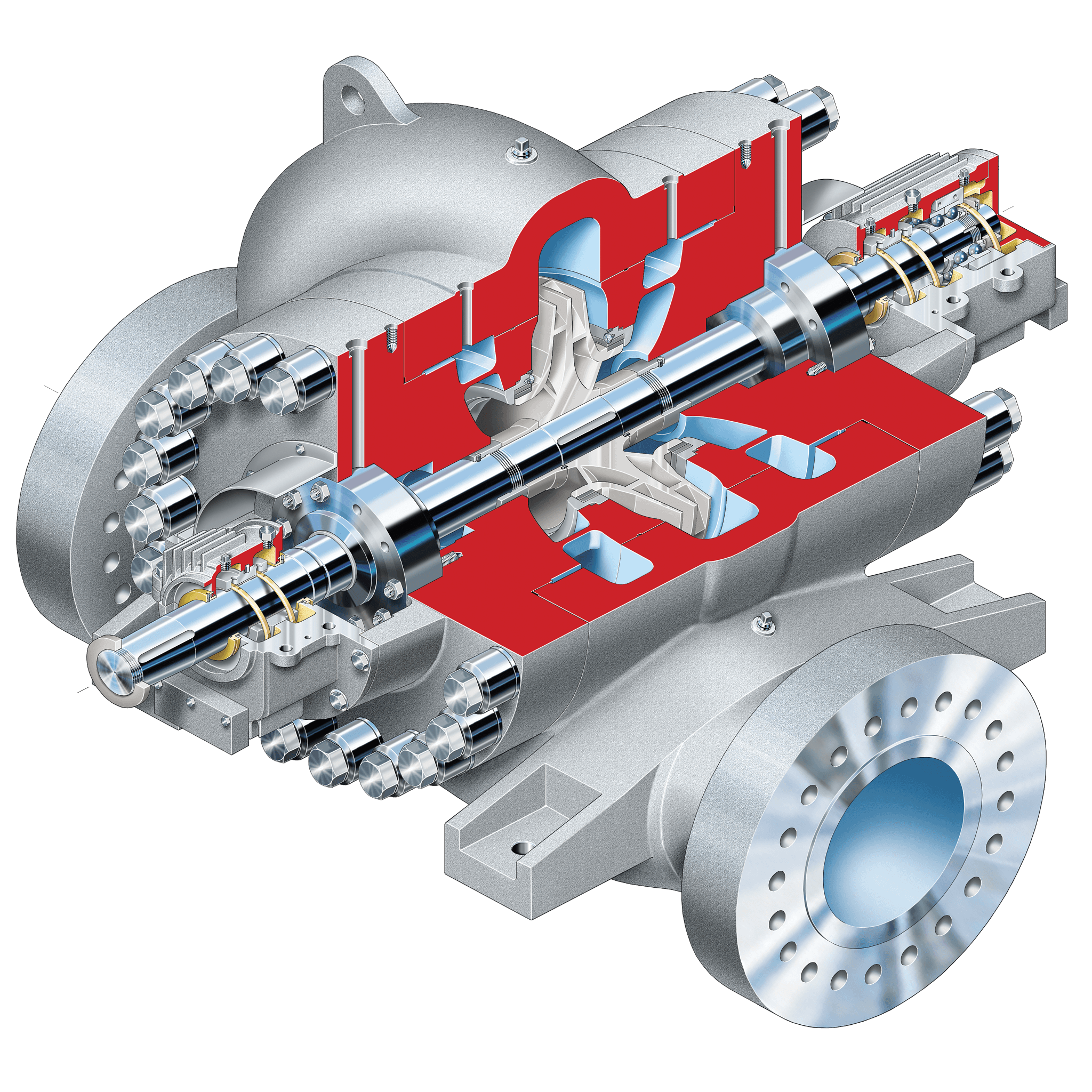

Engineered for reactor and steam generator feed applications, this pump meets ASME Section Vlll design standards. It is a proven performer in nuclear-rated services. Features and benefits: - Cast volute casing configuration. - Double cover design features include center line supported mounting, radially split casing and double suction impeller. - Sleeve radial and tilting pad thrust bearings are standard.

المواصفات

Brand lineFlowserve
StandardsASME Section VIII
Size Range6" to 12" discharge
Operating ParametersDischarge pressures to 100 bar (1470 psi); Power rating to 8000 kW (10 700 hp)
Flows to4535 m3/h (19 945 gpm)
Temperatures to210°C (410°F)
Speeds to6000 rpm
Heads to800 m (2625 ft)
